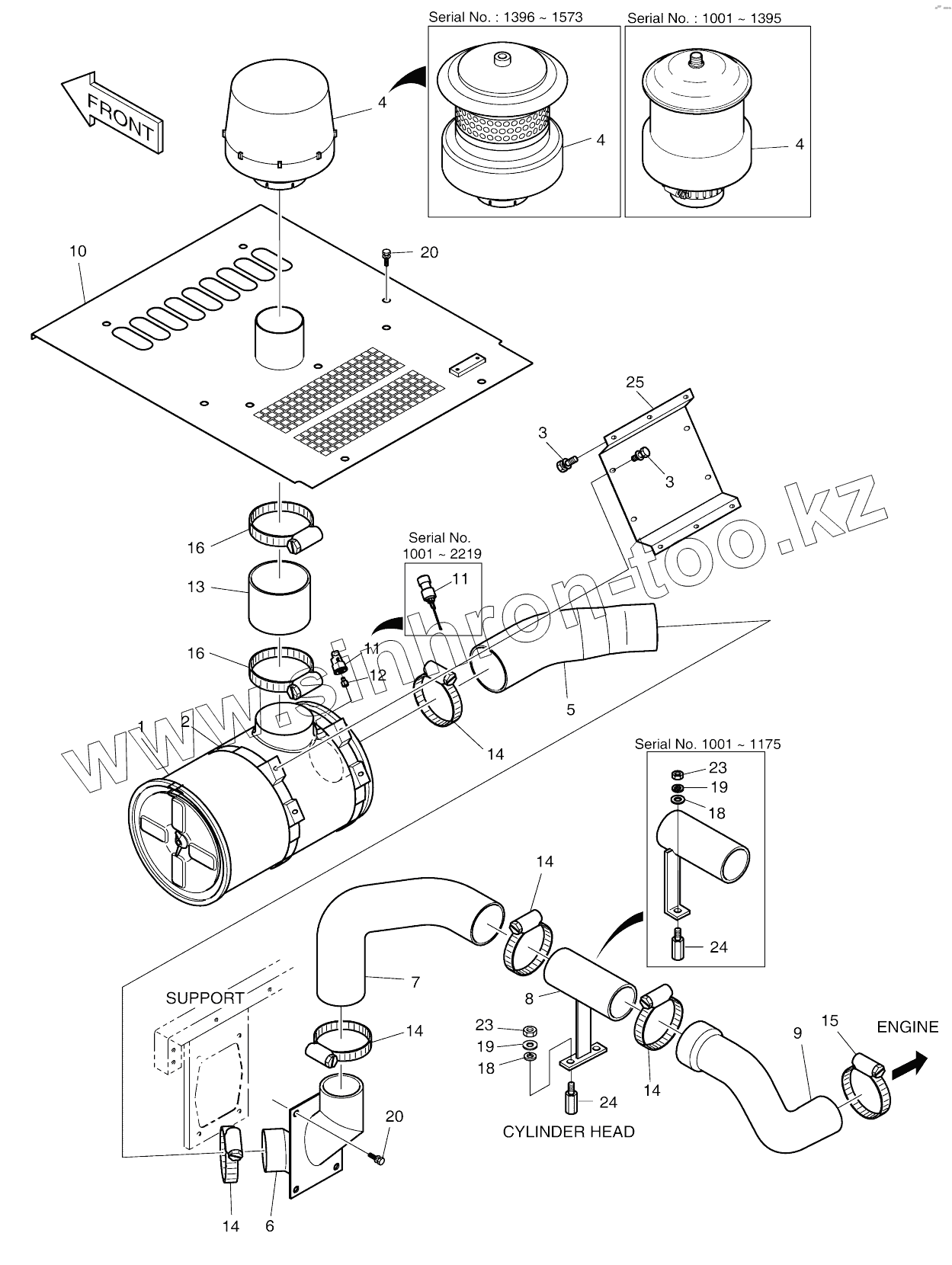

Каталог запасных частей к технике: Doosan SOLAR 255LC-V (DI EXP). AIR CLEANER ASSY
400414-00407
204-00048E
1
2
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
6
7
7
8
8
8
9
9
10
10
10
10
11
11
11
11
11
11
12
13
14
14
14
14
14
15
16
16
18
18
18
18
19
19
19
19
20
20
23
23
23
23
24
24
24
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 400414-00407 | 400414-00407 | Cleaner assy, air | |
| 204-00048E | 204-00048E | Air cleaner assy | |
| 1 | 2204-2012A | Air cleaner | |
| 2 | 2124-1552A | Band, air cleaner | |
| 3 | 2120-2196D2 | BOLT;SET M10X1.5X25 | |
| 4 | 2204-9032A | Pre-cleaner | |
| 4 | 2204-9032 | Pre-cleaner | |
| 4 | K1017883 | Pre-cleaner | |
| 4 | K1043471 | Pre cleaner | |
| 5 | 185-00309 | Hose, air | |
| 6 | 193-00584 | Pipe, air | |
| 7 | 185-00310 | Hose, air | |
| 7 | 185-00310A | Hose, air | |
| 8 | 193-00685 | Pipe, air | |
| 8 | 193-00814 | Pipe, air | |
| 8 | 193-00814A | Pipe, air | |
| 9 | 185-00311A | Hose, air | |
| 9 | 185-00311B | Hose, air | |
| 10 | 621-02040G | Cover | |
| 10 | 621-02040C | Cover | |
| 10 | 621-02040B | Cover | |
| 10 | 621-02040E | Cover | |
| 11 | 170-00004 | INDICATOR | |
| 11 | 800217-00100 | Indicator, dust | |
| 12 | 2181-2690 | Adapter, filter | |
| 13 | 185-00312 | Hose, air | |
| 14 | S8510143 | Clamp | |
| 15 | S8510092 | CLAMP;HOSE | |
| 16 | S8510168 | Clamp | |
| 18 | S5010613 | WASHER;PLAIN | |
| 18 | S5010613 | WASHER;PLAIN | |
| 19 | S5102603 | WASHER;SPRING M10 | |
| 19 | S5102603 | WASHER;SPRING M10 | |
| 20 | 2120-2196D9 | BOLT;SET M12X1.75X25 | |
| 23 | S4012633 | NUT M10X1.5 | |
| 23 | S4012633 | NUT M10X1.5 | |
| 24 | 2120-2165 | BOLT | |
| 24 | 2120-2165 | BOLT | |
| 25 | 621-02216 | Cover |
