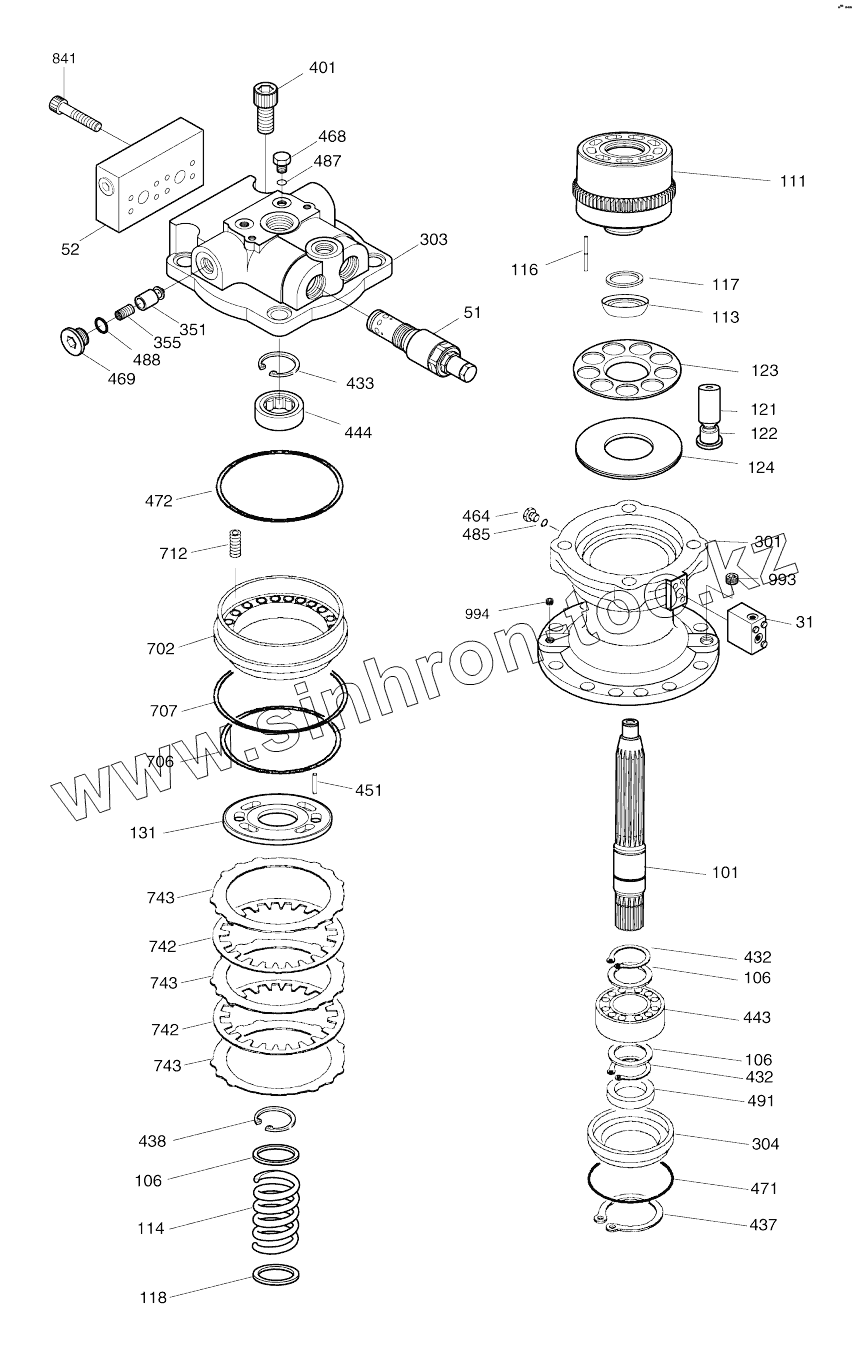

Каталог запасных частей к технике: Doosan SOLAR 210W-V. SWING MOTOR
443
485
485
472
471
469
468
464
451
444
487
438
437
433
432
432
401
355
351
351
304
712
K9002875A
K9002875
2401-9242KT
994
994
993
841
743
743
743
742
742
304
707
706
702
491
491
491
488
487
111
111
106
106
106
101
101
52
52
52
113
51
51
31
31
122
303
303
301
301
131
131
124
123
123
121
409-00009A
704502
118
117
116
116
114
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 443 | 225681 | BEARING;ROLLER | |
| 485 | S8000111 | O-RING | |
| 485 | 201689 | O-RING | |
| 472 | 212009 | O-RING | |
| 471 | 201630 | O-RING | |
| 469 | 108892 | PLUG;RO | |
| 468 | 108844 | PLUG;VP | |
| 464 | 108844 | PLUG;VP | |
| 451 | 212881 | PIN;SPRING | |
| 444 | 225680 | BEARING;ROLLER | |
| 487 | 201689 | O-RING | |
| 438 | 212014 | RING;SNAP | |
| 437 | 202558 | RING;SNAP | |
| 433 | 202599 | RING;SNAP | |
| 432 | 202608 | RING;SNAP | |
| 401 | 200741 | BOLT;SOCKET M20X2.5X45 | |
| 355 | 214337A | SPRING | |
| 351 | 424-00049A | Plunger | |
| 351 | 135309 | PLUNGER | |
| 304 | 113360A | Cover, front | |
| 712 | 211953A | SPRING;BRAKE | |
| K9002875A | K9002875A | Seal kit, swing motor | |
| K9002875 | K9002875 | Seal kit, swing motor | |
| 2401-9242KT | 2401-9242KT | SEAL KIT;SWING MOTOR | |
| 994 | 2181-1116D4 | PLUG | |
| 994 | 208276 | PLUG;PT | |
| 993 | 206699 | PLUG;PT | |
| 841 | 221795 | BOLT;SOCKET M10X1.5X55 | |
| 743 | 113365 | PLATE;SEPARATION | |
| 742 | 125812 | PLATE;FRICTION | |
| 304 | 113360 | COVER;FRONT | |
| 707 | 212010 | O-RING | |
| 706 | 212008 | O-RING | |
| 702 | 113363 | PISTON;BRAKE | |
| 491 | 401106-00181 | Seal, oil | |
| 491 | 238795 | Seal, oil | |
| 491 | 211952 | SEAL;OIL | |
| 488 | 201727 | O-RING | |
| 487 | S8000111 | O-RING | |
| 51-1 | 212333 | O-RING | |
| 111 | 150102-00438 | Block, cylinder | |
| 111 | 116635A | BLOCK;CYLINDER | |
| 106 | 113372 | SPACER | |
| 101 | 405-00013A | Shaft, drive | |
| 101 | 132528A | SHAFT;DRIVE F3 | |
| 52 | 410116-00375 | Swing reactionless valve | |
| 52 | 718828 | SWING REACTIONLESS VALVE | |
| 52 | 717520A | Swing reactionless valve | |
| 51-2 | 218395 | RING;BACK UP | |
| 113 | 113374B | BUSH;SPHERICAL | |
| 51 | 410127-00095 | Valve, relief | |
| 51 | 235886 | VALVE;RELIEF | |
| 31-2 | 201694 | O-RING | |
| 31-1 | 201757 | O-RING | |
| 31 | 410102-00024 | Valve, brake | |
| 31 | 710413A | VALVE;BRAKE | |
| 170303-00045A | 170303-00045A | Motor, swing | |
| 170303-00045 | 170303-00045 | Motor, swing | |
| 401-00086B | 401-00086B | Motor, swing | |
| 122 | 113352B | SHOE | |
| 303 | 110913-00267 | Casing, valve | |
| 303 | 135308 | CASING;VALVE | |
| 301 | 134635B | Casing | |
| 301 | 134635 | CASING | |
| 131 | 400901-00056 | Plate, valve | |
| 131 | 135306 | Plate, valve | |
| 124 | 113354C | PLATE;SHOE | |
| 123 | 223-00024A | Retainer | |
| 123 | 113353 | RETAINER | |
| 401-00086A | 401-00086A | MOTOR;SWING | |
| 121 | 113351 | PISTON | |
| 409-00009A | 409-00009A | Piston assy | |
| 704502 | 704502 | PISTON ASS'Y | |
| 118 | 113350 | SPACER;REAR | |
| 117 | 113376 | SPACER;FRONT | |
| 116 | 454-00007A | Rod, push | |
| 116 | 113375A | ROD;PUSH | |
| 114 | 211949A | SPRING;CYLINDER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
