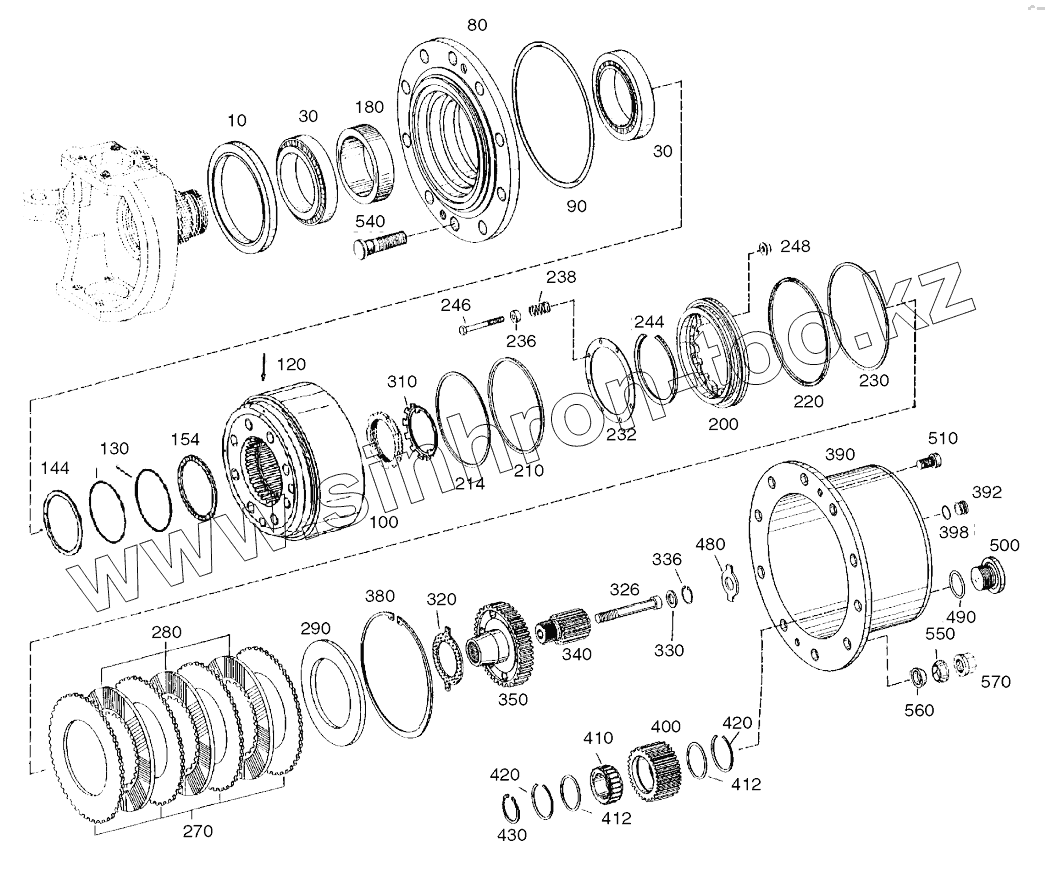

Каталог запасных частей к технике: Doosan SOLAR 210W-V. OUTPUT-FRONT AXLE (1001-2131)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
10
30
30
80
90
100
120
130
144
154
180
180
180
180
180
180
180
180
180
180
180
180
200
210
214
220
230
232
236
238
244
246
248
270
270
270
280
290
310
320
326
330
336
340
350
380
390
392
398
400
410
412
412
420
420
430
480
480
480
480
480
480
480
490
500
510
540
550
560
570
Позиция на иллюстрации Заводской номер детали Название детали
10 0734 309 281 Seal, shaft
30 0750 117 378 Bearing, roller
80 4472 320 094 Hub
90 0634 304 060 O-ring
100 4472 320 082 Carrier, ring gear
120 0631 405 028 Plug
130 0634 313 809 O-ring
144 0501 311 228 Ring, support
154 0501 311 229 Ring, support
180 0730 162 685 Bush
180 0730 162 687 Bush
180 0730 162 686 Bush
180 0730 162 684 Bush
180 0730 162 683 Bush
180 0730 162 235 Bush
180 0730 162 233 Bush
180 0730 162 232 Bush
180 0730 162 231 Bush
180 0730 162 230 Bush
180 0730 162 229 Bush
180 0730 162 234 Bush
200 4472 320 085 Piston
210 0734 317 180 U-ring
214 0750 112 094 Ring, support
220 0734 317 181 U-ring
230 0750 112 095 Ring, support
232 4472 320 072 Shim, support
236 4472 320 071 Sleeve, spring
238 0632 041 095 Spring, compr.
244 0630 513 184 Ring, snap
246 0636 010 041 Screw, hex.
248 0637 011 591 Nut, locking
270 4472 320 103 Disc, o.clutch
270 4472 320 105 Disc, o.clutch
270 4472 320 104 Disc, o.clutch
280 0501 314 382 Disc, i.clutch
290 4472 374 075 Shim, end
310 4472 320 055 Washer, tab
320 4472 321 031 Washer, thrust
326 0636 101 363 Screw, cap
330 0630 004 312 Ring, shim
336 0630 502 006 Ring, retaining
340 4472 375 005 Shaft, sun gear
350 4472 321 024 Carrier, disc
380 0630 502 011 Ring, retaining
390 4472 320 106 Carrier, planet
392 0636 302 003 Plug, screw
398 0634 306 523 O-ring
400 4472 320 099 Gear, planet
410 0750 118 195 Bearing, roller
412 0730 109 072 Washer
420 0630 513 080 Ring, snap
430 0630 501 035 Ring, retaining
480 0730 106 601 Washer, thrust
480 0730 106 600 Washer, thrust
480 0730 106 599 Washer, thrust
480 0730 106 598 Washer, thrust
480 0730 106 597 Washer, thrust
480 0730 106 596 Washer, thrust
480 0730 106 595 Washer, thrust
490 0634 306 519 O-ring
500 0636 302 012 Plug, screw
510 0636 104 074 Screw, cap
540 4472 319 214 Bolt, wheel
550 0630 307 005 Washer, spring
560 0750 101 083 Ring, centering
570 0637 018 026 Nut, wheel
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
