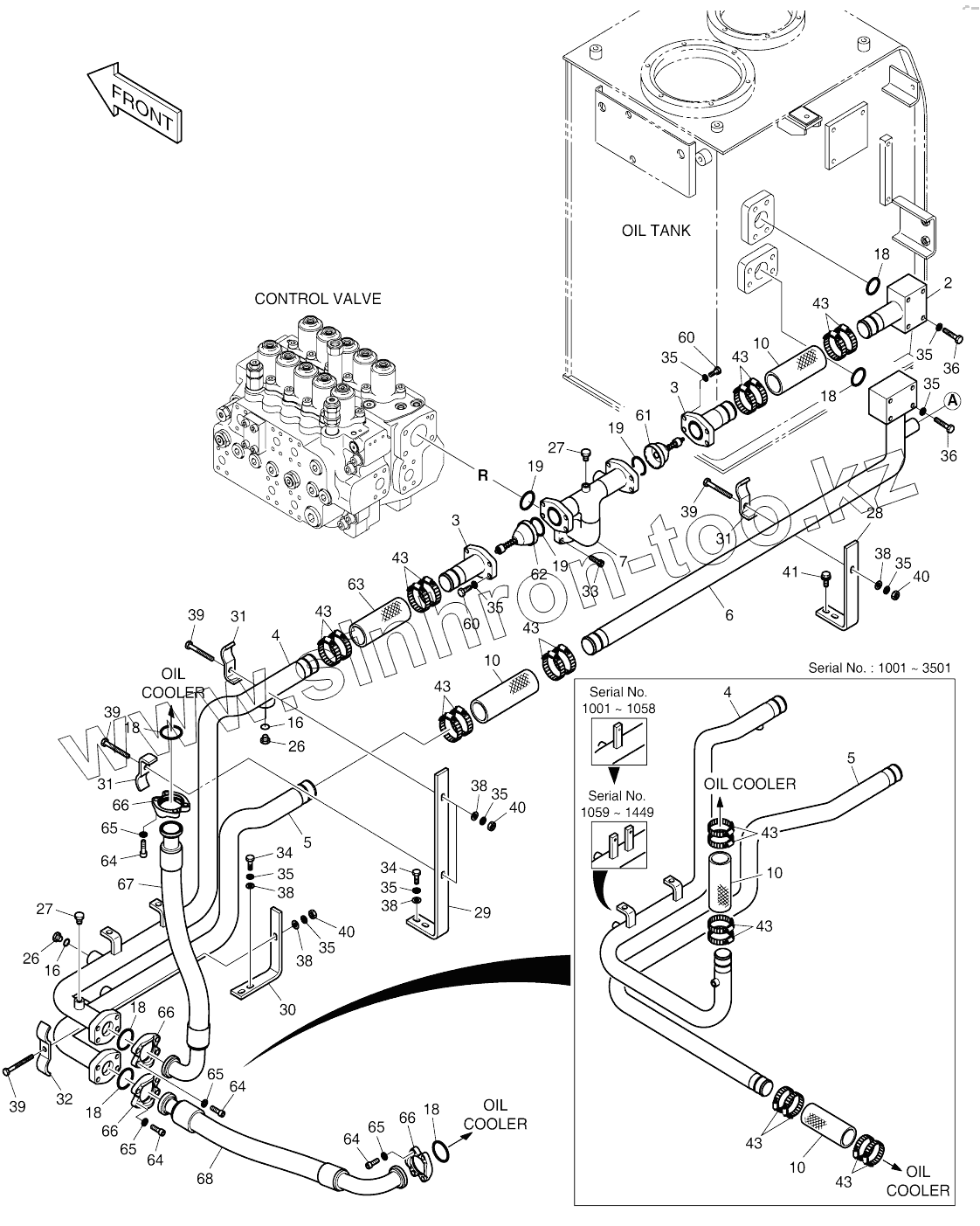

Каталог запасных частей к технике: Doosan SOLAR 210W-V. OIL COOLER PIPING (1)
420212-06671
420212-06671
420212-06671
400-01141
400-01141
400-01141
2
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
6
7
10
10
10
10
10
10
10
10
16
16
18
18
18
18
18
18
18
18
18
18
18
18
19
19
19
26
26
27
27
28
29
30
31
31
31
32
33
34
34
35
35
35
35
35
35
35
35
35
36
36
38
38
38
38
38
39
39
39
39
40
40
40
41
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
60
60
61
61
62
62
63
64
64
64
64
65
65
65
65
66
66
66
66
67
68
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 420212-06671 | 420212-06671 | Oil cooler piping | |
| 400-01141 | 400-01141 | Oil cooler piping | |
| 2 | 2140-1186A | Pipe | |
| 3 | 2140-1185A | PIPE | |
| 4 | 140-01183B | Pipe | |
| 4 | 140-01183C | Pipe | |
| 4 | 140-01183E | Pipe | |
| 4 | 140-01183G | Pipe | |
| 4 | 420207-01440 | Pipe | |
| 5 | 140-01184 | Pipe | |
| 5 | 420207-00468 | Pipe | |
| 6 | 2140-1187A | Pipe | |
| 7 | 2140-1184A | Pipe | |
| 10 | 2185-1776D2 | HOSE-200L | |
| 10 | 2185-1776D2 | HOSE-200L | |
| 16 | S8000291 | O-RING | |
| 18 | 2180-1026D28 | O-RING | |
| 18 | 2180-1026D28 | O-RING | |
| 19 | 2180-1026D27 | O-RING | |
| 26 | 2181-1950D9 | PLUG PFO1 | |
| 27 | 2181-2047 | PLUG | |
| 28 | 2891-1093A | Plate | |
| 29 | 2197-1458A | Bracket | |
| 30 | 2197-2194 | Bracket | |
| 31 | 2124-1224D2 | CLAMP | |
| 32 | 2124-1340D6 | CLAMP | |
| 33 | S2215366 | BOLT;SOCKET M12X1.75X35 | |
| 34 | S0560553 | BOLT M12X1.75X40 | |
| 35 | S5102703 | WASHER;SPRING M10 | |
| 36 | S0561253 | BOLT M12X1.75X75 | |
| 38 | S5010713 | WASHER;PLAIN | |
| 39 | S0561353 | BOLT M12X1.75X80 | |
| 40 | S4012733 | NUT M12 | |
| 41 | 2120-2196D11 | BOLT;SET | |
| 43 | S8470075 | CLAMP | |
| 43 | S8470075 | CLAMP | |
| 60 | S0560953 | BOLT M12X1.75X60 | |
| 61 | 420-00350 | Valve, by-pass | |
| 61 | 410128-00057 | Valve, bypass | |
| 62 | 420-00351 | Valve, by-pass | |
| 62 | 410128-00059 | Valve, bypass | |
| 63 | 2185-1776D3 | HOSE-170L | |
| 64 | S2215466 | BOLT;SOCKET | |
| 65 | S5110703 | Washer | |
| 66 | 4215-1003D5 | FLANGE;SPLIT | |
| 67 | DS20401002 | Hose | |
| 68 | DS20401001 | Hose assy, hydraulic |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
