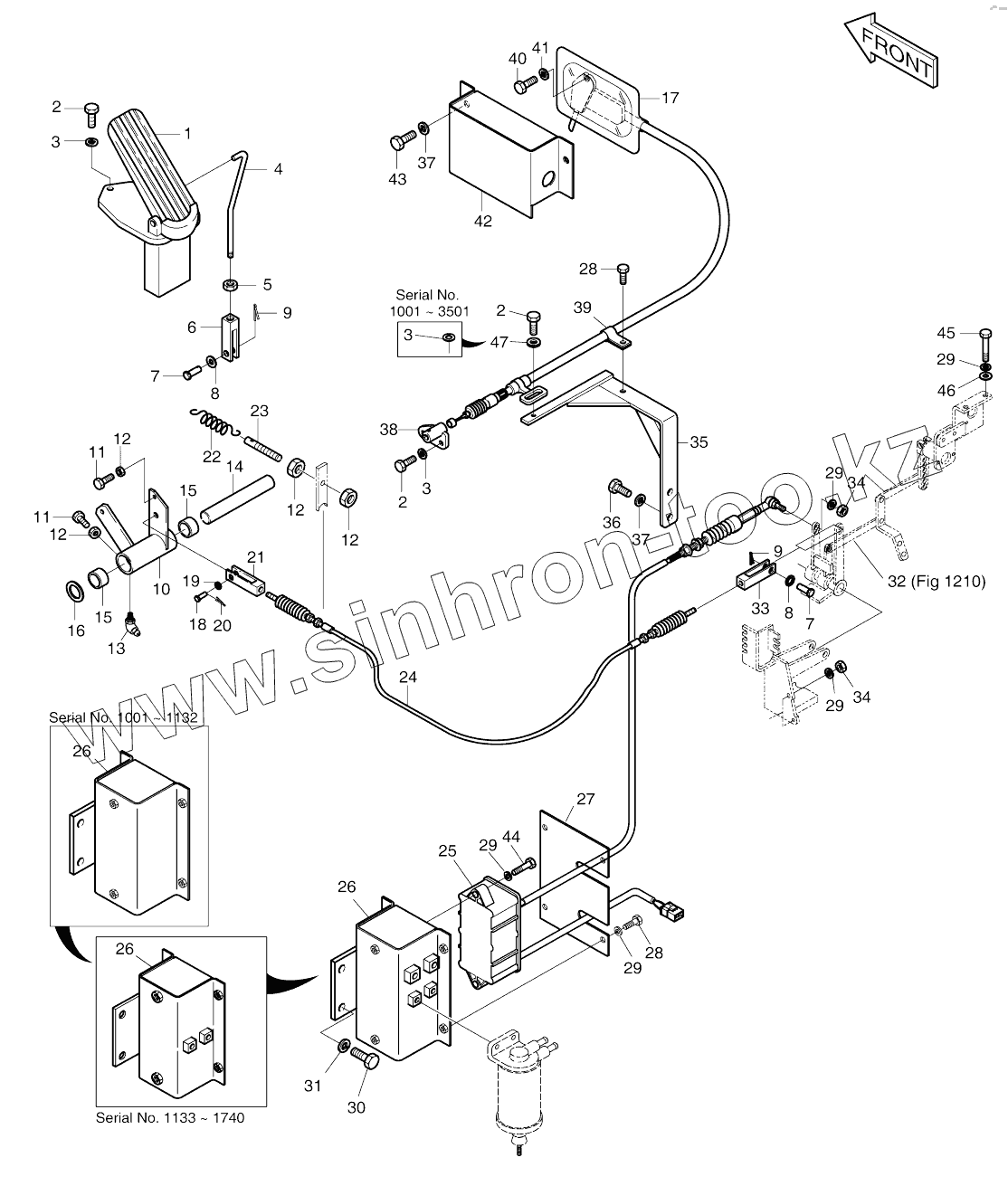

Каталог запасных частей к технике: Doosan SOLAR 210W-V. ENGINE CONTROL ASSY
133-00198A
133-00198
150126-00011
1
2
2
2
3
3
3
3
3
3
4
5
6
7
7
8
8
9
9
10
11
11
12
12
12
12
13
14
15
15
16
17
18
19
20
21
22
23
23
24
25
25
26
26
26
26
26
26
26
26
26
26
26
26
27
28
28
29
29
29
29
29
30
31
32
32
32
33
34
34
35
36
37
37
38
39
40
41
42
43
44
45
45
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 133-00198A | 133-00198A | Engine control | |
| 133-00198 | 133-00198 | Engine control | |
| 150126-00011 | 150126-00011 | Control assy, engine | |
| 1 | 2420-9563A | Pedal, remocon | |
| 2 | S0504553 | BOLT M6X1.0X14 | |
| 3 | S5102303 | WASHER;SPRING M6 | |
| 3 | S5102303 | WASHER;SPRING M6 | |
| 4 | 2136-4010 | Rod | |
| 5 | S4012333 | NUT M6X1.0 | |
| 6 | 2135-1008D3 | End, fork | |
| 7 | 2123-1888 | Pin | |
| 8 | S5010313 | WASHER;PLAIN | |
| 9 | S5735121 | Pin, split | |
| 10 | 2133-2011 | Lever | |
| 11 | S0512253 | BOLT M10X1.5X30 | |
| 12 | S4012633 | NUT M10X1.5 | |
| 13 | S6710152 | Nipple, grease | |
| 14 | 2123-1211D14 | Pin | |
| 15 | 2109-9019 | Bearing, needle | |
| 16 | S5011113 | WASHER;PLAIN | |
| 17 | 2523-9016 | MOTOR;ENGINE STOP | |
| 18 | 2123-1057D6 | Pin | |
| 19 | S5010513 | WASHER;PLAIN M8 | |
| 20 | S5735213 | Pin, split | |
| 21 | 2135-1008D29 | End, fork | |
| 22 | 2129-1039 | Spring | |
| 23 | 2136-1362 | Rod | |
| 23 | 2136-1362A | Rod | |
| 24 | 2139-1030D9 | Cable, control | |
| 25 | 523-00004 | ACTUATOR;ENGINE CONTROL | |
| 25 | 300513-00007 | Motor, engine control | |
| 26 | 195-01398 | Bracket | |
| 26 | 195-02488 | Bracket | |
| 26 | 195-02488A | Bracket | |
| 26 | 195-02488B | Bracket | |
| 27 | 159-00125 | Plate | |
| 28 | S0508853 | BOLT M8X1.25X20 | |
| 29 | S5102503 | WASHER;SPRING | |
| 30 | S0515053 | BOLT M12X1.75X25 | |
| 31 | S5102703 | WASHER;SPRING M10 | |
| 32 | 133-00187A | Lever assy | |
| 32 | 133-00187B | Lever assy | |
| 32 | 101101-00049 | Lever assy | |
| 33 | 2135-1008D25 | End, fork | |
| 34 | S4012533 | NUT M8X1.25 | |
| 35 | 2197-1777 | Bracket | |
| 36 | S0711853 | BOLT M10X1.25X20 | |
| 37 | S5102603 | WASHER;SPRING M10 | |
| 38 | 2150-1122 | HOOK;CABLE | |
| 39 | 2124-1509D10 | CLIP | |
| 40 | S0509053 | BOLT M8X1.25X25 | |
| 41 | S5010513 | WASHER;PLAIN M8 | |
| 42 | 2621-3922B | Cover | |
| 43 | S0511953 | BOLT M10X1.5X22 | |
| 44 | S0509353 | BOLT M8X1.25X35 | |
| 45 | S0556553 | BOLT M8X1.25X60 | |
| 45 | S0556753 | Bolt | |
| 46 | 2114-1058D56 | Washer | |
| 47 | 120810-00145 | Washer, plain |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
