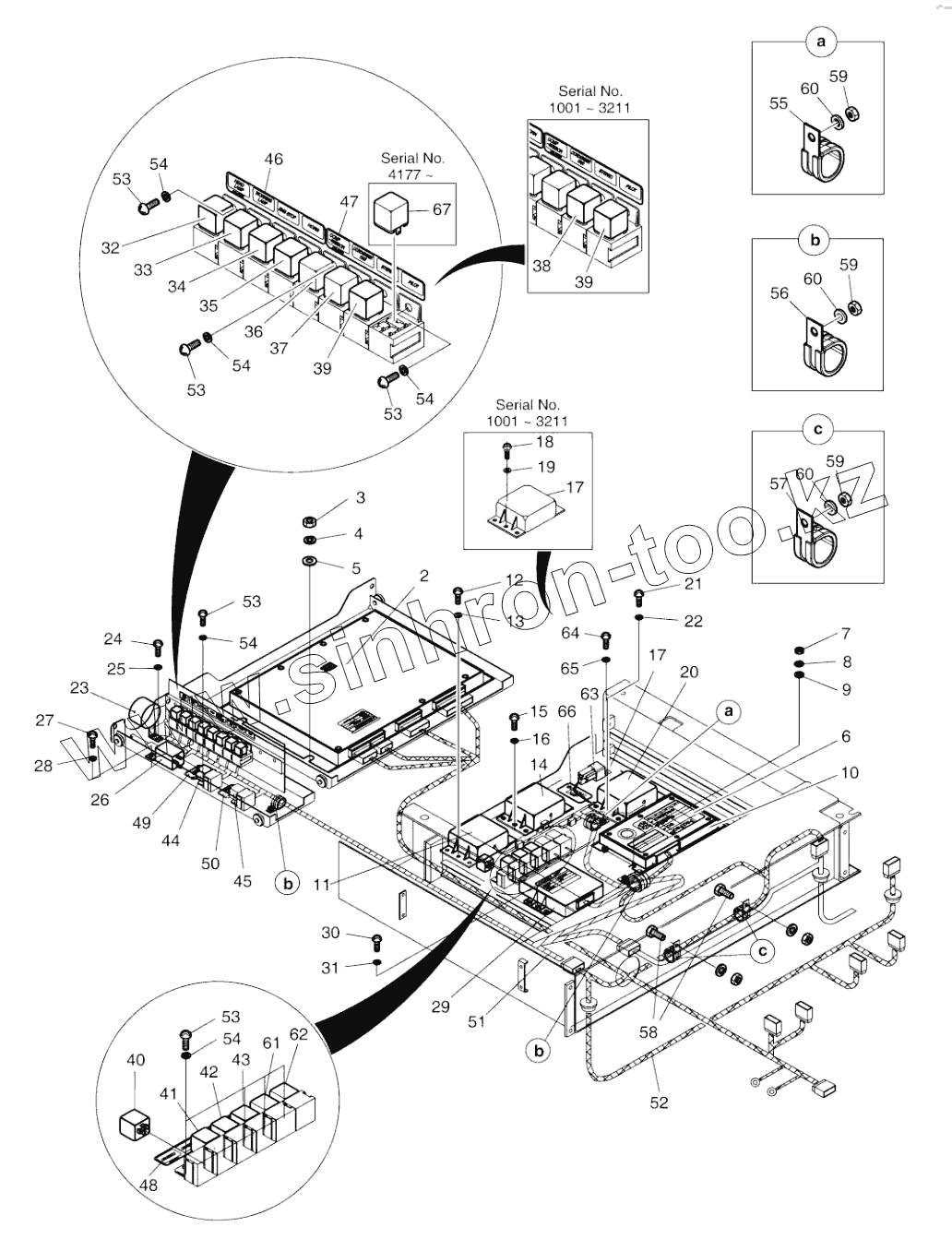

Каталог запасных частей к технике: Doosan SOLAR 210W-V. ELECTRIC BOX ASSY-ELECTRIC

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
500-00160B
500-00160A
300706-00008K
300706-00008C
300706-00008A
500-00160H
500-00160J
500-00160C
500-00160G
2
2
2
2
3
4
5
6
6
6
7
8
9
10
10
11
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
41
42
43
44
45
46
46
47
47
47
48
49
50
51
51
51
51
51
52
52
52
52
52
52
52
52
53
53
53
53
53
54
54
54
54
54
55
56
57
58
59
59
59
60
60
60
61
62
63
64
65
66
67
Позиция на иллюстрации Заводской номер детали Название детали
500-00160B 500-00160B Electric box assy
500-00160A 500-00160A Electric box assy
300706-00008K 300706-00008K Electric assy, e-box
300706-00008C 300706-00008C Electric assy, e-box
300706-00008A 300706-00008A Box assy, electric
500-00160H 500-00160H Electric box assy
500-00160J 500-00160J Electric box assy
500-00160C 500-00160C Electric box assy
500-00160G 500-00160G Electric box assy
2 543-00059 Controller, e-epos
2 543-00059A Controller, e-epos
2 300611-00466 Controller, epos
2 300611-00466B Controller, epos
3 S4012633 NUT M10X1.5
4 S5102603 WASHER;SPRING M10
5 S5010613 WASHER;PLAIN
6 300611-00138A Controller
6 300611-00123 Controller, engine throttle
6 543-00074 CONTROLLER;THROTTLE
7 S4012333 NUT M6X1.0
8 S5102303 WASHER;SPRING M6
9 S5010313 WASHER;PLAIN
10 2190-3231D24 Plate, name
10 950209-04819 Plate, name, rpm set, throttle
11 2543-9015 STARTER;CONTROLLER
11 300611-00704 Controller, starter
12 S3450943 SCREW M6X1.0X10
13 S5102303 WASHER;SPRING M6
14 2537-9008 TIMER;WIPER
15 S3450943 SCREW M6X1.0X10
16 S5102303 WASHER;SPRING M6
17 2531-1003 CONVERTER;DC-DC (2)
18 S3450953 SCREW M6X1.0X12
19 S5102303 WASHER;SPRING M6
20 2531-1003 CONVERTER;DC-DC (2)
21 S3450953 SCREW M6X1.0X12
22 S5102303 WASHER;SPRING M6
23 2516-1116 BUZZER;PILOT
24 S3450943 SCREW M6X1.0X10
25 S5102303 WASHER;SPRING M6
26 2525-1011 Unit, blinker
26 300609-00030 Control unit, blinker
27 S3450943 SCREW M6X1.0X10
28 S5102303 WASHER;SPRING M6
29 543-00077 Unit, control
30 S3450943 SCREW M6X1.0X10
31 S5102303 WASHER;SPRING M6
32 2544-9033 RELAY
33 2544-9033 RELAY
34 2544-9033 RELAY
35 2544-9033 RELAY
36 2544-9033 RELAY
37 2544-9033 RELAY
38 2544-9033 RELAY
39 2544-9033 RELAY
40 2544-9033 RELAY
41 2544-9033 RELAY
42 2544-9033 RELAY
43 2544-9033 RELAY
44 2544-9033 RELAY
45 2544-9033 RELAY
46 2190-2037D19 PLATE;NAME
46 2190-2037D100 Plate, name, relay
47 2190-2037D21 Plate, name
47 2190-2037D102 Plate, name, relay
47 2190-2037D107 Plate, name
48 2190-2037D2 Plate, name
49 2190-2037D22 Plate, name
50 2190-2037D58 Plate, name
51 310207-00999 Harness, electric box
51 530-00275C Harness, electric box
51 530-00275A Harness, electric box
51 530-00275 Harness, electric box
51 530-00275B Harness, electric box
52 530-00276A Harness, cabin
52 530-00276B Harness, cabin
52 530-00478 Harness, cabin
52 530-00478B Harness, cabin
52 530-00478C Harness, cabin
52 530-00478E Harness, cabin
52 310207-01001 Harness, cabin
52 310207-01001A Harness, cabin
53 S3450823 SCREW M5X0.8X10
54 S5100203 WASHER;SPRING
55 124-00208D3 CLIP D20/M8
56 124-00208D5 CLIP D32/M8
57 124-00208D6 CLIP D38/M8
58 S0508853 BOLT M8X1.25X20
59 S4012533 NUT M8X1.25
60 S5102503 WASHER;SPRING
61 2190-2037D69 Plate, name
62 2544-9033 RELAY
63 301202-00042 Relay
64 S3450953 SCREW M6X1.0X12
65 S5102303 WASHER;SPRING M6
66 2190-2037D101 Plate, name, relay
67 2544-9033 RELAY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
