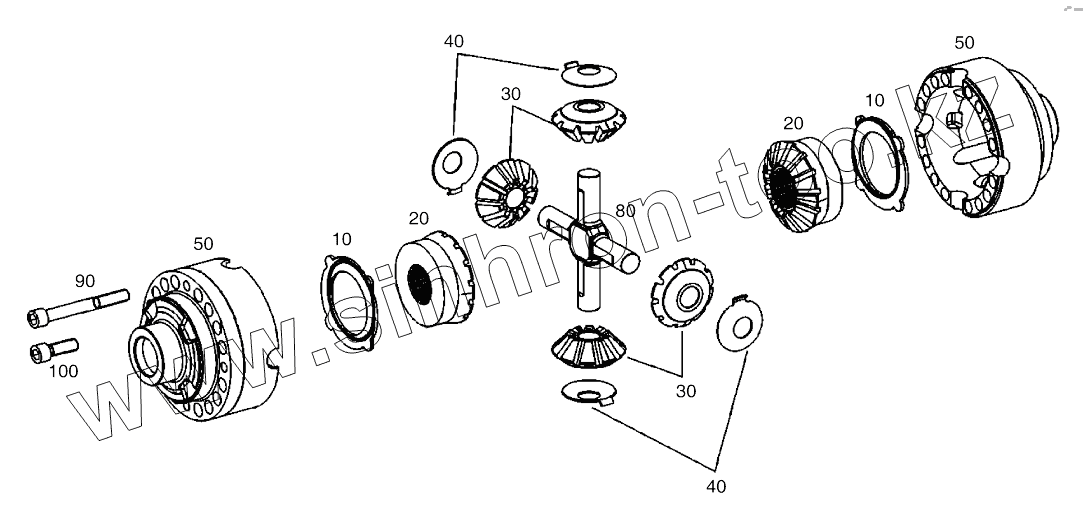

Каталог запасных частей к технике: Doosan SOLAR 210W-V. DIFFERENTIAL GEAR-FRONT AXLE (2791-)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD VALVE MECHANISM OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP AND COOLING FAN INTAKE AND EXHAUST MANIFOLD TURBO CHARGER AND OIL PIPE FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT-TOP OVER HAUL GASKET KIT-ALL FRAME ENGINE MOUNTING RADIATOR RESERVE TANK MUFFLER AIR CLEANER ASSY AIR CLEANER PUMP ASSY SWING DEVICE FUEL TANK OIL TANK ENGINE CONTROL ASSY LEVER ASSY-ENGINE SUB OIL COOLER PIPING (1) OIL COOLER PIPING (2) OIL COOLER PIPING (3) MAIN PIPING (1)-PUMP MAIN PIPING (2)-BOOM MAIN PIPING (3)-ARM.BUCKET MAIN PIPING (4)-SWING MAIN PIPING (5)-TRAVEL.DOZER PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING (9) PILOT PIPING (10) PILOT PIPING (11) PILOT PIPING (12) PILOT PIPING (13) BRAKE PIPING (1) BRAKE PIPING (2) STEERING PIPING STEERING WHEEL STEERING COLUMN ASSY COLUMN ASSY CONTROL STAND-L.H. CONTROL STAND-R.H. SEAT AND ELECTRIC BOX COVER SEAT MOUNTING SEAT SEAT MOUNTING-EXCEPT EUROPE AND U.S.A (1001-1019) SEAT-EXCEPT EUROPE AND U.S.A (1001-1019) DUCT COVER ASSY HEATER COVER ASSY CABIN MOUNTING CABIN ASSY CABIN (1) CABIN (2) CABIN (3) CABIN (4) CABIN (5) SUPPORT (1) SUPPORT (2) COVER (1) COVER (2) COVER (3) COVER (4) COVER (5) BAFFLE ACOUSTIC FOAM UNDER COVER LUBRICATOR PIPING ELECTRIC BOX ASSY ELECTRIC BOX ASSY-ELECTRIC ELECTRIC PARTS (1)-GAUGE ELECTRIC PARTS (2)-STAND (R.H) ELECTRIC PARTS (3)-STAND (L.H) ELECTRIC PARTS (4)-CABIN ELECTRIC PARTS (5)-BATTERY ELECTRIC PARTS (6)-ENGINE ELECTRIC PARTS (7)-RELATED ELECTRIC PARTS (8)-LAMP PARTS ELECTRIC WIRING (1)-BATTERY ELECTRIC WIRING (2)-ENGINE ELECTRIC WIRING (3)-RELATED COOLER AND HEATER AIRCON UNIT COOLER AND HEATER CHASSIS FRAME-PIN TYPE POWER TRAIN (1)-FRONT AXLE POWER TRAIN (2)-REAR AXLE POWER POWER TRAIN (4)-SHAFT CHASSIS COMPONENT DOZER AND OUTRIGGER PIPING BRAKE PIPING (1)-FRONT BRAKE PIPING (2)-REAR STEERING PIPING CHOCKING PIPING PROPELLING PIPING (1)-TRAVEL MOTOR (1001-1041) PROPELLING PIPING (1)-TRAVEL MOTOR (1042-2131) PROPELLING PIPING (2)-GEAR SHIFT AND TEST PORT (1001-1041) PROPELLING PIPING (2)-GEAR SHIFT AND TEST PORT (1042-1626) PROPELLING PIPING (2)-GEAR SHIFT AND TEST PORT (1627-2131) PROPELLING PIPING (3)-DRAIN (1001-1041) PROPELLING PIPING (3)-DRAIN (1042-2131) PROPELLING PIPING (4)-MOTOR MAKE UP (1001-1041) PROPELLING PIPING (4)-MOTOR MAKE UP (1042-2131) PROPELLING PIPING (2132-) BLADE-REAR BLADE PIPING (1001-1989) DOSER PIPING (1990-4085) DOSER PIPING (4086-) OUTRIGGER-STABILIZER OUTRIGGER-FRONT BOOM-5.7M ARM-2.9m BUCKET-0.86m FRONT PIPING FRONT LUBRICATOR PIPING LUBRICATOR PIPING-ARM (1166-1626) LUBRICATOR PIPING-ARM (1627-2194) MAIN PUMP (1001-4009) PUMP REGULATOR PTO ASSY GEAR PUMP GEAR PUMP(2 PORT) (1001-1814) GEAR PUMP(2 PORT) (1815-) SWING MOTOR SWING REDUCTION GEAR (1001-1742) SWING REDUCTION GEAR (1743-) TRAVEL MOTOR (1001-1041) TRAVEL MOTOR (1042-2131) TRAVEL MOTOR (2132-) PISTON MOTOR-TRAVEL MOTOR (1001-1041) ROTARY GROUP-TRAVEL MOTOR (1001-1041) ROTARY GROUP-TRAVEL MOTOR (1042-) REGULATOR-TRAVEL MOTOR (1001-1041) RELIEF VALVE-TRAVEL MOTOR (1001-1041) CONTROL PARTS-TRAVEL MOTOR (1001-1041) CONTROL PARTS-TRAVEL MOTOR (1042-2131) CONTROL PARTS-TRAVEL MOTOR (2132-) COUNTER BALANCE VALVE-TRAVEL MOTOR (1001-1041) COUNTER BALANCE VALVE-TRAVEL MOTOR (1042-) STROKE LIMIT-TRAVEL MOTOR (1001-1041) STROKE LIMIT-TRAVEL MOTOR (1042-2131) STROKE LIMIT-TRAVEL MOTOR (1538-1626) STROKE LIMIT-TRAVEL MOTOR (2132-) CONTROL VALVE CONTROL VALVE-ARTI.BOOM (1001-1630) CONTROL VALVE-ARTI.BOOM (1631-) STEERING VALVE PILOT AND T/M SUPPLY VALVE PILOT CHECK VALVE-OUTRIGGER REMOTE CONTROL VALVE (1001-1864) REMOTE CONTROL VALVE (1865-) REMOTE CONTROL VALVE-3 REMOTE CONTROL VALVE-DOZER BRAKE SUPPLY VALVE FOOT BRAKE VALVE BREAKER PACKAGE VALVE PEDAL VALVE-ARTI.BOOM SOLENOID VALVE CENTER JOINT CENTER JOINT BOOM CYLINDER (L.H.) BOOM CYLINDER (R.H.) ARM CYLINDER BUCKET CYLINDER DOZER CYLINDER (L.H.) DOZER CYLINDER (R.H.) CHOCKING CYLINDER (1001-1259) CHOCKING CYLINDER (L.H.) (1260-3173) CHOCKING CYLINDER (L.H.) (3174-) CHOCKING CYLINDER (R.H) (1260-3173) CHOCKING CYLINDER (R.H) (3174-) OUTRIGGER CYLINDER BOOM CYLINDER (L.H)-LOCK BOOM CYLINDER (R.H)-LOCK ARM CYLINDER-LOCK VALVE BOOM CYLINDER(L.H.)-ARTI.BOOM BOOM ARTI.BOOM CYLINDER ARM CYLINDER-ARTI.BOOM BOOM CYLINDER(L.H.)-L/V FOR ARTI.BOOM BOOM CYLINDER(R.H.)-L/V FOR ARTI.BOOM ARTI.BOOM CYLINDER-LOCK VALVE ARM CYLINDER-L/V FOR ARTI.BOOM INPUT HOUSING-TRANSMISSION (1001-2131) INPUT SHAFT-TRANSMISSION (1001-2131) INPUT-MISSION (2132-) HOUSING-TRANSMISSION (1001-2131) HOUSING-MISSION (2132-) PIPING-TRANSMISSION (1001-2131) OIL PIPE-MISSION (2132-) 2ND GEAR CLUTCH-TRANSMISSION (1001-2131) MIDDLE DISC-MISSION (2132-) 1SD GEAR CLUTCH-TRANSMISSION (1001-2131) COUPLING-MISSION (2132-) PLANETARY GEAR-TRANSMISSION (1001-2131) PLANETARY GEAR-MISSION (2132-) DISCONNECTION DEVICE-TRANSMISSION (1001-2131) SPUR GEAR-TRANSMISSION (1001-2131) GEAR SHIFTING GOVERNOR-TRANSMISSION (1001-2131) GEAR SHIFTING GOVERNOR-TRANSMISSION (2132-) OUTPUT SHAFT-TRANSMISSION (1001-2131) OUTPUT-MISSION (2132-) AXLE CASING-FRONT AXLE (1001-2131) AXLE CASING-FRONT AXLE (2132-) DIFFERENTIAL-FRONT AXLE (1001-2131) DIFFERENTIAL GEAR-FRONT AXLE (2132-2790) DIFFERENTIAL GEAR-FRONT AXLE (2791-) DIFF. CARRIER-FRONT AXLE (1001-2131) INPUT-FRONT AXLE (2132-) JOINT HOUSING-FRONT AXLE (1001-2131) JOINT HOUSING-FRONT AXLE (2132-2790) JOINT HOUSING-FRONT AXLE (2791-) OUTPUT-FRONT AXLE (1001-2131) OUTPUT-FRONT AXLE (2132-2790) OUTPUT-FRONT AXLE (2791-) STEERING CYLINDER-FRONT AXLE (1001-2131) STEERING CYLINDER-FRONT (2132-) AXLE CASING-REAR AXLE (1001-2131) AXLE CASING-REAR AXLE (2132-) DIFFERENTIAL-REAR AXLE (1001-2131) DIFFERENTIAL-REAR AXLE (2132-2790) DIFFERENTIAL-REAR AXLE (2791-) DIFF. CARRIER-REAR AXLE (1001-2131) INPUT-REAR AXLE (2132-) HUB CARRIER-REAR AXLE (1001-2131) HUB CARRIER-REAR AXLE (2132-) OUTPUT-REAR AXLE (1001-2131) OUTPUT-REAR AXLE (2132-2790) OUTPUT-REAR AXLE (2791-) OPTION VALVE (1597-) TOOL SPARE PARTS FUEL FILTER PUMP ASSY AIR CLEANER SUN VISOR ASSY SUN ROOF ASSY NOISE FILTER ASSY-EUROPE 2-CABIN LAMP ASSY 6-LAMP AND BEACON (TELESCOPIC) BEACON RETURN FILTER PRESS SWITCH ALTERNATOR OVERLOAD WARNING ASSY CABIN LOW GUARD JOYSTICK VALVE ASSY 3-SWITCH OUTRIGGER-REAR OUTRIGGER PIPING-REAR BLADE-FRONT BLADE AND O/RIGGER PIPING-PIN POWER TRAIN-SINGLE OPT. POWER TRAIN-10.0-20 16PR TIRE (1600-) ARM-2.0M ARM ASSY-2.4m ARM PIPING-ARM 2.0m ARM PIPING-ARM 2.4m BUCKET 0.50mВі BUCKET 0.81mВі BUCKET 1.05mВі BUCKET 1.17mВі BUCKET 1.18mВі BUCKET 0.73mВі (36")-SIDE PIN BUCKET 0.67mВі (36")-VERTICAL PIN BUCKET 0.90mВі (42")-SIDE PIN BUCKET 0.90mВі (42")-VERTICAL PIN BUCKET 1.07mВі (48")-SIDE PIN BUCKET 1.07mВі (48")-VERTICAL PIN BUCKET 1.24mВі (54")-SIDE PIN BUCKET 1.24mВі (54")-VERTICAL PIN BUCKET 1.32mВі (57")-SIDE PIN BUCKET 1.32mВі (57")-VERTICAL PIN BUCKET 1.49mВі (63")-SIDE PIN BUCKET 1.49mВі (63")-VERTICAL PIN MAIN PIPING-ONE WAY PILOT PIPING-ONE WAY BOOM PIPING-ONE WAY-BOOM 5.7M BOOM PIPING-ONE WAY-BOOM 5.7M-KOREA ARM PIPING-ARM 2.0M (ONE AND TWO WAY) ARM PIPING-ARM 2.4M (ONE AND TWO WAY) ARM PIPING-ARM 2.9M (ONE AND TWO WAY) MAIN PIPING-TILTING (1001-1596) MAIN PIPING-TILTING (1597-) PILOT PIPING-TILTING BOOM PIPING-ROTATING ARM PIPING-ROTATING LOCK VALVE PIPING ARTI.BOOM-3.8M+1.87M FLOOR ASSY-ROTATING TILTING ARTI (SINGLE) FLOOR ASSY-TILT AND ARTI.BOOM (DOUBLE) MAIN PIPING-ARTI.BOOM PILOT PIPING-ARTI.BOOM BOOM PIPING-ARTI.BOOM FRONT LUBRICATION PIPING-ARTI.BOOM LOCK VALVE PIPING-ARTI.BOOM STAY ASSY-ARTI.BOOM MAIN PIPING-ARTI.BOOM-1 AND 2 PILOT PIPING-ARTI.BOOM-1 WAY FRONT PIPING-ARTI.BOOM-1 WAY ARM-2.65M (1102-) ARM PIPING-ARM 2.65m (1102-) ARM PIPING-ARM 2.65M (ONE AND TWO WAY) (1102-) FRONT COMBI. LAMP-EUROPE (1133-) F.O.G.S GUARD (1366-1594) F.O.G.S GUARD (1595-) FRONT PIPING-PERO-ARTI.BOOM (1420-) ARM PIPING-2.4M-ROTATING AND TILTING (1420-) FLOOR ASSY-MULTI PIPING (1420-) BOOM PIPING-PE3C MAIN PIPING-PE3C PILOT PIPING-PE3C AND PERO PILOT PIPING-PE3C PILOT PIPING-PERO COUNTER WEIGHT-4TON LOW NOISE KIT-EUROPE DOUBLE FUEL FILTER F.O.G.S GUARD-TURBO FOGS GUARD ASSY

10

10

20

20

30

30

40

40

50

50

80

90

100

Позиция на иллюстрации	Заводской номер детали		Название детали
10	120816-00040		Washer, thrust
20	130407-00013		Gear, bevel
30	130407-00012		Gear, bevel, differential
40	120816-00039		Washer, thrust
50	130401-00016		Case, differential
80	850434-00006		Spider, differential
90	120704-00056		Screw, cap
100	120704-00057		Screw, cap

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
