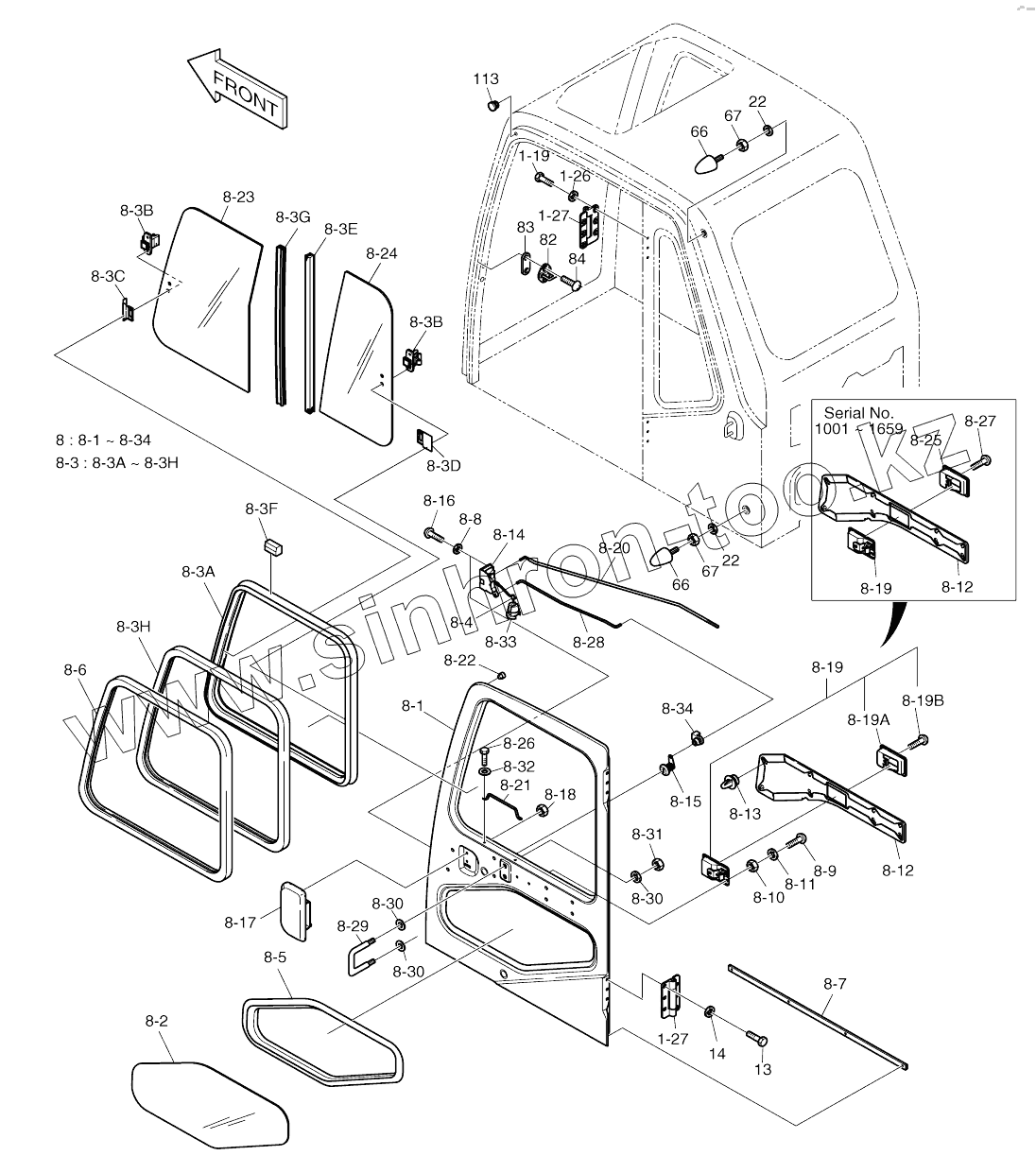

Каталог запасных частей к технике: Doosan SOLAR 210W-V. CABIN (5)
8-19
8-19
8-19
8-25
8-24
8-23
8-22
8-21
8-21
8-20
8-19B
8-19A
8-26
8-19
8-19
8-19
8-18
8-17
8-16
8-15
8-15
8-15
8-14
13
113
84
83
82
67
67
66
66
66
66
22
22
14
8-13
8-34
8-33
8-32
8-31
8-30
8-30
8-30
8-29
8-28
8-27
1-19
8-2
8-1
8
8
8
8
8
1-27
1-27
1-26
8-3
8-4
8-12
8-12
8-11
8-10
8-9
8-8
8-7
8-6
8-5
8-3H
8-3G
8-3F
8-3E
8-3D
8-3C
8-3B
8-3B
8-3A
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 8-19 | K1004085 | HANDLE;INNER | |
| 8-25 | 2621-9005 | COVER;HANDLE | |
| 8-24 | 2903-1220 | GLASS 5T | |
| 8-23 | 2903-1219A | GLASS 5T | |
| 8-22 | 2161-2227 | STOPPER;RUBBER | |
| 8-21 | 220206-00122 | Handle, door | |
| 8-21 | 2172-1110B | HANDLE;DOOR | |
| 8-20 | 2136-1431 | ROD;HANDLE INNER DOOR | |
| 8-19B | S3452823 | SCREW M5X0.8X10 | |
| 8-19A | 2621-9005 | COVER;HANDLE | |
| 8-26 | 2120-2166D5 | BOLT M8X1.25X20 | |
| 8-19 | 2172-9022 | HANDLE;INNER | |
| 8-18 | S4012303 | NUT M6X1.0 | |
| 8-17 | 2172-9021 | HANDLE;OUTER | |
| 8-16 | 2120-2150D3 | BOLT M6X1.0X16 | |
| 8-15 | K1003900 | CYLINDER;KEY | |
| 8-15 | 172-00212 | CYLINDER;KEY | |
| 8-15 | 2172-9036 | CYLINDER;KEY | |
| 8-14 | 2125-9036 | CATCH;DOOR LOCK | |
| 13 | S0512263 | BOLT M10X1.5X30 | |
| 113 | 2161-2227 | STOPPER;RUBBER | |
| 84 | 2120-2150D1 | BOLT M10X1.5X25 | |
| 83 | 2114-1856 | SHIM;STRIKER 1.0T | |
| 82 | 2142-9005 | STRIKER;DOOR LOCK | |
| 67 | S4014633 | NUT M10 | |
| 66 | 2161-1004 | Stopper | |
| 66 | 2161-2226 | STOPPER | |
| 22 | S5010613 | WASHER;PLAIN | |
| 14 | 2114-1058D45 | WASHER M10 | |
| 8-13 | 2124-1607 | TRIM CLIP | |
| 8-34 | 124-00010 | CLIP;ROD | |
| 8-33 | 2124-1689A | ROD;SNAP | |
| 8-32 | 2114-1898D2 | WASHER M8 | |
| 8-31 | S4012533 | NUT M8X1.25 | |
| 8-30 | 2891-1311 | PLATE;PLAIN | |
| 8-29 | 2150-1132A | HOOK;CATCH DOOR | |
| 8-28 | 2123-2239A | ROD;DOOR LOCK | |
| 8-27 | S3452823 | SCREW M5X0.8X10 | |
| 1-19 | S0512263 | BOLT M10X1.5X30 | |
| 8-2 | 2903-1214 | GLASS;DOOR t=5 | |
| 8-1 | 622-00242 | PANEL ASM;DOOR | |
| 8 | 300427-00792 | Panel assy, door | |
| 8 | 622-00219G | PANEL;DOOR ASS'Y | |
| 8 | 622-00219C | PANEL;DOOR ASS'Y | |
| 8 | 622-00219B | PANEL;DOOR ASS'Y | |
| 8 | 622-00219A | PANEL;DOOR ASS'Y | |
| 1-27 | 2171-1078 | HINGE | |
| 1-26 | 2114-1058D45 | WASHER M10 | |
| 8-3 | SASH | Sash assy, door | |
| 220101-00693G | 220101-00693G | Cabin assy | |
| 220101-00693B | 220101-00693B | Cabin assy | |
| 220101-00693A | 220101-00693A | Cabin assy | |
| 220101-00693 | 220101-00693 | Cabin assy | |
| 622-00210H | 622-00210H | Cabin assy | |
| 622-00210E | 622-00210E | Cabin assy | |
| 622-00210C | 622-00210C | Cabin assy | |
| 622-00210B | 622-00210B | Cabin assy | |
| 8-4 | 2123-2247 | PIN | |
| 8-12 | 161-00428A | PAD;DOOR | |
| 8-11 | S5102203 | WASHER SPRING M5 | |
| 8-10 | S5010213 | WASHER PLAIN M5 | |
| 8-9 | S3450833 | SCREW M5X0.8X12 | |
| 8-8 | S5210303 | WASHER;TOOTHED LOCK | |
| 8-7 | 2180-1267 | SEAL;DOOR | |
| 8-6 | 2161-2229 | FINISHER;SASH DOOR | |
| 8-5 | 2198-1054 | S-RUBBER;DOOR | |
| 622-00210A | 622-00210A | Cabin assy | |
| 8-3H | 2161-6060 | RUN CHANNEL | |
| 8-3G | 2731-6003 | BAR;CENTER | |
| 8-3F | 2161-6063 | STOPPER;CLASS | |
| 8-3E | 2731-6002 | BAR;SEAL | |
| 8-3D | 2116-6007 | STOPPER;LOCK | |
| 8-3C | 2116-6006 | STOPPER;LOCK | |
| 8-3B | 2123-6119 | DOOR LOCK | |
| 8-3A | 2622-6014 | SASH |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
