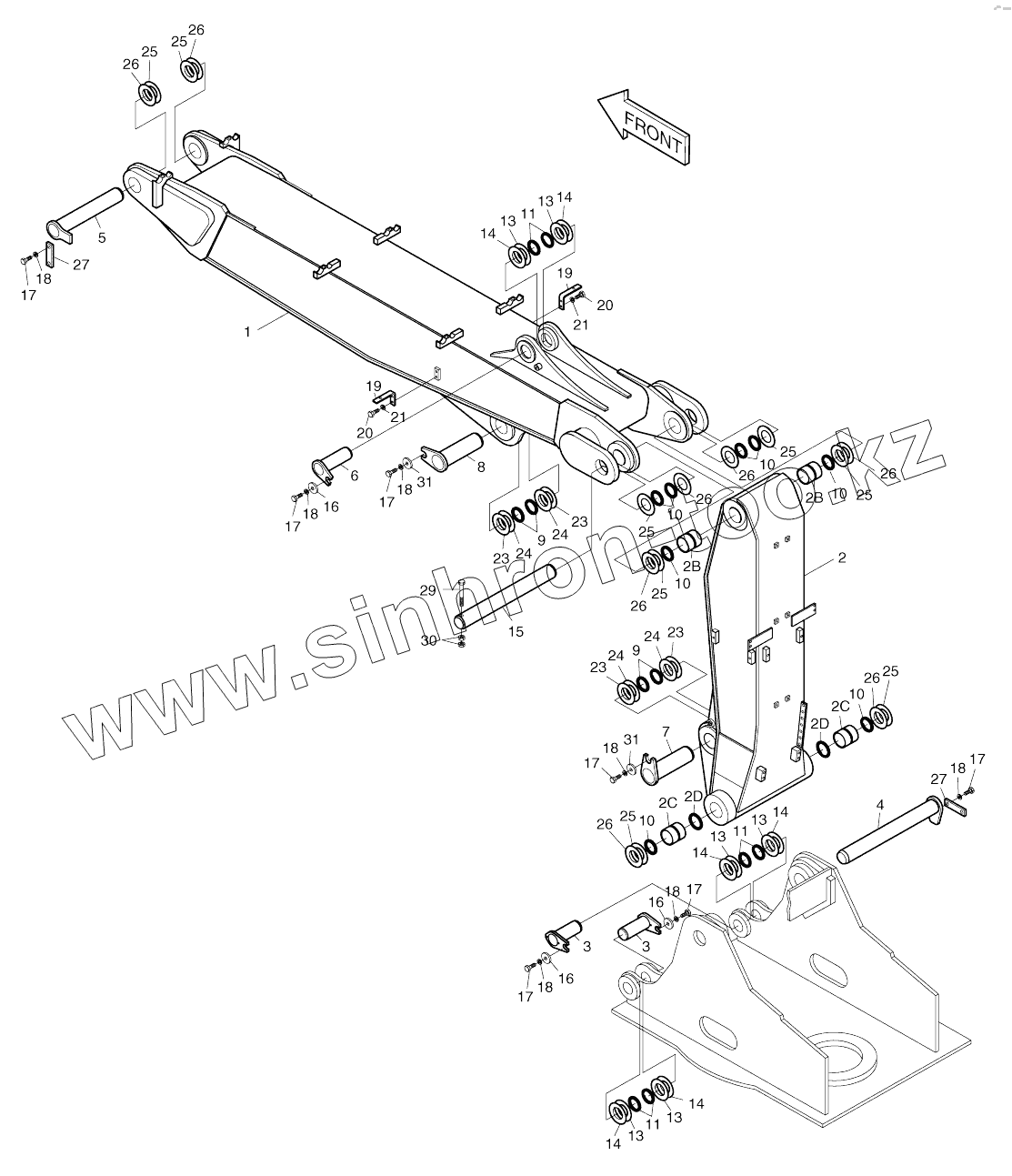

Каталог запасных частей к технике: Doosan SOLAR 210W-V. ARTI.BOOM-3.8M+1.87M
19
19
8
9
9
10
10
10
10
10
10
11
11
11
13
13
13
13
13
13
14
14
14
14
14
14
15
15
16
16
16
17
17
17
17
17
17
17
18
18
18
18
18
18
18
8
20
20
21
21
23
23
23
23
24
24
24
24
25
25
25
25
25
25
25
25
26
26
26
26
26
26
26
26
27
27
29
30
31
31
3
3
1
1
2
2B
2B
2C
2C
2D
2D
3
3
3
3
4
4
4
5
5
6
6
6
7
7
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 19 | 2195-2394B | BRACKET | |
| 8 | 120501-01096A | Pin, arm cyl head | |
| 9 | 2180-1106BD14 | SEAL;DUST | |
| 10 | 2180-1106BD6 | Seal, dust | |
| 11 | 2180-1106BD24 | SEAL;DUST | |
| 13 | 2114-1059D63 | SHIM | |
| 14 | 2114-1059D118 | Shim | |
| 15 | 123-00361 | Pin | |
| 15 | 120501-01276 | Pin, arti boom center | |
| 16 | 2116-1060D6 | STOPPER | |
| 17 | S0521366 | BOLT M16X2.0X35 | |
| 18 | S5102903 | WASHER;SPRING | |
| 8 | 2123-2031C | PIN | |
| 20 | S0515053 | BOLT M12X1.75X25 | |
| 21 | S5102703 | WASHER;SPRING M10 | |
| 23 | 2114-1059D72 | Shim | |
| 24 | 2114-1059D73 | Shim | |
| 25 | 114-00001D5 | Shim | |
| 26 | 114-00001D6 | Shim | |
| 27 | 2116-1514A | PLATE;STOPPER | |
| 29 | S0571866 | Bolt | |
| 30 | S4013133 | Nut | |
| 31 | 2116-1060D5 | STOPPER | |
| 3 | 120501-01061 | Pin | |
| 701-00084E | 701-00084E | Boom assy | |
| 230208-00033B | 230208-00033B | Boom assy, arti | |
| 1 | 2701-1671G | Boom, upper | |
| 1 | 2701-1671H | Boom, upper | |
| 2 | 2701-1667G | Boom , lower mach. | |
| 2B | 2110-1316A | Bushing | |
| 2C | 2110-1315A | Bushing | |
| 2D | 2180-1106BD6 | Seal, dust | |
| 3 | 123-00409 | Pin | |
| 3 | 123-00409A | Pin | |
| 701-00084C | 701-00084C | Boom assy | |
| 4 | 2123-2180E | Pin | |
| 4 | 2123-2180G | Pin | |
| 4 | 120501-01812 | Pin, boom foot | |
| 5 | 2123-2185E | Pin | |
| 5 | 2123-2185G | Pin | |
| 6 | 2123-2187C | Pin | |
| 6 | 2123-2187E | Pin | |
| 6 | 120501-01062 | Pin | |
| 7 | 123-00030 | PIN | |
| 7 | 120501-01242 | Pin, arm cyl. Head |
