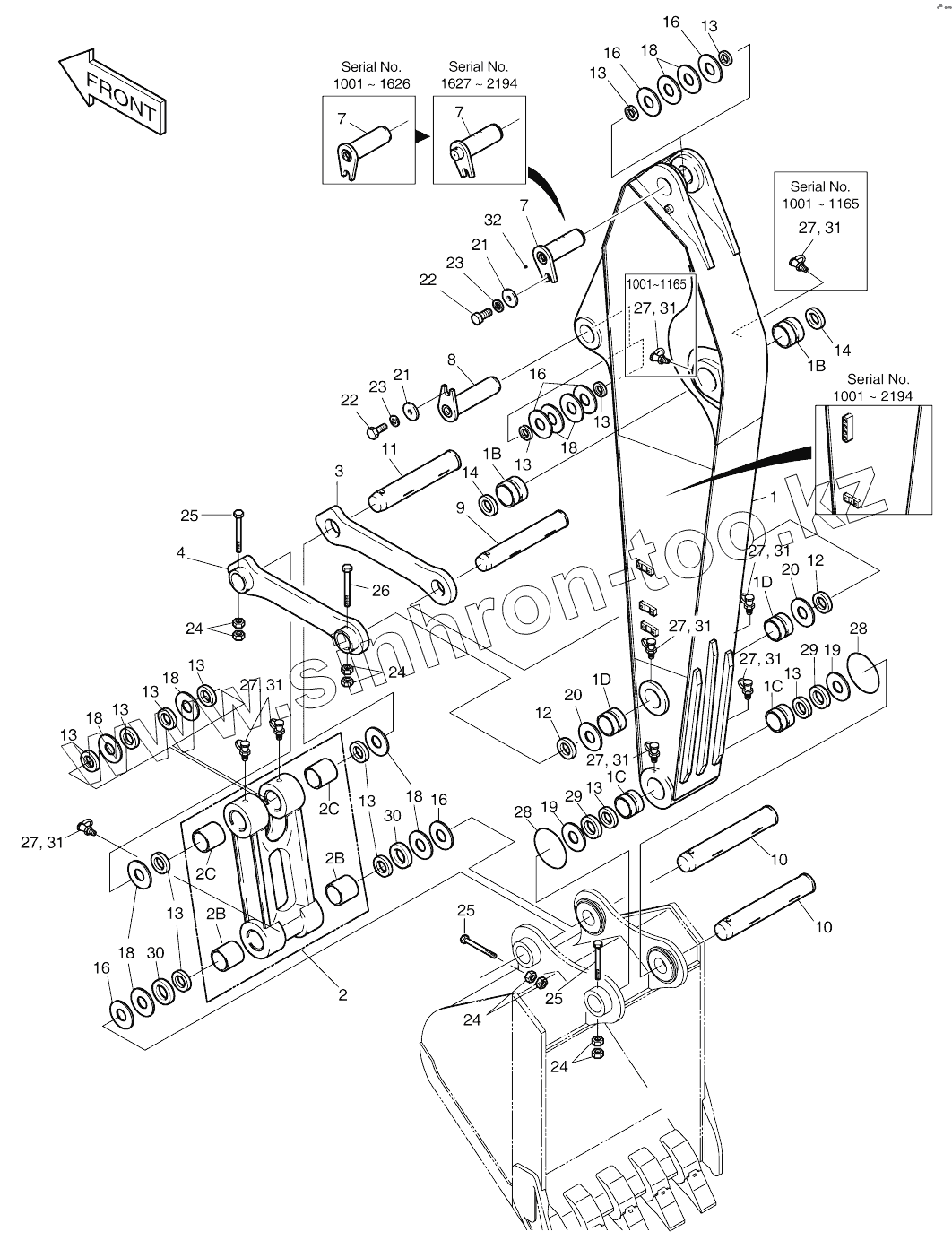

Каталог запасных частей к технике: Doosan SOLAR 210W-V. ARM-2.9m
24
24
24
24
10
10
11
11
12
12
13
13
13
13
13
13
13
13
13
13
13
13
14
14
16
16
16
16
16
18
18
18
18
18
18
19
19
20
20
21
21
22
22
23
23
10
10
25
25
25
26
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
28
28
29
29
29
29
30
30
30
30
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
32
2C
2C
701-00532B
701-00532B
701-00532B
701-00532B
230201-00397
230201-00397
230201-00397
230201-00397
1
1
1
1
1
1
1B
1B
1C
1C
1D
1D
2
2B
2B
2701-1417A
2701-1417A
2701-1417A
2701-1417A
3
4
7
7
7
7
7
7
7
7
7
7
7
7
8
8
8
8
9
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 24 | S4012933 | NUT | |
| 10 | 120501-01052 | Pin | |
| 11 | 2123-2193B | Pin | |
| 11 | 120501-01072 | Pin | |
| 12 | 2180-1106BD4 | SEAL;DUST | |
| 13 | 2180-1106BD24 | SEAL;DUST | |
| 14 | 2180-1106BD6 | Seal, dust | |
| 16 | 2114-1059D118 | Shim | |
| 18 | 2114-1059D63 | SHIM | |
| 19 | 2114-1059D175 | SHIM | |
| 20 | 2114-1059D122 | Shim | |
| 21 | 2116-1060D6 | STOPPER | |
| 22 | S0521366 | BOLT M16X2.0X35 | |
| 23 | S5102903 | WASHER;SPRING | |
| 10 | 2123-2192C | PIN | |
| 25 | S0566966 | BOLT M16X2.0X140 | |
| 26 | S0566866 | BOLT M16X2.0X130 | |
| 27 | S6710041 | NIPPLE;GREASE | |
| 27 | S6710041 | NIPPLE;GREASE | |
| 28 | 180-00077D5 | O-RING | |
| 29 | 2114-1997A | SPACER | |
| 29 | 2114-1997B | SPACER | |
| 30 | 2114-1998A | SPACER | |
| 30 | 2114-1998B | SPACER | |
| 31 | 160-00020 | CAP;GREASE NIPPLE | |
| 31 | 160-00020 | CAP;GREASE NIPPLE | |
| 32 | 2181-1116D1 | Plug | |
| 2C | 2110-1360A | Bushing | |
| 701-00532B | 701-00532B | Arm assy | |
| 230201-00397 | 230201-00397 | Arm assy | |
| 1 | 2701-1602N | Arm sub assy | |
| 1 | 701-00529A | Arm sub assy | |
| 1 | 701-00529B | Arm sub assy | |
| 1 | 701-00529C | Arm sub assy | |
| 1 | 701-00529E | Arm sub assy | |
| 1 | 701-00529F | Arm sub assy | |
| 1B | 2110-1316A | Bushing | |
| 1C | 110-00064 | BUSHING | |
| 1D | 2110-1318A | Bushing | |
| 2 | 2155-1335G | Link assy, push | |
| 2B | 2110-1228B | BUSHING | |
| 2701-1417A | 2701-1417A | Arm assy | |
| 3 | 2155-1299B | Link, guide | |
| 4 | 2155-1300B | Link, guide | |
| 7 | 2123-2187C | Pin | |
| 7 | K1002128 | Pin | |
| 7 | 2123-2187C | Pin | |
| 7 | 120501-01062 | Pin | |
| 8 | 2123-2182C | Pin | |
| 8 | K1002130 | Pin | |
| 8 | 2123-2182C | Pin | |
| 8 | 120501-01076 | Pin | |
| 9 | 2123-2191B | Pin | |
| 9 | 120501-01071 | Pin |
