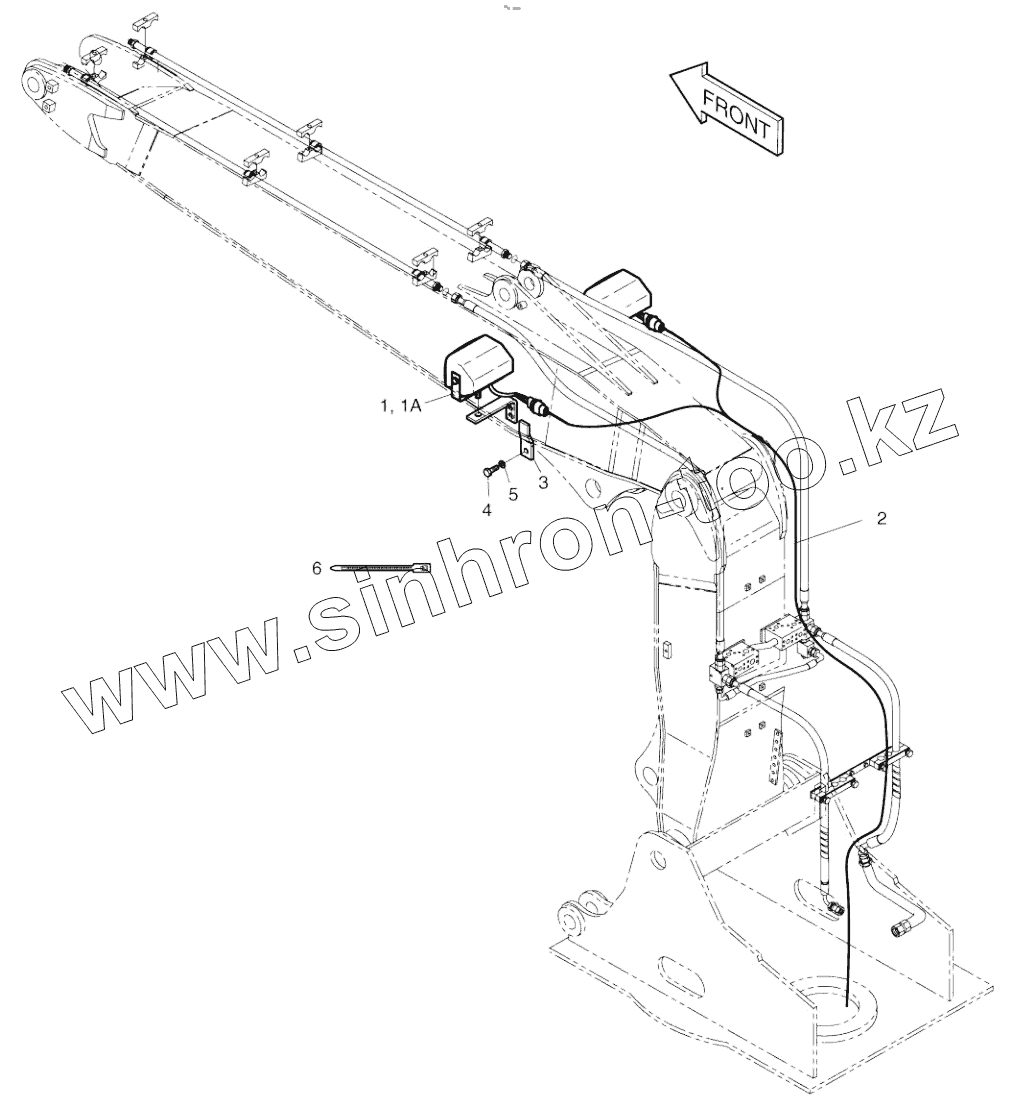

Каталог запасных частей к технике: Doosan SOLAR 180W-V. WORKING LAMP ASSY-ARTI.BOOM

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD VALVE MECHANISM OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP AND COOLING FAN INTAKE AND EXHAUST MANIFOLD TURBO CHARGER AND OIL PIPE FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT-TOP FRAME ENGINE MOUNTING RADIATOR (1001 - 3051) RADIATOR (3052 - ) MUFFLER RESERVE TANK AIR CLEANER ASSY AIR CLEANER PUMP INSTALLATION SWING DEVICE FUEL TANK OIL TANK ENGINE CONTROL ASSY LEVER ASSY-ENGINE SUB OIL COOLER PIPING (1) OIL COOLER PIPING (2) OIL COOLER PIPING (3) MAIN PIPING (1)-PUMP MAIN PIPING (2)-BOOM MAIN PIPING (3)-ARM.BUCKET MAIN PIPING (4)-SWING MAIN PIPING (5)-TRAVEL PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING (9) PILOT PIPING (10) PILOT PIPING (11) PILOT PIPING (12) PILOT PIPING (13) BRAKE PIPING (1) BRAKE PIPING (2) STEERING PIPING STEERING WHEEL ASSY STEERING COLUMN ASSY COLUMN ASSY (1001 - 1895) COLUMN ASSY (1896 - ) CONTROL STAND-L.H. CONTROL STAND-R.H. SEAT AND ELECTRIC BOX COVER SEAT MOUNTING SEAT SEAT MOUNTING-EXCEPT EUROPE (1001 - 1002) SEAT-EXCEPT EUROPE AND U.S.A (1001 - 1002) DUCT COVER ASSY HEATER COVER ASSY CABIN MOUNT ASSY CABIN ASSY CABIN (1) CABIN (2) CABIN (3) CABIN (3) CABIN (5) SUPPORT SUPPORT-CONDENSER COVER (1) COVER (2) COVER (3) COVER (4) COVER (5) BAFFLE ACOUSTIC FOAM ACOUSTIC FOAM-EUROPE OPT. UNDER COVER LUBRICATOR PIPING ELECTRIC BOX ASS`Y ELECTRIC BOX ASSY-ELECTRIC PARTS ELECTRIC PARTS (1)-GAUGE AND SWITCH PANEL ELECTRIC PARTS (2)-CONTROL STAND (R.H.) ELECTRIC PARTS (2)-CONTROL STAND (L.H.) ELECTRIC PARTS (4)-CABIN ELECTRIC PARTS (5)-BATTERY ELECTRIC PARTS (6)-ENGINE ELECTRIC PARTS (7)-RELATED PARTS ELECTRIC PARTS (8)-LAMP PARTS ELECTRIC WIRING (1)-BATTERY ELECTRIC WIRING (2)-ENGINE ELECTRIC WIRING (3)-RELATED PARTS COOLER AND HEATER ASSY (1)- CABIN PART AIRCON UNIT COOLER AND HEATER ASSY (2)- ENGINE PART CHASSIS FRAME POWER TRAIN (1)-FRONT AXLE POWER TRAIN (2)-REAR AXLE POWER TRAIN (3)-T/MISSION.T/MOTOR.C/JOINT POWER TRAIN (4)-PROPELLER SHAFT CHASSIS COMPONENTS DOZER AND OUTRIGGER PIPING BRAKE PIPING (1)-FRONT BRAKE PIPING (2)-REAR STEERING PIPING CHOCKING PIPING PROPELLING PIPING (1)-TRAVEL MOTOR (1001-1630) PROPELLING PIPING (2)-GEAR SHIFT AND TEST PORT (1001-1630) PROPELLING PIPING (3)-DRAIN (1001-1630) PROPELLING PIPING (4)-MOTOR MAKE UP (1001-1630) PROPELLING PIPING (1631-) BLADE BLADE PIPING OUTRIGGER BOOM -5.15m ARM -2.6m BUCKET -0.76m3 FRONT PIPING FRONT LUBRICATION PIPING MAIN PUMP MAIN PUMP-PUMP MAIN PUMP-CONTROL MAIN PUMP-COVER AND HYD. LINE SWING MOTOR SWING REDUCTION GEAR (1001 - 1636) SWING REDUCTION GEAR (1637-) TRAVEL MOTOR (1001 - 1630) TRAVEL MOTOR (1631-) ROTARY GROUP-TRAVEL MOTOR CONTROL PARTS-TRAVEL MOTOR (1001-1630) CONTROL PARTS-TRAVEL MOTOR (1631-) STROKE LIMIT-TRAVEL MOTOR (1001-1630) STROKE LIMIT-TRAVEL MOTOR (1631-) COUNTER BALANCE VALVE-TRAVEL MOTOR (1001-1630) COUNTER BALANCE VALVE-TRAVEL MOTOR (1631-) CONTROL VALVE CONTROL VALVE-ARTI.BOOM (1001-1259) CONTROL VALVE-ARTI.BOOM (1260-) STEERING VALVE PILOT AND T/M SUPPLY VALVE PILOT CHECK VALVE-OUTRIGGER CYL. REMOTE CONTROL VALVE (1001-1405) REMOTE CONTROL VALVE (1406-) REMOTE CONTROL VALVE-3 SWITCH REMOTE CONTROL VALVE-PILOT BRAKE SUPPLY VALVE FOOT BRAKE VALVE BREAKER PACKAGE VALVE PEDAL VALVE-ARTI.BOOM SOLENOID VALVE CENTER JOINT CENTER JOINT BOOM CYLINDER-L.H. BOOM CYLINDER-R.H. ARM CYLINDER BUCKET CYLINDER DOZER CYLINDER-L.H. DOZER CYLINDER-R.H. CHOCKING CYLINDER (1001-1060) CHOCKING CYLINDER-L.H (1061-2107) CHOCKING CYLINDER-L.H (2108-) CHOCKING CYLINDER-R.H (1061-2107) CHOCKING CYLINDER-R.H (2108-) OUTRIGGER CYLINDER BOOM CYLINDER (L.H)-LOCK VALVE BOOM CYLINDER (R.H)-LOCK VALVE ARM CYLINDER-LOCK VALVE BOOM CYLINDER (L.H)-ARTI.BOOM BOOM CYLINDER (R.H)-ARTI.BOOM ARTI.BOOM CYLINDER BOOM CYLINDER (L.H)-L/V FOR ARTI.BOOM BOOM CYLINDER (R.H)-L/V FOR ARTI.BOOM ARTI.BOOM CYLINDER-LOCK VALVE INPUT HOUSING-TRANSMISSION (1001-1630) INPUT SHAFT-TRANSMISSION (1001-1630) INPUT - MISSION (1631 -) HOUSING-TRANSMISSION (1001-1630) HOUSING-MISSION (1631 -) PIPING-TRANSMISSION (1001-1630) OIL PIPE - MISSION (1631 - ) 2ND GEAR CLUTCH-TRANSMISSION (1001-1630) MIDDLE DISC - MISSION (1631 -) 1ST GEAR CLUTCH-TRANSMISSION (1001-1630) COUPLING - MISSION (1631 - ) PLANETARY GEAR-TRANSMISSION (1001-1630) PLANETARY GEAR - MISSION (1631 - ) DISCONNECTION DEVICE-TRANSMISSION (1001-1630) SPUR GEAR-TRANSMISSION (1001-1630) GEAR SHIFTING GOVERNOR-TRANSMISSION (1001-1630) GEAR SHIFTING GOVERNOR-TRANSMISSION (1631 - ) OUTPUT SHAFT-TRANSMISSION (1001-1630) OUTPUT - MISSION (1631 -) INPUT-FRONT AXLE (1001 - 1630) INPUT - FRONT AXLE (1631 - 1943) INPUT - FRONT AXLE (1944 - ) DIFFERENTIAL-FRONT AXLE (1001-1630) DIFFERENTIAL GEAR - FRONT AXLE (1631-1943) DIFFERENTIAL GEAR - FRONT AXLE (1944-) AXLE CASING-FRONT AXLE (1001-1630) AXLE CASING-FRONT AXLE (1631-1943) AXLE CASING-FRONT AXLE (1944-) JOINT HOUSING-FRONT AXLE (1001-1630) JOINT HOUSING-FRONT AXLE (1631-1943) JOINT HOUSING-FRONT AXLE (1944-) OUTPUT-FRONT AXLE (1001-1630) OUTPUT-FRONT AXLE (1631-1943) OUTPUT-FRONT AXLE (1944-) STEERING GEAR-FRONT AXLE (1001-1630) STEERING CYLINDER - FRONT AXLE (1631-) INPUT-REAR AXLE (1001 - 1630) INPUT - REAR AXLE (1631 - 1943) INPUT - REAR AXLE (1944 - ) DIFFERENTIAL-REAR AXLE (1001 - 1630) DIFFERENTIAL GEAR - REAR AXLE (1631-1943) DIFFERENTIAL GEAR - REAR AXLE (1944-) AXLE CASING-REAR AXLE (1001-1630) AXLE CASING-REAR AXLE (1631-) HUB. CARRIER-REAR AXLE (1001 - 1630) HUB. CARRIER-REAR AXLE (1631-) OUTPUT-REAR AXLE (1001 - 1630) OUTPUT-REAR AXLE (1631-) OPTION VALVE TOOLS SPARE PARTS FUEL FILLER PUMP ASSY SUN VISOR ASSY SUN ROOF ASSY NOISE FILTER ASSY-EUROPE CABIN LAMP ASSY 6-LAMP AND BEACON (TELESCOPIC) BEACON RETURN FILTER PRESS SWITCH ALTERNATOR OVERLOAD WARNING ASSY CABIN LOW GUARD REAR OUTRIGGER OUTRIGGER PIPING-REAR FRONT DOZER PIPING CHASSIS FRAME CHASSIS COMPONENT-EXPORT ARM-2.2M ARM-3.1M ARM PIPING-ARM 2.2M ARM PIPING-ARM 3.1M BUCKET-0.34m3 BUCKET-0.45m3 BUCKET-0.57m3 BUCKET-0.7m3 BUCKET-0.81m3 BUCKET-0.93m3 BUCKET-0.66M3 (39")-SIDE PIN BUCKET-0.60M3 (36")-VERTICAL PIN BUCKET-0.73M3 (36")-SIDE PIN BUCKET-0.66M3 (39")-VERTICAL PIN BUCKET-0.80M3 (42")-SIDE PIN BUCKET-0.72M3 (42")-VERTICAL PIN MAIN PIPING-ONE AND TWO WAY PILOT PIPING-ONE WAY AND ARTI.BOOM (1001-1180) PILOT PIPING-ONE WAY AND ARTI.BOOM (1181-) BOOM PIPING-ONE AND TWO WAY BOOM PIPING-ONE AND TWO WAY KOREA ARM PIPING-ARM 2.6M (ONE AND TWO WAY) ARM PIPING-ARM 2.2M (ONE AND TWO WAY) ARM PIPING-ARM 3.1M (ONE AND TWO WAY) NAME PLATE-ONE AND TWO WAY LOCK VALVE PIPING ARTI.BOOM ASSY FLOOR ASSY-ARTI.BOOM (SINGLE) FLOOR ASSY-TILT AND ARTI.BOOM (DOUBLE) STAY ASSY-ARTI.BOOM MAIN PIPING FOR ARTI. BOOM (1001-1259) MAIN PIPING FOR ARTI. BOOM (1260-) PILOT PIPING-ARTI.BOOM FRONT PIPING-ARTI.BOOM ARM PIPING-ARM 2.2m (ARTI.BOOM) ARM PIPING-ARM 2.6m (ARTI.BOOM) ARM PIPING-ARM 3.1m (ARTI.BOOM) FRONT LUBRICATION PIPING-ARTI.BOOM LOCK VALVE PIPING-ARTI.BOOM MAIN PIPING-ONE AND TWO WAY (ARTI.BOOM) FRONT PIPING-ONE AND TWO WAY (ARTI.BOOM) WORKING LAMP ASSY-ARTI.BOOM FRONT COMBI. LAMP-EUROPE (1034-) COUNTER WEIGHT-ARTI.BOOM BOOM PIPING (5.15M)-ROTATION AND TILTING (1098-) ARM PIPING (2.6M)-ROTATION AND TILTING (1098-) FRONT PIPING-PERO-ARTI.BOOM (1098-) FLOOR ASSY-MULTI PIPING (1098-) PILOT PIPING-ONE WAY-ED (1001-1180) PILOT PIPING-ONE WAY-ED (1181-) JOYSTICK VALVE ASSY-3 SWITCH MAIN PIPING-ROTATION AND TILTING (1001-1285) MAIN PIPING-ROTATION AND TILTING (1286-) BOOM PIPING-PE3C MAIN PIPING-PE3C PILOT PIPING-PE3C AND PERO PILOT PIPING-PE3C PILOT PIPING-PERO MAIN PIPING-PE3C-ARTI.BOOM MAIN PIPING-ROTATION AND TILTING-ARTI.BOOM FRONT PIPING-PE3C-ARTI.BOOM PILOT PIPING-PE3C AND PERO-ARTI.BOOM PILOT PIPING-PE3C OR PERO-ARTI.BOOM AIR CLEANER ASSY-OIL WASHED F.O.G.S GUARD ARM PIPING - ARM 2.6M (CLAMSHELL) BLADE ASSY - GERMAN TRAVEL MOTOR - GERMAN ALTERNATOR - 80A

1

1A

2

3

4

5

Позиция на иллюстрации	Заводской номер детали		Название детали
534-00057	534-00057		WORKING LAMP ASS'Y
1	2534-1160		LAMP;WORKING
1A	2515-1022D1		BULB;HALOGEN
2	2530-1609D15		HARNESS;WORKING LAMP
3	2197-1660		BRACKET;HOUSING W15
4	S0508353		BOLT
5	S5102503		WASHER;SPRING
6	2124-1622D1		CLIP;BAND (146L)

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
