SOLAR 180W-V
PILOT PIPING (11)

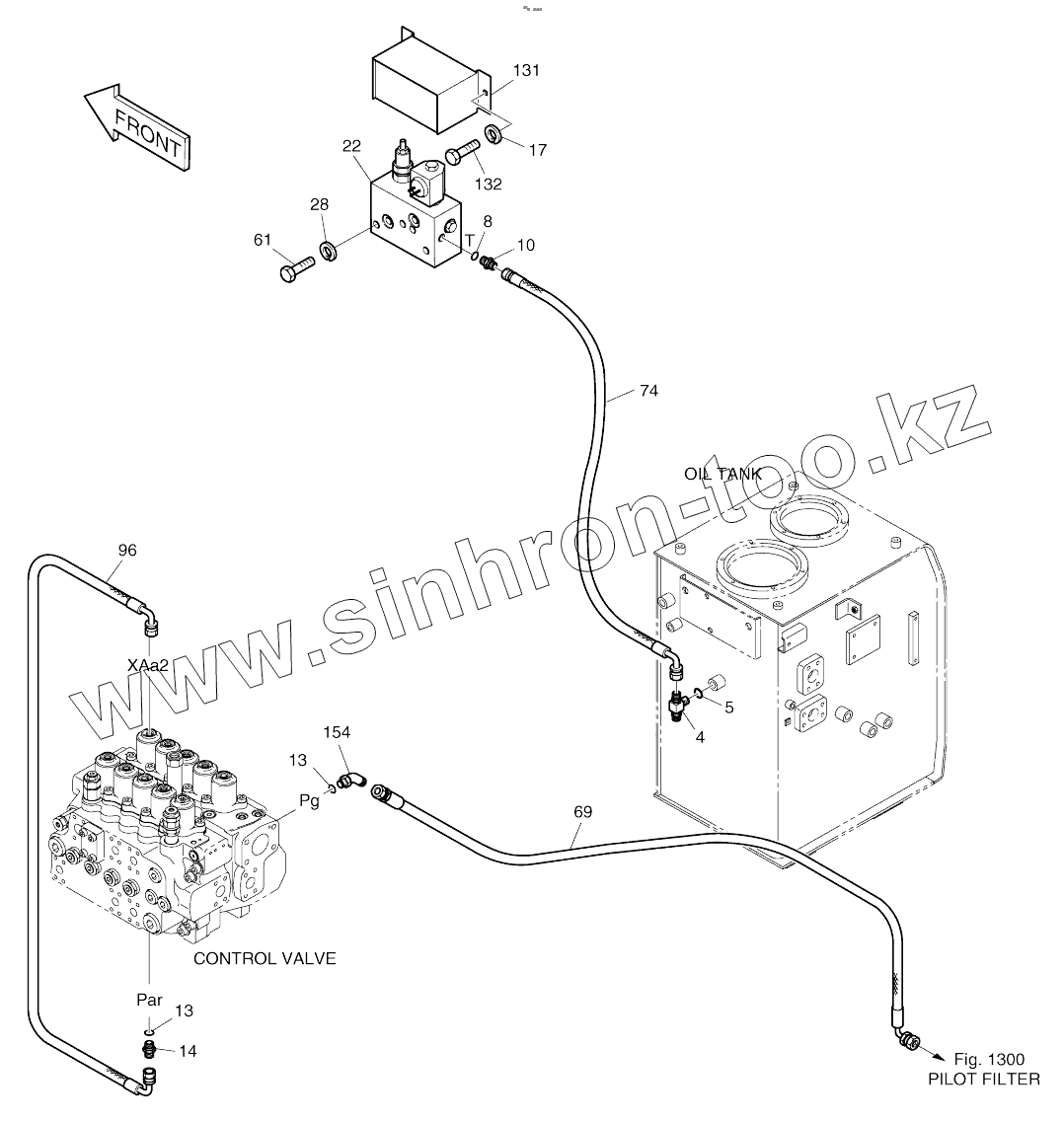

Каталог запасных частей к технике: Doosan SOLAR 180W-V. PILOT PIPING (11)
