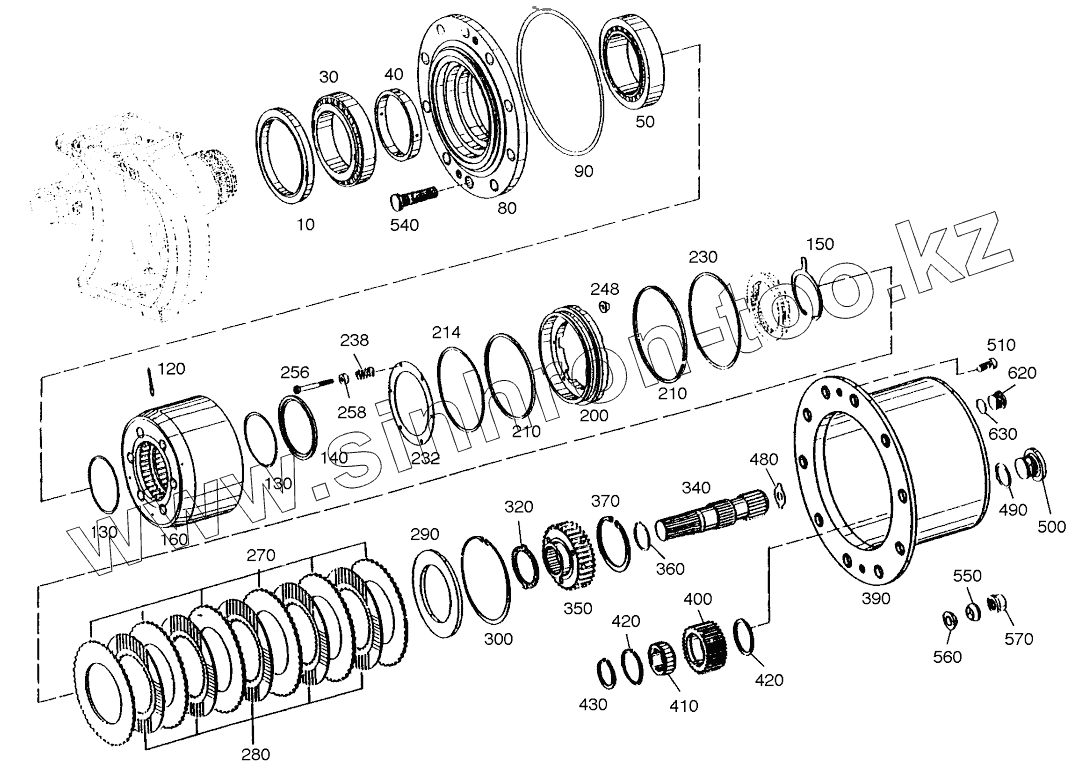

Каталог запасных частей к технике: Doosan SOLAR 180W-V. OUTPUT-FRONT AXLE (1001-1630)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
10
30
40
40
40
40
40
40
40
40
40
40
40
40
50
80
90
120
130
130
140
150
160
200
210
210
214
230
232
238
248
256
258
270
270
270
280
290
300
320
340
340
350
350
360
370
390
400
410
420
420
430
480
480
480
480
480
480
480
490
500
510
540
550
560
570
620
630
Позиция на иллюстрации Заводской номер детали Название детали
10 1.180-00536 SEAL,SHAFT
30 1.109-00093 BEARING, ROLLER
40 2.115-00227 RING, OPTIONAL
40 2.115-00226 RING, OPTIONAL
40 2.115-00225 RING, OPTIONAL
40 2.115-00220 RING, OPTIONAL
40 1.115-00290 RING, OPTIONAL
40 2.115-00219 RING, OPTIONAL
40 2.115-00221 RING, OPTIONAL
40 2.115-00222 RING, OPTIONAL
40 2.115-00223 RING, OPTIONAL
40 1.115-00291 RING, OPTIONAL
40 2.115-00224 RING, OPTIONAL
40 1.115-00292 RING, OPTIONAL
50 1.109-00087 BEARING,ROLLER
80 1.219-00002 HUB
90 1.180-00136 O-ring
120 1.181-00047 PLUG
130 1.180-00120 RING,O, S130W-V
140 2.115-00182 RING,ANGLE
150 1.115-00035 RING,RETAINING
160 1.403-00077 GEAR,RING
200 1.409-00080 PISTON
210 1.180-00371 U-RING
214 2.115-00449 RING,SUPPORT
230 1.115-00113 RING, SUPPORT
232 1.114-00232 SHIM, SUPPORT
238 1.131-00110 Spring, compr.
248 1.121-00048 NUT,LOCK
256 1.120-00104 CAP,SCREW
258 1.425-00019 Sleeve, spring
270 2.222-00072 DISC,CLUTCH, OUTER
270 2.222-00071 DISC,CLUTCH, OUTER
270 4462 305 079 Disc, o.clutch
280 0501 314 381 Disc, i.clutch
290 2.114-00620 SHIM, END
300 1.115-00036 RING,RETAINING
320 1.114-00507 WASHER,THRUST
340 1.405-00089 SHAFT,SUN GEAR
340 130712-00060 SHAFT,SUN GEAR
350 2.217-00041 CARRIER,DISK
350 100502-00010 CARRIER,DISK
360 1.115-00030 RING, RETAINING
370 1.115-00037 RING, RETAINING
390 1.230-00048 CARRIER,PLANETARY GEAR
400 4472 364 006 Gear, planet
410 1.109-00089 BEARING, ROLLER
420 1.115-00179 RING,ANGLE
430 1.115-00038 RING, RETAINING
480 1.114-00517 WASHER
480 1.114-00522 WASHER
480 1.114-00520 WASHER
480 1.114-00518 WASHER
480 1.114-00523 WASHER
480 1.114-00521 WASHER
480 1.114-00519 WASHER
490 2.180-00277 O-RING
500 1.181-00125 SCREW,PLUG
510 1.120-00109 Screw, cap
540 4472 319 208 Bolt, wheel
550 0630 307 004 Washer, spring
560 1.115-00181 RING,CENTERING
570 1.121-00092 NUT, WHEEL
620 1.120-00182 Plug, screw
630 1.180-00103 O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
