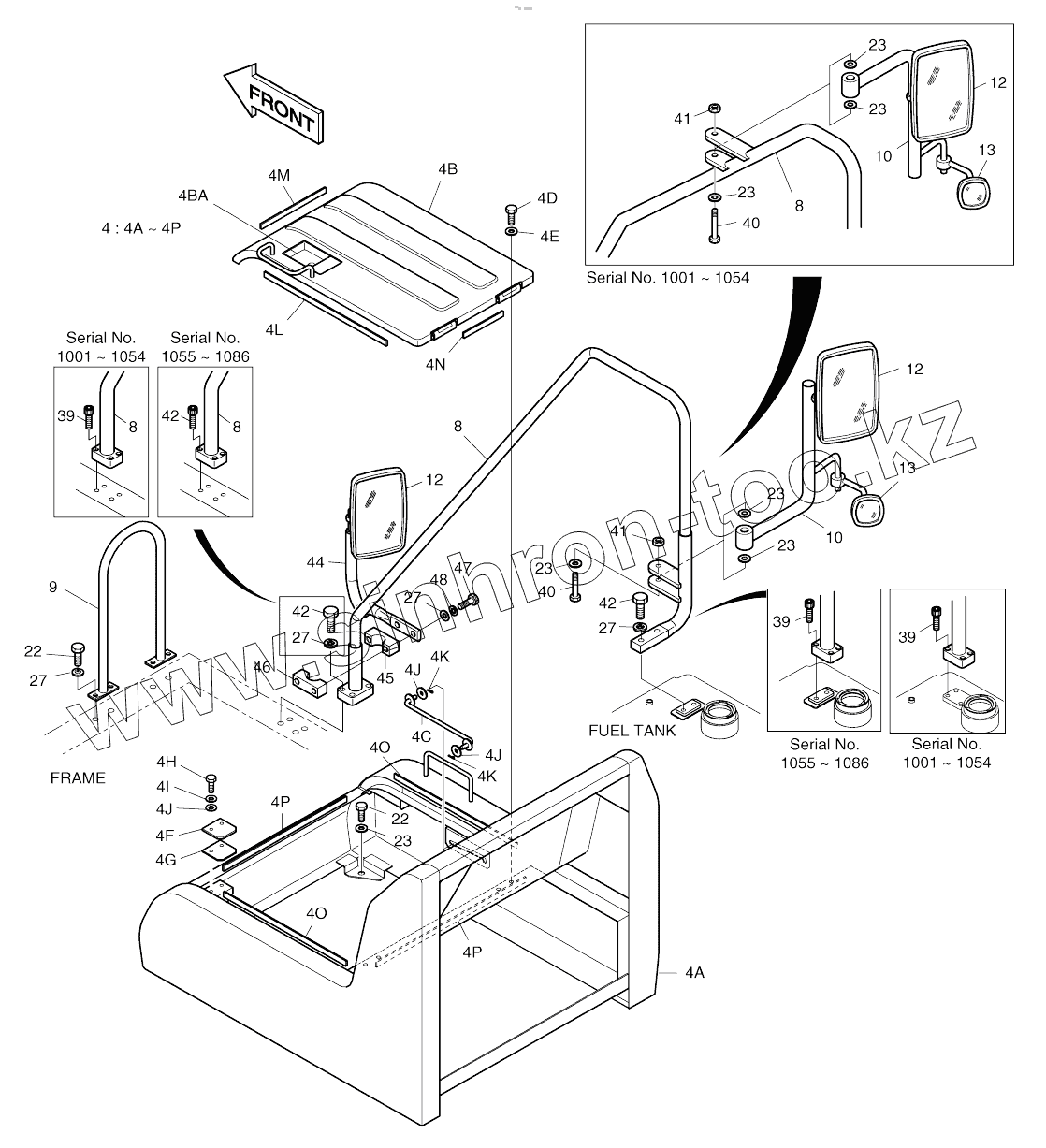

Каталог запасных частей к технике: Doosan SOLAR 180W-V. COVER (4)
4
4
4
4
4
4A
4A
4A
4A
4B
4B
4B
4B
4B
4BA
4BA
4BA
4BA
4BA
4C
4D
4E
4F
4G
4H
4I
4J
4J
4J
4K
4K
4L
4M
4N
4O
4O
4P
4P
4P
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
9
10
10
10
10
10
10
12
12
12
12
12
12
12
12
12
13
13
22
22
23
23
23
23
23
23
23
27
27
27
27
27
27
27
27
27
27
27
27
39
39
39
40
40
41
41
42
42
42
42
42
42
44
45
46
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 621-02494 | 621-02494 | COVER ASSY | |
| 4 | 621-02497 | BATTERY COVER ASSY | |
| 4 | 621-02497A | BATTERY COVER ASSY | |
| 4 | 621-02497B | BATTERY COVER ASSY | |
| 4 | 621-02497E | BATTERY COVER ASSY | |
| 4 | 621-02497G | BATTERY COVER ASSY | |
| 4A | 621-02498 | COVER, BATTERY | |
| 4A | 621-02498A | COVER, BATTERY | |
| 4B | 2627-1089C | Cover | |
| 4B | 2627-1089E | Cover | |
| 4B | 621-02496B | COVER | |
| 4B | 2627-1089G | Cover | |
| 4B | K1007319 | Cover | |
| 4BA | 2125-9054 | Lock | |
| 4BA | 125-00085 | LOCK | |
| 4BA | 125-00082 | LOCK | |
| 4BA | 125-00082A | LOCK | |
| 4BA | K1006422 | LOCK | |
| 4C | 2145-1243 | STAY | |
| 4D | S0512053 | BOLT M10X1.5X25 | |
| 4E | S5010613 | WASHER;PLAIN | |
| 4F | 2621-3003A | PLATE | |
| 4G | 2114-1727A | SHIM PL1.2 | |
| 4H | S0555753 | BOLT M8X1.25X25 | |
| 4I | S5010513 | WASHER;PLAIN M8 | |
| 4J | 2114-1058D29 | WASHER | |
| 4K | 2705-9002 | PIN;LOCK | |
| 4L | BUSHING | Bushing, rubber | |
| 4M | BUSHING | Bushing, rubber | |
| 4N | BUSHING | Bushing, rubber | |
| 4O | BUSHING | Bushing, rubber | |
| 4P | BUSHING | Bushing, rubber | |
| 8 | 145-00075 | Stay | |
| 8 | 145-00113 | Stay | |
| 8 | 145-00113A | Stay | |
| 9 | 2145-1168 | Stay | |
| 10 | 145-00076 | Stay | |
| 10 | 145-00095 | Stay | |
| 10 | K1002991B | Stay | |
| 12 | 903-00052 | MIRROR;MAIN | |
| 12 | 903-00068 | MIRROR;MAIN | |
| 12 | 903-00068 | MIRROR;MAIN | |
| 13 | 2903-6005 | Mirror, under | |
| 22 | S0515253 | BOLT M12X1.75X30 | |
| 23 | 2114-1058D30 | WASHER;PLAIN | |
| 27 | S5010713 | WASHER;PLAIN | |
| 27 | S5010713 | WASHER;PLAIN | |
| 27 | S5010713 | WASHER;PLAIN | |
| 39 | S2212466 | BOLT;SOCKET M10X1.5X40 | |
| 40 | S0561553 | BOLT M12X1.75X90 | |
| 41 | S4012733 | NUT M12 | |
| 42 | S2215466 | BOLT;SOCKET | |
| 42 | S0560653 | Bolt | |
| 44 | 145-00132A | Stay | |
| 45 | 124-00216 | CLAMP | |
| 46 | 124-00217 | CLAMP | |
| 47 | S0561253 | BOLT M12X1.75X75 | |
| 48 | S5102703 | WASHER;SPRING M10 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
