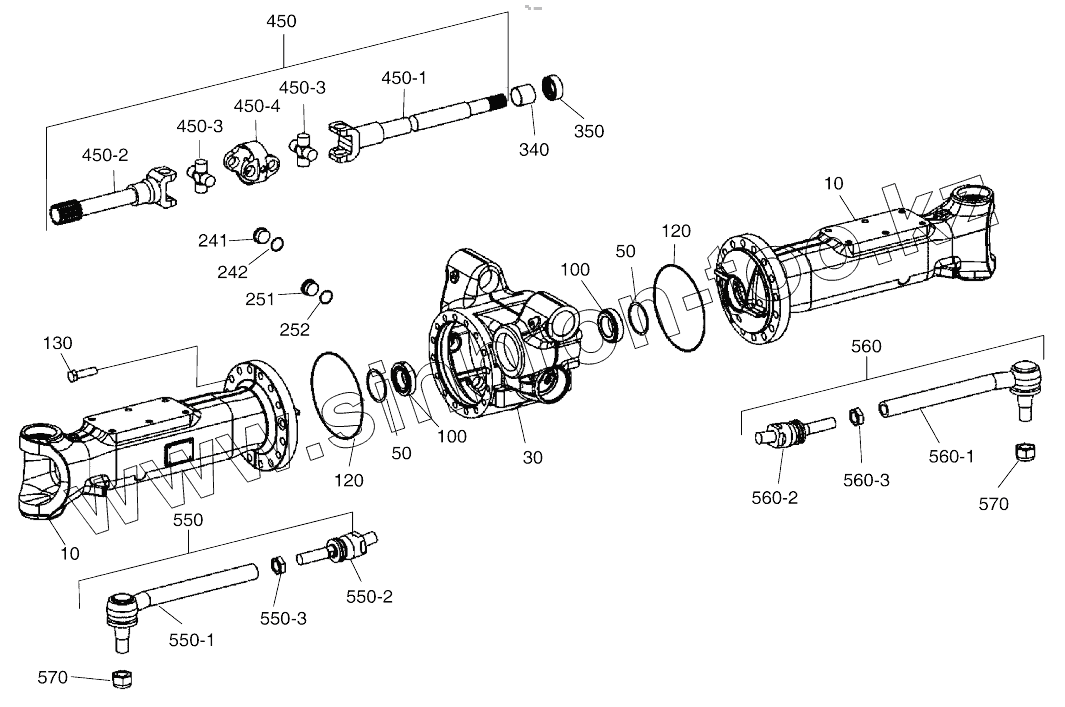

Каталог запасных частей к технике: Doosan SOLAR 180W-V. AXLE CASING-FRONT AXLE (1944-)
10
10
30
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
100
100
120
120
130
241
242
251
252
340
350
450
450-1
450-2
450-3
450-3
450-4
550
550-1
550-2
550-3
560
560-1
560-2
560-3
570
570
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 110913-00106 | CASE,AXLE | |
| 30 | 190113-00017 | HOUSING, AXLE, DIFFERENTIAL | |
| 50 | 1.114-00060 | SHIM | |
| 50 | 1.114-00061 | SHIM | |
| 50 | 2.114-00571 | SHIM | |
| 50 | 1.114-00063 | SHIM | |
| 50 | 1.114-00065 | SHIM | |
| 50 | 1.114-00066 | SHIM | |
| 50 | 2.114-00572 | SHIM | |
| 50 | 2.114-00573 | SHIM | |
| 50 | 2.114-00574 | SHIM | |
| 50 | 2.114-00575 | SHIM | |
| 50 | 2.114-00576 | SHIM | |
| 50 | 1.114-00068 | SHIM | |
| 50 | 1.114-00069 | SHIM | |
| 50 | 1.114-00070 | SHIM | |
| 50 | 2.114-00577 | SHIM | |
| 50 | 1.114-00071 | SHIM | |
| 50 | 1.114-00073 | SHIM | |
| 50 | 1.114-00074 | SHIM | |
| 50 | 2.114-00579 | SHIM | |
| 50 | 1.114-00079 | SHIM | |
| 50 | 1.114-00083 | SHIM | |
| 50 | 1.114-00085 | SHIM | |
| 50 | 2.114-00580 | SHIM | |
| 50 | 1.114-00091 | SHIM | |
| 50 | 1.114-00095 | SHIM | |
| 50 | 1.114-00097 | SHIM | |
| 50 | 1.114-00101 | SHIM | |
| 50 | 1.114-00103 | SHIM | |
| 50 | 1.114-00108 | SHIM | |
| 50 | 1.114-00110 | SHIM | |
| 50 | 1.114-00113 | SHIM | |
| 50 | 1.114-00114 | SHIM | |
| 50 | 1.114-00125 | SHIM | |
| 50 | 1.114-00198 | SHIM | |
| 50 | 1.114-00202 | SHIM | |
| 50 | 1.114-00204 | SHIM | |
| 50 | 1.114-00203 | SHIM | |
| 50 | 1.114-00207 | SHIM | |
| 50 | 1.114-00208 | SHIM | |
| 50 | 1.114-00209 | SHIM | |
| 50 | 1.114-00057 | SHIM | |
| 100 | K9000114 | BEARING, ROLLER | |
| 120 | 2.180-00450 | O-ring | |
| 130 | 1.120-00134 | SCREW, HEXAGON | |
| 241 | K9001478 | Plug, screw | |
| 242 | 1.180-00135 | O-ring | |
| 251 | K9001479 | Plug, screw | |
| 252 | 1.180-00135 | O-ring | |
| 340 | 1.110-00023 | Bush | |
| 350 | K9007270 | Seal, shaft | |
| 450 | 130712-00408 | SHAFT ASSY,UNIVERSAL | |
| 450-1 | 230106-00078 | FORK, JOINT | |
| 450-2 | 230106-00079 | FORK, JOINT | |
| 450-3 | K9004067 | Cross, joint | |
| 450-4 | K9004064 | Fork, shift | |
| 550 | K9001490 | ROD, TRACK | |
| 550-1 | K9001491 | JOINT, BALL | |
| 550-2 | K9001492 | JOINT, AXIAL | |
| 550-3 | K9001493 | NUT | |
| 560 | K9001494 | ROD, TRACK | |
| 560-1 | K9001495 | JOINT, BALL | |
| 560-2 | K9001492 | JOINT, AXIAL | |
| 560-3 | K9001493 | NUT | |
| 570 | 1.121-00022 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
