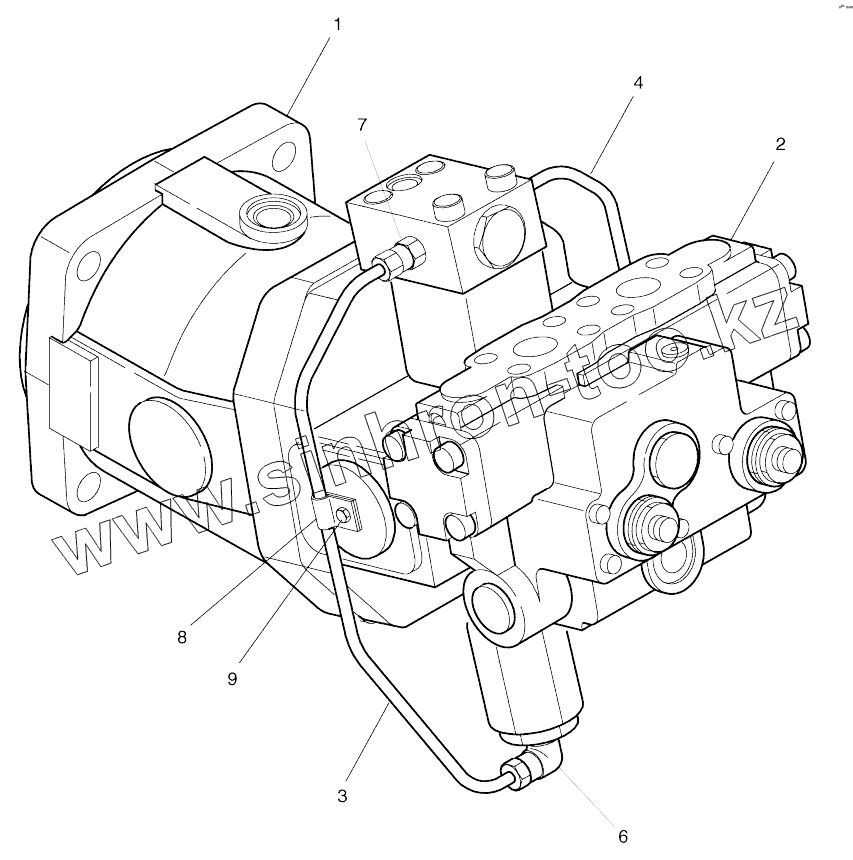

Каталог запасных частей к технике: Doosan SOLAR 170W-V. TRAVEL MOTOR

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD VALVE MECHANISM OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP AND COOLING FAN INTAKE AND EXHAUST MANIFOLD FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT-TOP OVER HAUL GASKET KIT-ALL FRAME ENGINE MOUNTING MUFFLER RADIATOR RESERVE TANK AIR CLEANER ASSY AIR CLEANER PUMP INSTALLATION (1001-1216) PUMP INSTALLATION (1217-) SWING DEVICE FUEL TANK OIL TANK ENGINE CONTROL ASSY LEVER ASSY-ENGINE SUB MAIN PIPING (1)-PUMP (1001-1216) MAIN PIPING (1)-PUMP (1217-) MAIN PIPING (2)-BOOM MAIN PIPING (3)-ARM.BUCKET MAIN PIPING (4)-SWING MAIN PIPING (5)-TRAVEL OIL COOLER PIPING (1) OIL COOLER PIPING (2) (1001-1216) OIL COOLER PIPING (2) (1217-) OIL COOLER PIPING (3) STEERING PIPING PILOT PIPING (1) (1001-1216) PILOT PIPING (1) (1217-) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING (9) PILOT PIPING (10) PILOT PIPING (11) PILOT PIPING (12) PILOT PIPING (13) (1001-1216) PILOT PIPING (13) (1217-) BRAKE PIPING (1) BRAKE PIPING (2) STEERING ASSY STEERING COLUMN ASSY CABIN ASSY CABIN (1) CABIN (2) CABIN (3) CABIN (4) CABIN (5) CONTROL STAND-L.H. CONTROL STAND-R.H. SEAT AND ELECTRIC BOX COVER SEAT MOUNTING ASSY (1003-) SEAT MOUNTING ASSY-EUROPE SEAT-EXCEPT EUROPE AND U.S.A SEAT-EUROPE AND U.S.A DUCT COVER ASSY HEATER COVER ASSY ELECTRIC BOX ASSY ELECTRIC BOX ASSY-ELECTRIC PARTS ELECTRIC PARTS (1)-CONTROL STAND (R.H.) ELECTRIC PARTS (2)-CONTROL STAND (L.H.) ELECTRIC PARTS (3)-CABIN ELECTRIC PARTS (4)-CONSOLE BOX ELECTRIC PARTS (5)-BATTERY ELECTRIC PARTS (6)-ENGINE ALTERNATOR [1001-1132] ELECTRIC PARTS (7)-RELATED PARTS ELECTRIC WIRING (1)-RELATED PARTS ELECTRIC WIRING (2)-ENGINE AIRCONDITIONER (1) AIRCONDITIONER (2)-AIRCON UNIT HEATER PIPING SUPPORT SUPPORT-CONDENSER COVER (1) COVER (2) COVER (3) COVER (4) COVER (5) BAFFLE ACOUSTIC FOAM ACOUSTIC FOAM-EUROPE OPT. (1095-) UNDER COVER LUBRICATOR PIPING CHASSIS FRAME POWER TRAIN (1)-FRONT AXLE POWER TRAIN (2)-REAR AXLE POWER TRAIN (3)-T/MISSION.T/MOTOR.C/JOINT POWER TRAIN (4)-PROPELLER SHAFT CHASSIS COMPONENTS DOZER AND OUTRIGGER PIPING BRAKE PIPING (1)-FRONT BRAKE PIPING (2)-REAR STEERING PIPING CHOCKING PIPING PROPELLING PIPING (1)-TRAVEL MOTOR PROPELLING PIPING (2)-GEAR SHIFT AND TEST PORT PROPELLING PIPING (3)-DRAIN PROPELLING PIPING (4)-MOTOR MAKE UP BLADE (1001-1145) BLADE (1146-) BLADE PIPING (1001-1145) BLADE PIPING (1146-) OUTRIGGER BOOM-5.15m ARM-2.6m BUCKE-0.76m3 FRONT PIPING FRONT LUBRICATOR MAIN PUMP (1001-1216) MAIN PUMP (1217-) MAIN PUMP-PUMP (1217-) MAIN PUMP-CONTROL (1217-) MAIN PUMP-COVER AND HYD. LINE (1217-) CONTROL VALVE SWING MOTOR REDUCTION GEAR TRAVEL MOTOR PISTON MOTOR ROTARY GROUP REGULATOR-TRAVEL MOTOR CONTROL PARTS VALVE ASSY COUNTER BALANCE VALVE STROKE LIMIT STEERING VALVE PILOT AND T/M SUPPLY VALVE REMOTE CONTROL VALVE (1001-1029) REMOTE CONTROL VALVE (1030-) DOZER REMOCON VALVE OUTRIGGER BRAKE VALVE PILOT CHECK VALVE-OUTRIGGER CYL. SOLENOID VALVE BRAKE SUPPLY VALVE BREAKER PACKAGE VALVE BOOM CYLINDER-L.H. BOOM CYLINDER-R.H. ARM CYLINDER BUCKET CYLINDER DOZER CYLINDER-L.H. DOZER CYLINDER-R.H. CHOCKING CYLINDER (1001-1239) CHOCKING CYLINDER-L.H (1240-) CHOCKING CYLINDER-R.H (1240-) OUTRIGGER CYLINDER CENTER JOINT INPUT HOUSING-TRANSMISSION INPUT SHAFT-TRANSMISSION HOUSING-TRANSMISSION PIPING-TRANSMISSION 2ND GEAR CLUTCH-TRANSMISSION 1ST GEAR CLUTCH-TRANSMISSION PLANETARY GEAR-TRANSMISSION DISCONNECTION DEVICE-TRANSMISSION SPUR GEAR-TRANSMISSION GEAR SHIFTING GOVERNOR-TRANSMISSION OUTPUT SHAFT-TRANSMISSION INPUT-REAR AXLE DIFFERENTIAL-REAR AXLE AXLE CASING-REAR AXLE HUB. CARRIER-REAR AXLE OUTPUT-REAR AXLE INPUT-FRONT AXLE DIFFERENTIAL-FRONT AXLE AXLE CASING-FRONT AXLE JOINT HOUSING-FRONT AXLE OUTPUT-FRONT AXLE STEERING GEAR-FRONT AXLE BOOM CYLINDER (L.H)-LOCK VALVE BOOM CYLINDER (R.H)-LOCK VALVE ARM CYLINDER-LOCK VALVE CONTROL VALVE-ARTI.BOOM (1034-) PEDAL VALVE-ARTI.BOOM (1034-) BOOM CYLINDER (L.H)-ARTI.BOOM (1034-) BOOM CYLINDER (R.H)-ARTI.BOOM (1034-) ARTI.BOOM CYLINDER (1034-) BOOM CYLINDER (L.H)-L/V FOR ARTI.BOOM (1034-) BOOM CYLINDER (R.H)-L/V FOR ARTI.BOOM (1034-) ARTI.BOOM CYLINDER-LOCK VALVE (1034-) TOOLS SPARE PARTS FUEL FILLER PUMP ASSY AIRCLEANER-CLEANER CABIN LAMP-OPT. ROTATING BEACON-OPT. SWING ALARM-OPT. CABIN-WINDOW GUARD NOISE FILTER ASSY-EUROPE SUN VISOR ROOF COVER CHASSIS FRAME-OUTRIGGER (BOLTING) (1001-1145) OUTRIGGER-REAR (1001-1145) OUTRIGGER-REAR (1146-) OUTRIGGER PIPING-REAR (1001-1145) OUTRIGGER PIPING-REAR (1146-) CHASSIS FRAME-FRONT DOZER (BOLTING) DOZER PIPING-FRONT DOZER RETURN FILTER SWITCH CHASSIS COMPONENT-EXPORT ARM-2.2M ARM PIPING-ARM 2.2M ARM-3.1M ARM PIPING-ARM 3.1M BUCKET-0.34m3 BUCKET-0.45m3 BUCKET-0.57m3 BUCKET-0.70m3 BUCKET-0.81m3 BUCKET-0.93m3 BUCKET-0.66M3 (39")-SIDE PIN BUCKET-0.60M3 (36")-VERTICAL PIN BUCKET-0.73M3 (36")-SIDE PIN BUCKET-0.66M3 (39")-VERTICAL PIN BUCKET-0.80M3 (42")-SIDE PIN BUCKET-0.72M3 (42")-VERTICAL PIN MAIN PIPING-ONE AND TWO WAY PILOT PIPING-ONE WAY BOOM PIPING-ONE AND TWO WAY BOOM PIPING-ONE AND TWO WAY (1075-) ARM PIPING-ARM 2.6M (ONE AND TWO WAY) ARM PIPING-ARM 2.2M (ONE AND TWO WAY) ARM PIPING-ARM 3.1M (ONE AND TWO WAY) NAME PLATE-ONE AND TWO WAY LOCK VALVE PIPING BOOM ASSY (1034-) MAIN PIPING-ARTI.BOOM (1034-1139) MAIN PIPING FOR ARTI. BOOM (1140-) PILOT PIPING-ARTI.BOOM (1034-) FRONT PIPING-ARTI.BOOM (1034-) ARM PIPING-ARM 2.6M (ARTI.BOOM) (1034-) ARM PIPING-ARM 2.2M (ARTI.BOOM) (1034-) FRONT LUBRICATION PIPING-ARTI.BOOM (1034-) LOCK VALVE PIPING-ARTI.BOOM (1034-) MAIN PIPING-ONE AND TWO WAY (ARTI.BOOM) (1034-) FRONT PIPING-ONE AND TWO WAY (ARTI.BOOM) (1034-) WORKING LAMP ASSY-ARTI.BOOM (1034-) CABIN ASSY (1034-1099) FLOOR ASSY-ARTI.BOOM (1023-) STAY ASSY-ARTI.BOOM (1182-)

2401-9237KT

1

2

3

4

6

7

8

9

Позиция на иллюстрации	Заводской номер детали		Название детали
401-00104	401-00104		MOTOR, TRAVEL
2401-9237KT	2401-9237KT		Seal kit
1	B5412Z9196-0		MOTOR, PISTON
2	J8130P9227-2		COUNTER BALANCE VALVE
3	1100566533		Pipe
4	1100566542		Pipe
6	1100336864		Elbow
7	1100314112		Adapter
8	1100082759		Clamp
9	1301535002		Bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
