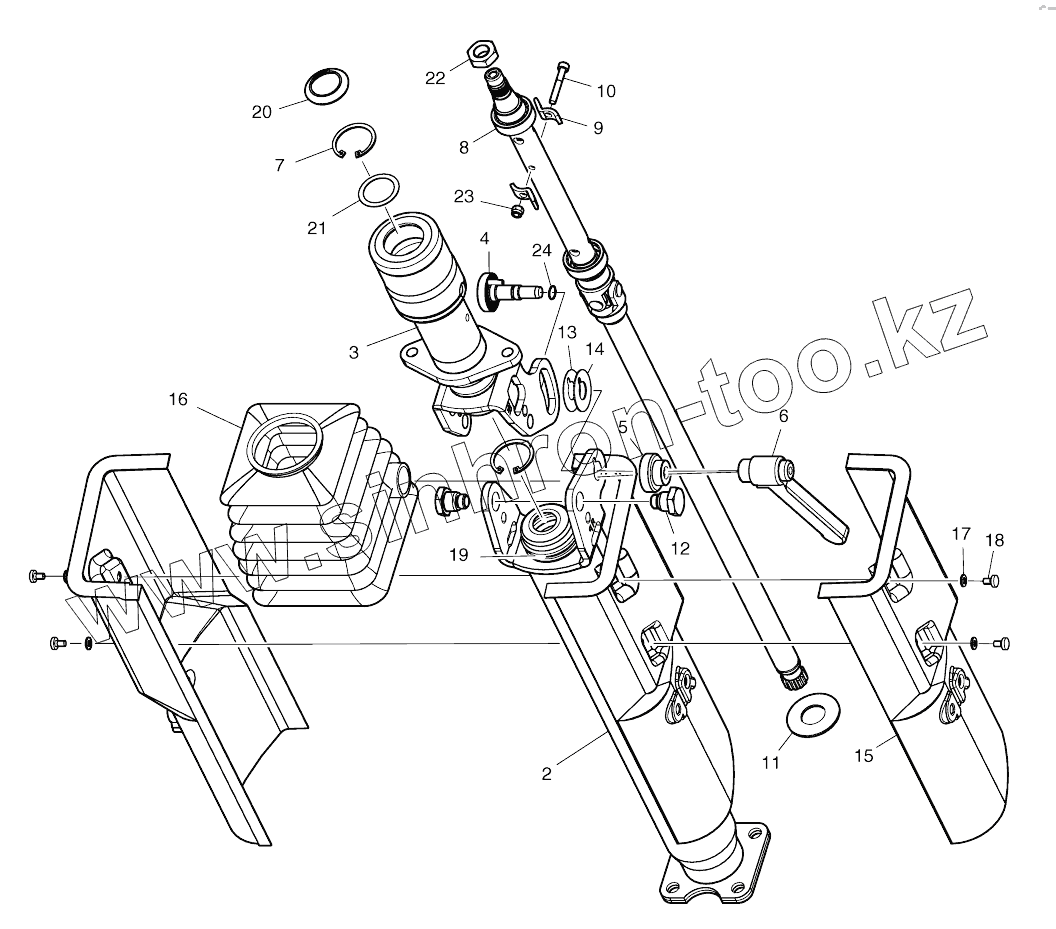

303-00003
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Позиция на иллюстрации
Заводской номер детали
Название детали
303-00003
303-00003
Column assy
2
2.621-00004
Tube, complete upper
3
2.621-00005
Tube, complete upper
4
2.123-00301
Pin, tilt registry complete
5
2.114-01347
Spacer
6
2.133-00001
Lever, handle
7
2.115-00213
Ring, seeger
8
2.405-00241
Shaft, top subassemble
9
2.713-00002
Tooth
10
2.120-00847
Screw
11
2.197-00071
Support, joint
12
2.120-00848
Screw
13
2.114-01348
Shim
14
2.114-01349
Shim
15
2.621-00006
Case, abs upper
16
2.160-00016
Bellows
17
2.114-01350
Washer
18
2.120-00849
Screw
19
2.160-00017
Tube, protection
20
2.198-00003
Rubber, protection
21
2.114-00124
Shim
22
2.121-00058
Nut
23
2.121-00264
Nut, selflocking
24
2.180-01228
O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
