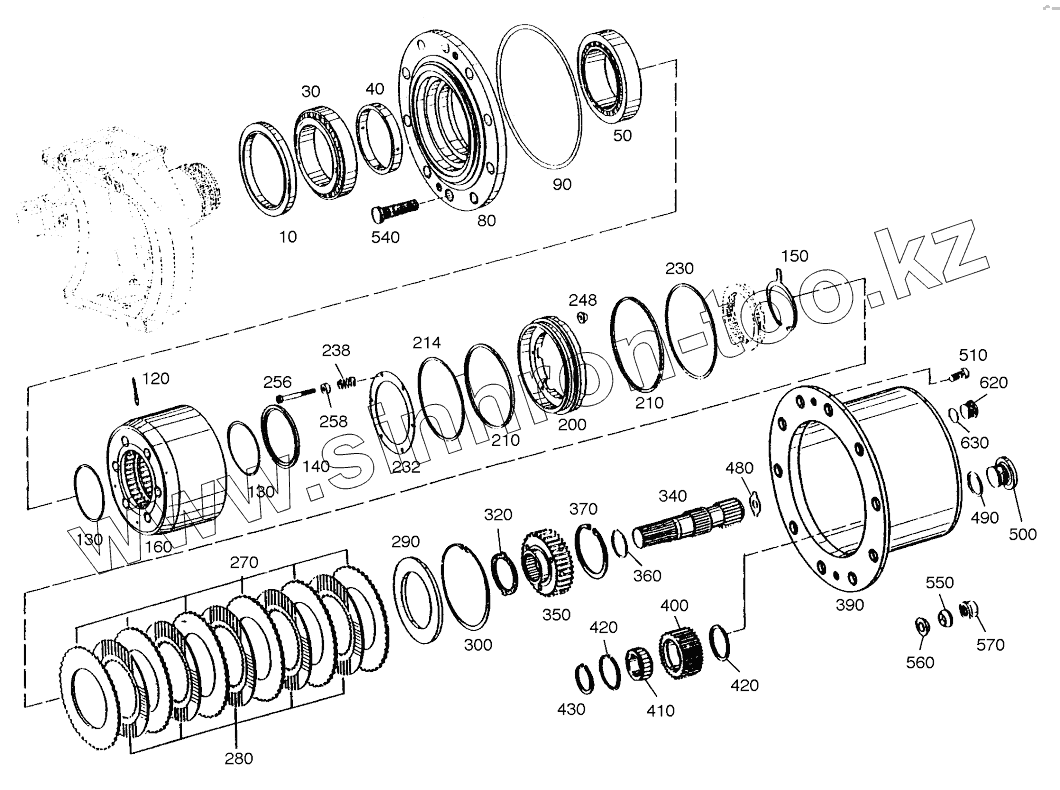

Каталог запасных частей к технике: Doosan SOLAR 170W-V. OUTPUT-FRONT AXLE

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
10
30
40
40
40
40
40
40
40
40
40
40
40
40
50
80
90
120
130
130
140
150
160
160
200
210
210
214
230
232
238
248
256
258
270
270
270
280
290
300
320
340
350
360
370
390
400
410
420
420
430
480
480
480
480
480
480
480
490
500
510
540
550
560
570
620
630
Позиция на иллюстрации Заводской номер детали Название детали
10 0750 110 156 Seal, shaft
30 0750 117 652 Bearing, roller
40 0730 161 833 Ring, optional
40 0730 161 832 Ring, optional
40 0730 161 831 Ring, optional
40 0730 161 830 Ring, optional
40 0730 161 829 Ring, optional
40 0730 161 828 Ring, optional
40 0730 161 827 Ring, optional
40 0730 162 560 Ring, optional
40 0730 162 561 Ring, optional
40 0730 162 562 Ring, optional
40 0730 162 563 Ring, optional
40 0730 162 564 Ring, optional
50 0750 117 167 Bearing, roller
80 4472 373 227 HUB
90 0634 304 060 O-ring
120 0631 405 028 Plug
130 0634 313 188 O-ring
140 0730 005 271 Ring, angle
150 0730 502 079 Ring, retaining
160 4472 319 219 GEAR, RING
160 4472 239 094 GEAR, RING
200 4472 319 220 Piston
210 0734 317 169 U-ring
214 0501 311 588 Ring
230 0501 316 231 Ring, support
232 4472 319 102 Shim, support
238 0632 041 095 Spring, compr.
248 0637 011 591 Nut, locking
256 0636 104 158 Screw, cap
258 4472 320 071 Sleeve, spring
270 4462 305 079 Disc, o.clutch
270 4462 305 081 Disc, o.clutch
270 4462 305 080 Disc, o.clutch
280 0501 314 381 Disc, i.clutch
290 4462 305 050 SHIM, END
300 0630 502 187 Ring, retaining
320 0730 106 288 Washer, thrust
340 4472 319 157 Shaft, sun gear
350 4472 377 037 Carrier, disk
360 0630 531 057 Ring, retaining
370 0630 502 075 Ring, retaining
390 4472 377 035 CARRIER, PLANET
400 4472 364 006 Gear, planet
410 0735 455 281 Bearing, roller
420 0501 309 954 Ring, angle
430 0630 501 029 Ring, retaining
480 0730 105 800 Washer, thrust optional
480 0730 104 160 Washer, thrust optional
480 0730 105 401 Washer, thrust optional
480 0730 105 400 Washer, thrust optional
480 0730 105 385 Washer, thrust optional
480 0730 105 126 Washer, thrust optional
480 0730 104 159 Washer, thrust optional
490 0634 303 485 O-ring
500 0736 302 046 Plug, screw
510 0636 104 074 Screw, cap
540 4472 319 208 Bolt, wheel
550 0630 307 004 Washer, spring
560 0750 101 082 Ring, centering
570 0637 018 009 Nut, wheel
620 0636 302 003 Plug, screw
630 0634 306 523 O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
