Каталог запасных частей к технике: Doosan SOLAR 170W-V. MAIN PUMP-PUMP (1217-)
2
2A
2Aa
2Ab
2Ac
2Ac1
2Ac2
2Ac2
2Ad
2Ad
2Ad
2Ad
2Ad
2Ad
2Ad
2Ae
2Af
2Ag
2B
2C
2C
2C
2C
2C
2D
2E
2E
2E
2E
2E
2E
2E
2E
2E
2E
2E
2E
2F
2G
2H
3
3A
3Aa
3Ab
3Ac
3Ac1
3Ac2
3Ac2
3Ad
3Ad
3Ad
3Ad
3Ad
3Ad
3Ad
3Ae
3Af
3Ag
3B
3C
3C
3C
3C
3C
3D
3E
3E
3E
3E
3E
3E
3E
3E
3E
3E
3E
3E
3F
3G
3H
4
4A
4B
4C
5
7
8
20
21
22
23
24
25
26
27

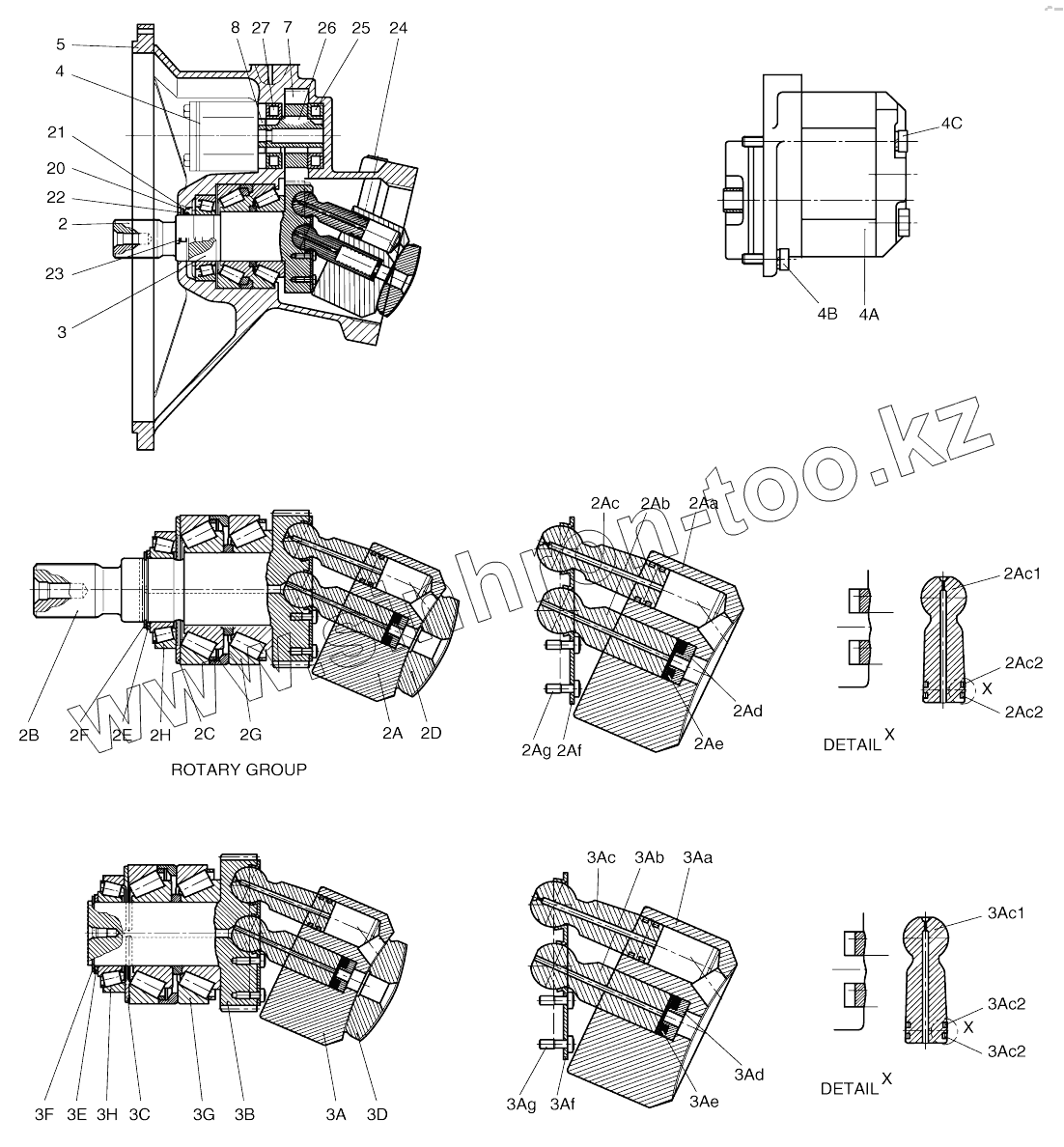

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 02054851 | ROTARY GROUP | |
| 2A | 02038842 | ROTARY GROUPHYDRSECTION | |
| 2Aa | 02038760 | CYLINDER | |
| 2Ab | 02038759 | PIN;CENTER | |
| 2Ac | 02047357 | PISTON & PISTON RINGS | |
| 2Ac1 | 02047266 | PISTON | |
| 2Ac2 | 09831893 | RING;STEEL SEALING | |
| 2Ad | 09412411 | COLLAR;SPRING | |
| 2Ad | 09412412 | COLLAR;SPRING | |
| 2Ad | 09412413 | COLLAR;SPRING | |
| 2Ad | 09412414 | COLLAR;SPRING | |
| 2Ad | 09412415 | COLLAR;SPRING | |
| 2Ad | 09412416 | COLLAR;SPRING | |
| 2Ad | 09412417 | COLLAR;SPRING | |
| 2Ae | 09408894 | CUP SPRING | |
| 2Af | 09062847 | PLATE;RETAINING | |
| 2Ag | 09831106 | SCREW;PAN HEAD | |
| 2B | 02054850 | SHAFT;DRIVE | |
| 2C | 09651571 | SHIM | |
| 2C | 09651572 | SHIM | |
| 2C | 09651573 | SHIM | |
| 2C | 09651574 | SHIM | |
| 2C | 09651575 | SHIM | |
| 2D | 02063765 | CONTROL LENS;RIGHT-HAND | |
| 2E | 02030518 | PLATE;BACK-UP | |
| 2E | 02028800 | PLATE;BACK-UP | |
| 2E | 02028801 | PLATE;BACK-UP | |
| 2E | 02028802 | PLATE;BACK-UP | |
| 2E | 02028803 | PLATE;BACK-UP | |
| 2E | 02028804 | PLATE;BACK-UP | |
| 2E | 02028805 | PLATE;BACK-UP | |
| 2E | 02028806 | PLATE;BACK-UP | |
| 2E | 02028807 | PLATE;BACK-UP | |
| 2E | 02028808 | PLATE;BACK-UP | |
| 2E | 02028809 | PLATE;BACK-UP | |
| 2E | 09084737 | PLATE;BACK-UP | |
| 2F | 09083363 | RING;RETAINING | |
| 2G | 09154607 | BEARING;UNIT TAPERED-ROLLER | |
| 2H | 09151100 | BEARING;TAPERED-ROLLER | |
| 3 | 02042095 | ROTARY GROUP | |
| 3A | 02038842 | ROTARY GROUPHYDRSECTION | |
| 3Aa | 02038760 | CYLINDER | |
| 3Ab | 02038759 | PIN;CENTER | |
| 3Ac | 02047357 | PISTON & PISTON RINGS | |
| 3Ac1 | 02047266 | PISTON | |
| 3Ac2 | 09831893 | RING;STEEL SEALING | |
| 3Ad | 09412411 | COLLAR;SPRING | |
| 3Ad | 09412412 | COLLAR;SPRING | |
| 3Ad | 09412413 | COLLAR;SPRING | |
| 3Ad | 09412414 | COLLAR;SPRING | |
| 3Ad | 09412415 | COLLAR;SPRING | |
| 3Ad | 09412416 | COLLAR;SPRING | |
| 3Ad | 09412417 | COLLAR;SPRING | |
| 3Ae | 09408894 | CUP SPRING | |
| 3Af | 09062847 | PLATE;RETAINING | |
| 3Ag | 09831106 | SCREW;PAN HEAD | |
| 3B | 02038776 | SHAFT;DRIVE | |
| 3C | 09651571 | SHIM | |
| 3C | 09651572 | SHIM | |
| 3C | 09651573 | SHIM | |
| 3C | 09651574 | SHIM | |
| 3C | 09651575 | SHIM | |
| 3D | 02063766 | CONTROL LENS;LEFT-HAND | |
| 3E | 02030518 | PLATE;BACK-UP | |
| 3E | 02028800 | PLATE;BACK-UP | |
| 3E | 02028801 | PLATE;BACK-UP | |
| 3E | 02028802 | PLATE;BACK-UP | |
| 3E | 02028803 | PLATE;BACK-UP | |
| 3E | 02028804 | PLATE;BACK-UP | |
| 3E | 02028805 | PLATE;BACK-UP | |
| 3E | 02028806 | PLATE;BACK-UP | |
| 3E | 02028807 | PLATE;BACK-UP | |
| 3E | 02028808 | PLATE;BACK-UP | |
| 3E | 02028809 | PLATE;BACK-UP | |
| 3E | 09084737 | PLATE;BACK-UP | |
| 3F | 09083363 | RING;RETAINING | |
| 3G | 09154607 | BEARING;UNIT TAPERED-ROLLER | |
| 3H | 09151100 | BEARING;TAPERED-ROLLER | |
| 4 | 02018107 | GEAR PUMP ASS'Y | |
| 4A | 09831782 | PUMP;GEAR | |
| 4B | 09083036 | SCREW;SOCKET M8X20 | |
| 4C | 09157500 | SCREW;SOCKET M8X75 | |
| 5 | 02063901 | HOUSING;PUMP | |
| 7 | 02038816 | GEAR | |
| 8 | 09650267 | SHAFT;STUB | |
| 20 | 09083408 | RING;RETAINING | |
| 21 | 09832131 | RING;SHAFT SEAL | |
| 22 | 09084989 | SHIM | |
| 23 | 09153364 | SCREW;LOCKING | |
| 24 | 09151979 | SCREW;LOCKING | |
| 25 | 09153268 | BEARING;PLAIN ROLLER | |
| 26 | 09083979 | SHAFT;KEY | |
| 27 | 09153268 | BEARING;PLAIN ROLLER |
