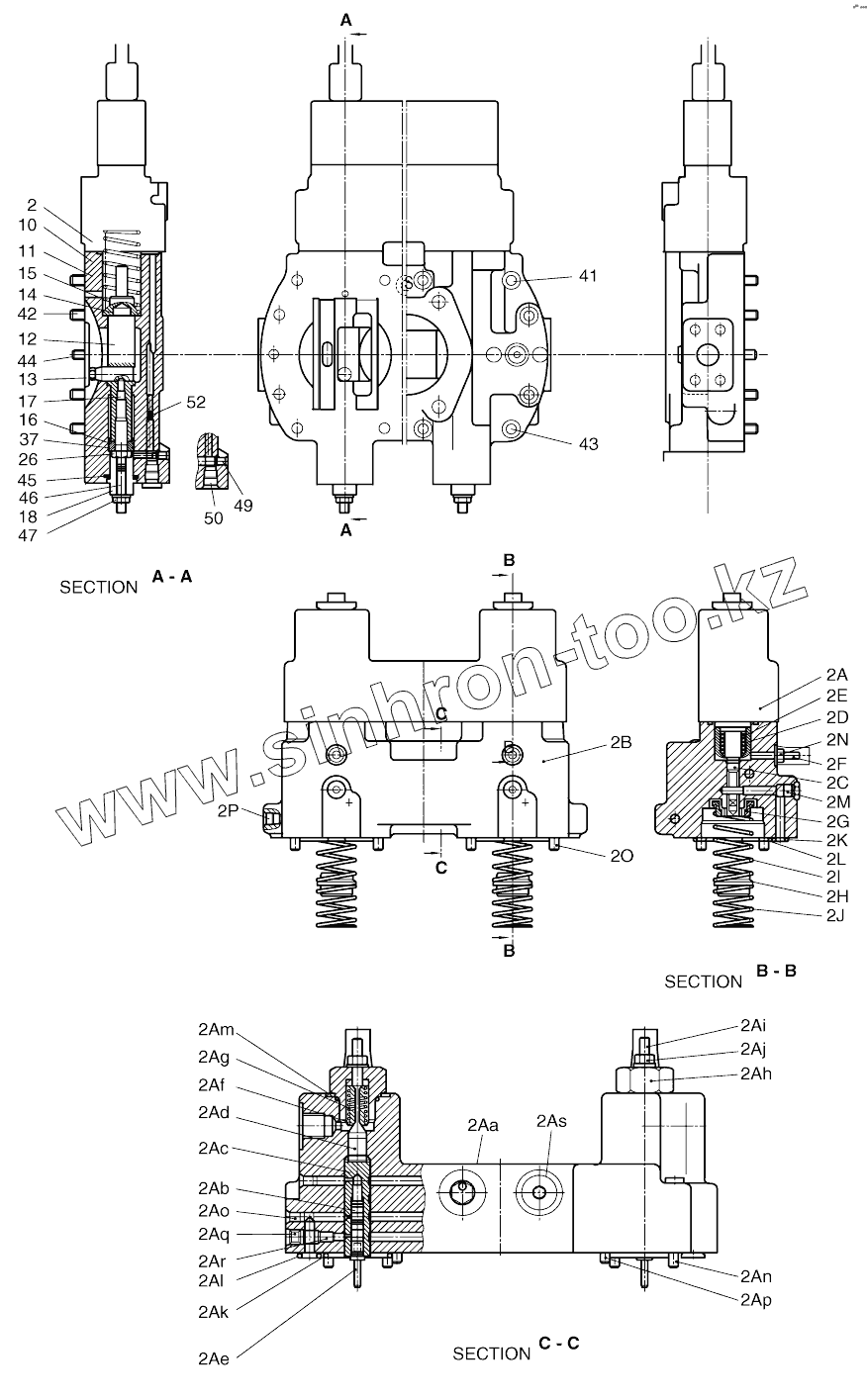

Каталог запасных частей к технике: Doosan SOLAR 170W-V. MAIN PUMP-CONTROL (1217-)
2
2A
2Aa
2Ab
2Ac
2Ad
2Ae
2Af
2Ag
2Ah
2Ai
2Aj
2Ak
2Al
2Am
2An
2Ao
2Ap
2Aq
2Ar
2As
2B
2C
2D
2E
2F
2G
2H
2I
2J
2K
2L
2M
2N
2O
2P
10
11
12
13
14
15
16
17
18
26
37
41
42
43
44
45
46
46
46
46
46
46
46
46
46
47
49
50
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 02075206 | CONTROL MODULE | |
| 2A | 02063903 | CONTROL MODULE | |
| 2Aa | 02063904 | HOUSING;CONTROL | |
| 2Ab | 09650247 | PISTON, CONTROL | |
| 2Ac | 09651121 | BUSH, CONTROL | |
| 2Ad | 02009638 | PISTON;POSITIONING | |
| 2Ae | 02045222 | PIN | |
| 2Af | 09430649 | COLLAR;SPRING | |
| 2Ag | 09650259 | SPRING;PRESSURE | |
| 2Ah | 09436380 | SCREW;LOCKING | |
| 2Ai | 09420991 | PIN;THREADED | |
| 2Aj | 09152425 | NUT;SEAL LOCK | |
| 2Ak | 09086730 | O-RING | |
| 2Al | 02600655 | O-RING | |
| 2Am | 09083757 | O-RING | |
| 2An | 09083027 | SCREW;SOCKET-HEAD | |
| 2Ao | 09831318 | PIN;DOUBLE BREAK-OFF | |
| 2Ap | 09084149 | PIN;CYLINDER | |
| 2Aq | 09831319 | PIN;DOUBLE BREAK-OFF | |
| 2Ar | 02600705 | PLUG | |
| 2As | 09151979 | SCREW;LOCKING | |
| 2B | 02057022 | HOUSING, CONTROL | |
| 2C | 09449944 | PISTON, CONTROL | |
| 2D | 09449344 | BUSH, SPRING | |
| 2E | 09651102 | SPRING, PRESSURE | |
| 2F | 09425219 | PIN, THREADED | |
| 2G | 09921873 | COLLAR, SPRING | |
| 2H | 09921874 | COLLAR, SPRING | |
| 2I | 09921826 | SPRING, PRESSURE | |
| 2J | 09921827 | SPRING, PRESSURE | |
| 2K | 02600655 | O-RING | |
| 2L | 09086334 | O-RING | |
| 2M | 09153364 | SCREW;LOCKING | |
| 2N | 09152425 | NUT;SEAL LOCK | |
| 2O | 09086080 | SCREW, SOCKET-HEAD | |
| 2P | 09831318 | PIN;DOUBLE BREAK-OFF | |
| 10 | 02057270 | HOUSING;CONTROL | |
| 11 | 09650390 | GASKET | |
| 12 | 09921928 | PISTON;POSITIONING | |
| 13 | 09430407 | TRUNNION;POSITIONING | |
| 14 | 02075207 | COLLAR;SPRING | |
| 15 | 09426151 | SPRING;PRESSURE | |
| 16 | 09921930 | PISTON | |
| 17 | 09445056 | PIN;THREADED | |
| 18 | 02060495 | SCREW;LOCKING | |
| 26 | 09086138 | SCREW;HEX | |
| 37 | 09156962 | RING;SQUARE | |
| 41 | 09083071 | SCREW;SOCKET M10X70 | |
| 42 | 09083065 | SCREW;SOCKET M10X45 | |
| 43 | 09083068 | SCREW;SOCKET M10X60 | |
| 44 | 09152600 | PIN;CYLINDER | |
| 45 | 09083764 | O-RING | |
| 46 | 09447151 | PIN;THREADED | |
| 46 | 09086752 | PIN;THREADED M10X50 | |
| 46 | 09154690 | PIN;THREADED M10X60 | |
| 46 | 09153779 | PIN;THREADED M10X70 | |
| 46 | 09154058 | PIN;THREADED M10X80 | |
| 46 | 09156717 | PIN;THREADED M10X90 | |
| 46 | 09157215 | PIN;THREADED M10X100 | |
| 46 | 09831094 | PIN;THREADED M10X110 | |
| 46 | 09083522 | PIN;THREADED M10X30 | |
| 47 | 09152426 | NUT;SEAL LOCK | |
| 49 | 09831318 | PIN;DOUBLE BREAK-OFF | |
| 50 | 09151692 | SCREW | |
| 52 | 09153371 | SCREW |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
