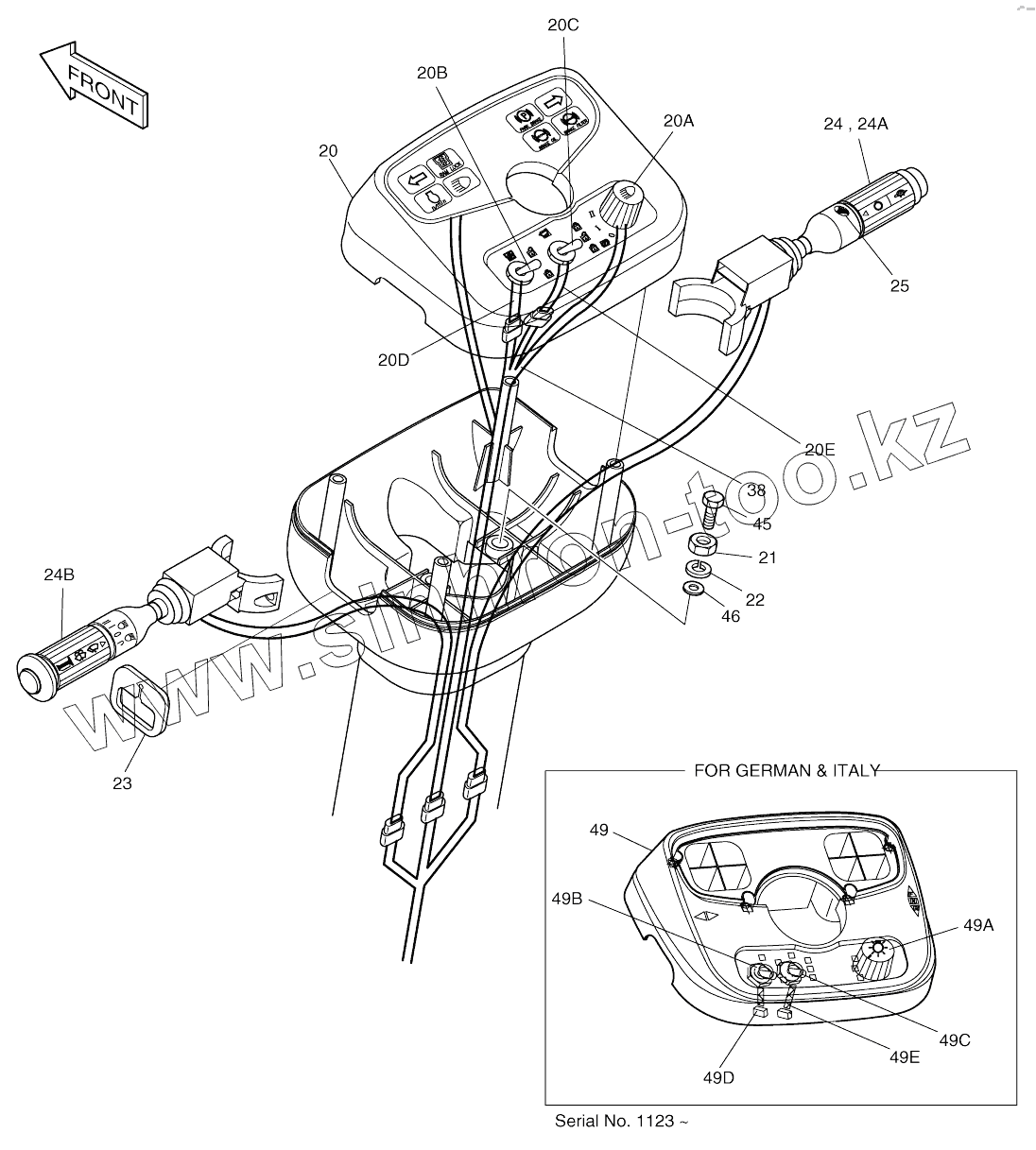

Позиция на иллюстрации
Заводской номер детали
Название детали
2500-1264A
2500-1264A
ELECTRIC PARTS
2500-1264B
2500-1264B
ELECTRIC PARTS
20
2539-1074C
Console box assy
20A
2549-1132D12
Switch, lamp
20B
2549-9096
SWITCH;TOGGLE
20C
2549-9099
Switch, brake select
20D
4530-1484
Harness, toggle switch
20E
530-00033
Harness, toggle switch
21
S4012633
NUT M10X1.5
22
S5102603
WASHER;SPRING M10
23
2110-1344
Bushing, rubber
24
2549-9118
Switch, combination
24A
2549-9116
SWITCH ASSY
24B
2549-9117
SWITCH ASSY
25
2190-1940
Plate, name
38
2530-1620A
Harness, console
45
S0512253
BOLT M10X1.5X30
46
S5010613
WASHER;PLAIN
49
539-00006A
Console box assy
49A
2549-1132D14
Switch, lamp
49B
2549-9096
SWITCH;TOGGLE
49C
2549-9099
Switch, brake select
49D
4530-1484
Harness, toggle switch
49E
530-00033
Harness, toggle switch
