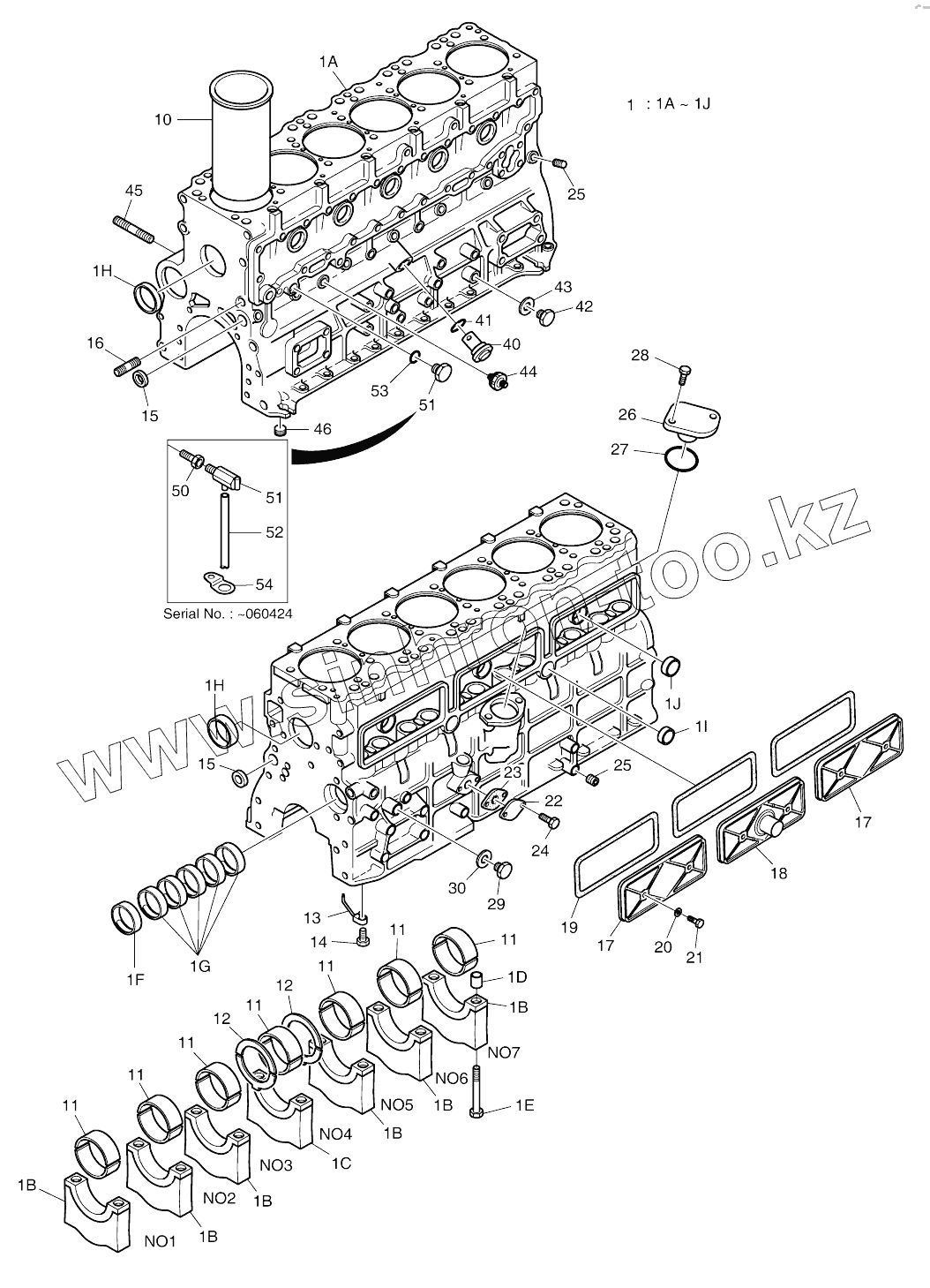

Каталог запасных частей к технике: Doosan SOLAR 170W-V. CYLINDER BLOCK
1A
1A
1B
1B
1B
1B
1B
1B
1B
1B
1B
1B
1B
1B
1B
1B
1C
1C
1D
1E
1F
1F
1F
1G
1G
1G
1H
1H
1I
1I
1J
1J
10
10
10
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
13
14
15
15
16
17
17
18
18
19
20
21
22
23
24
25
25
26
27
28
29
30
40
40
41
42
43
44
45
46
50
50
51
51
51
51
51
51
51
51
51
52
53
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 65.01101-6051H | Cylinder block assy | |
| 1 | 65.01101-6051L | CYLINDER BLOCK ASSY | |
| 1A | 65.01101-0030F | BLOCK;CYLINDER | |
| 1A | 65.01101-0030I | Block, cylinder | |
| 1B | 65.01105-1044 | Cap, bearing | |
| 1B | 65.01105-1044A | CAP, BEARING | |
| 1C | 65.01105-1043 | Cap, bearing | |
| 1C | 65.01105-1043A | CAP, BEARING | |
| 1D | 65.91710-0001 | RING;STOPPER | |
| 1E | 65.90020-0066A | BOLT;HEX. | |
| 1F | 65.04410-0007A | Bush, cam shaft | |
| 1F | 65.04410-0007B | BUSH;CAM SHAFT | |
| 1F | 65.04410-0007D | Bush, cam shaft | |
| 1G | 65.04410-0006A | Bush, cam shaft | |
| 1G | 65.04410-0006B | BUSH;CAM SHAFT | |
| 1G | 65.04410-0006C | BUSH;CAM SHAFT | |
| 1H | 65.90302-0009 | PLUG;CORE | |
| 1I | 06.15091-0319 | PLUG;CORE | |
| 1I | 65.90302-0041 | Plug | |
| 1J | 06.15091-0322 | PLUG;CORE | |
| 1J | 65.90302-0042 | PLUG;CORE | |
| 10 | 65.01201-0067 | LINER;CYLINDER (ALTV.) | |
| 10 | 65.01201-0068 | LINER;CYLINDER(1A) | |
| 10 | 65.01201-0069 | LINER;CYLINDER(1B) | |
| 10 | 65.01201-0070 | LINER;CYLINDER(2A) | |
| 10 | 65.01201-0071 | LINER;CYLINDER(2B) | |
| 11 | 65.01110-6090B | METAL;CRANK STD | |
| 11 | 65.01110-6091 | Metal, crank | |
| 11 | 65.01110-6092 | Metal, crank | |
| 12 | 65.01150-6010 | Washer, thrust std | |
| 12 | 65.01150-6010A | WASHER;THRUST STD | |
| 12 | 65.01150-6011 | Washer, thrust | |
| 12 | 65.01150-6034A | WASHER;THRUST 0.25 | |
| 12 | 65.01150-6012 | Washer, thrust | |
| 12 | 65.01150-6035A | WASHER;THRUST 0.50 | |
| 13 | 65.01601-5010A | OIL JET PIPE | |
| 14 | 65.05401-5023 | RELIEF VALVE ASS'Y | |
| 15 | 06.15091-0313 | PLUG;CORE | |
| 16 | 65.90201-0058 | BOLT;STUD M14X12.5X45 | |
| 17 | 65.01112-0021A | COVER;PUSH ROD CHAMBER | |
| 18 | 65.01112-5018 | COVER;PUSH ROD CHAMBER | |
| 18 | 110508-00358 | Cover, push rod chamber | |
| 19 | 65.01901-0020 | GASKET;PUSH ROD CHAMBER | |
| 20 | 65.96507-0007 | PACKING;PUSH ROD CHAMBER | |
| 21 | 65.90020-0049 | BOLT;HEX. | |
| 22 | 65.91615-0011 | COVER;BLIND | |
| 23 | 65.05903A0013 | GASKET;FLANGE | |
| 24 | 06.01913-3113 | Bolt | |
| 25 | 65.90320-0022 | Screw | |
| 26 | 65.91605-0001E | COVER | |
| 27 | 06.56021-0106 | O-RING;O/P DRIVE FLANGE | |
| 28 | 06.01913-3113 | Bolt | |
| 29 | 65.90310-0135 | Screw | |
| 30 | 06.56190-0706 | Ring | |
| 40 | 65.05401-5002F | RELIEF VALVE ASS'Y | |
| 40 | 65.05401-5002G | Relief valve | |
| 41 | 06.56021-0102 | O-RING;RELIEF VALVE | |
| 42 | 65.90310-0030 | SCREW;PLUG M12X1.25 | |
| 43 | 06.56190-0704 | Ring | |
| 44 | 65.27441-7006 | SWITCH;OIL PRESS. | |
| 45 | 65.90201-0182 | BOLT;STUD | |
| 46 | 65.90320-0019 | PLUG;SCREW | |
| 50 | 65.98130-0040 | Adapter | |
| 50 | 65.98130-0040A | ADAPTER | |
| 51 | 65.06310-6003 | Plug, drain | |
| 51 | 65.06310-6003A | PLUG;DRAIN | |
| 51 | 65.90310-0122 | Plug, drain | |
| 52 | 04.50010-0811 | HOSE;VINYL | |
| 53 | 06.56190-0713 | Ring | |
| 54 | 65.97401-0050 | CLIP;PIPE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
