2603-1609A
2603-1609B
2603-1609C
603-00231A
603-00231B
2603-1609
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7

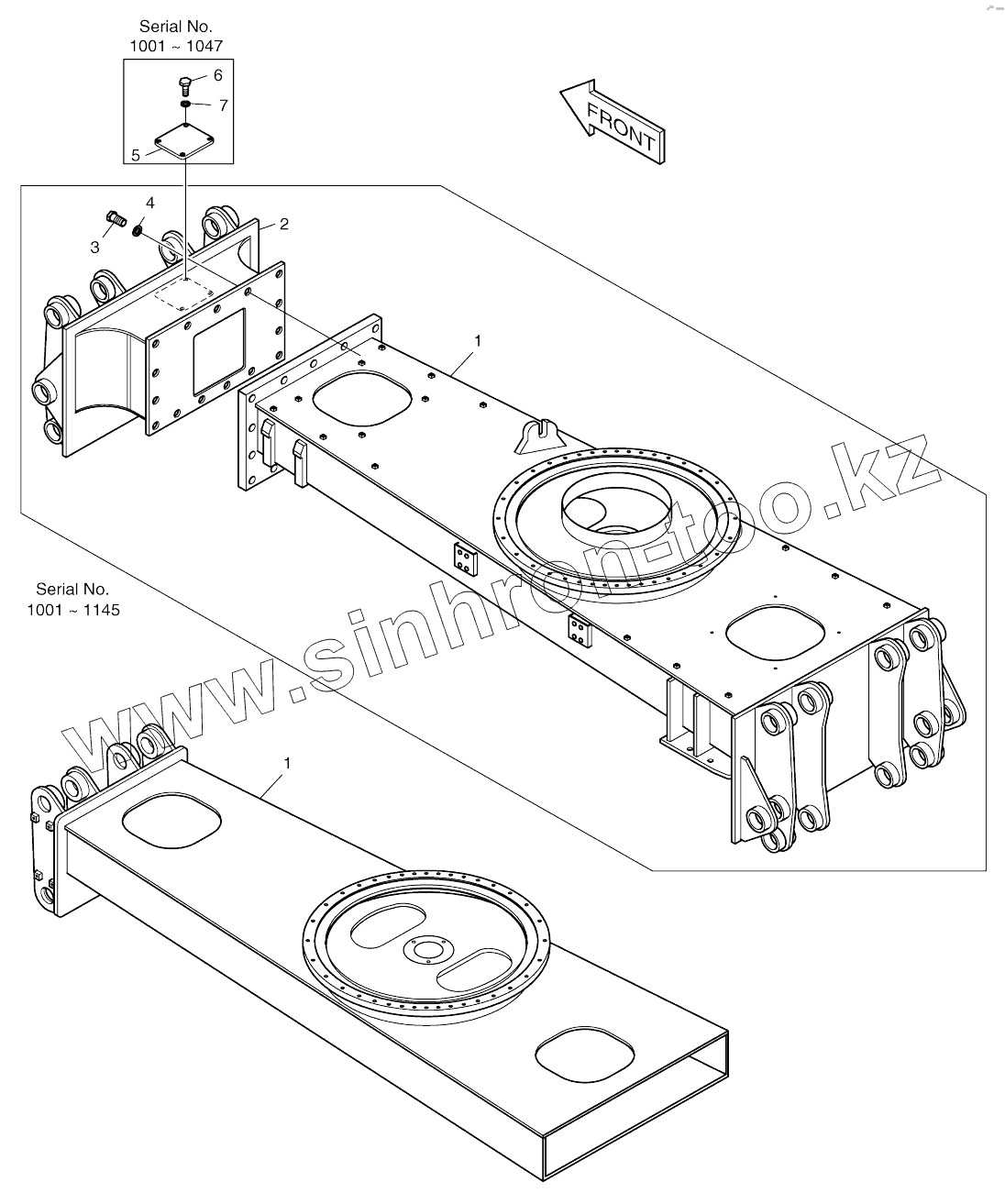

Позиция на иллюстрации
Заводской номер детали
Название детали
2603-1609A
2603-1609A
CHASSIS FRAME, FRONT DOZER
2603-1609B
2603-1609B
CHASSIS FRAME, FRONT DOZER
2603-1609C
2603-1609C
CHASSIS FRAME, FRONT DOZER
603-00231A
603-00231A
CHASSIS FRAME, FRONT DOZER
603-00231B
603-00231B
CHASSIS FRAME, FRONT DOZER
2603-1609
2603-1609
CHASSIS FRAME, FRONT DOZER
1
2603-1607I
CHASSIS FRAME
1
603-00229B
CHASSIS FRAME
1
603-00229A
CHASSIS FRAME
1
2603-1607H
CHASSIS FRAME
1
2603-1607E
CHASSIS FRAME
2
2603-1610
FRAME, FRONT DOZER
3
120-00091
BOLT
4
4114-4058
WASHER, HARD
5
2627-1803A
COVER
6
S0511853
BOLT M10X1.5X20
7
S5102603
WASHER;SPRING M10
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
