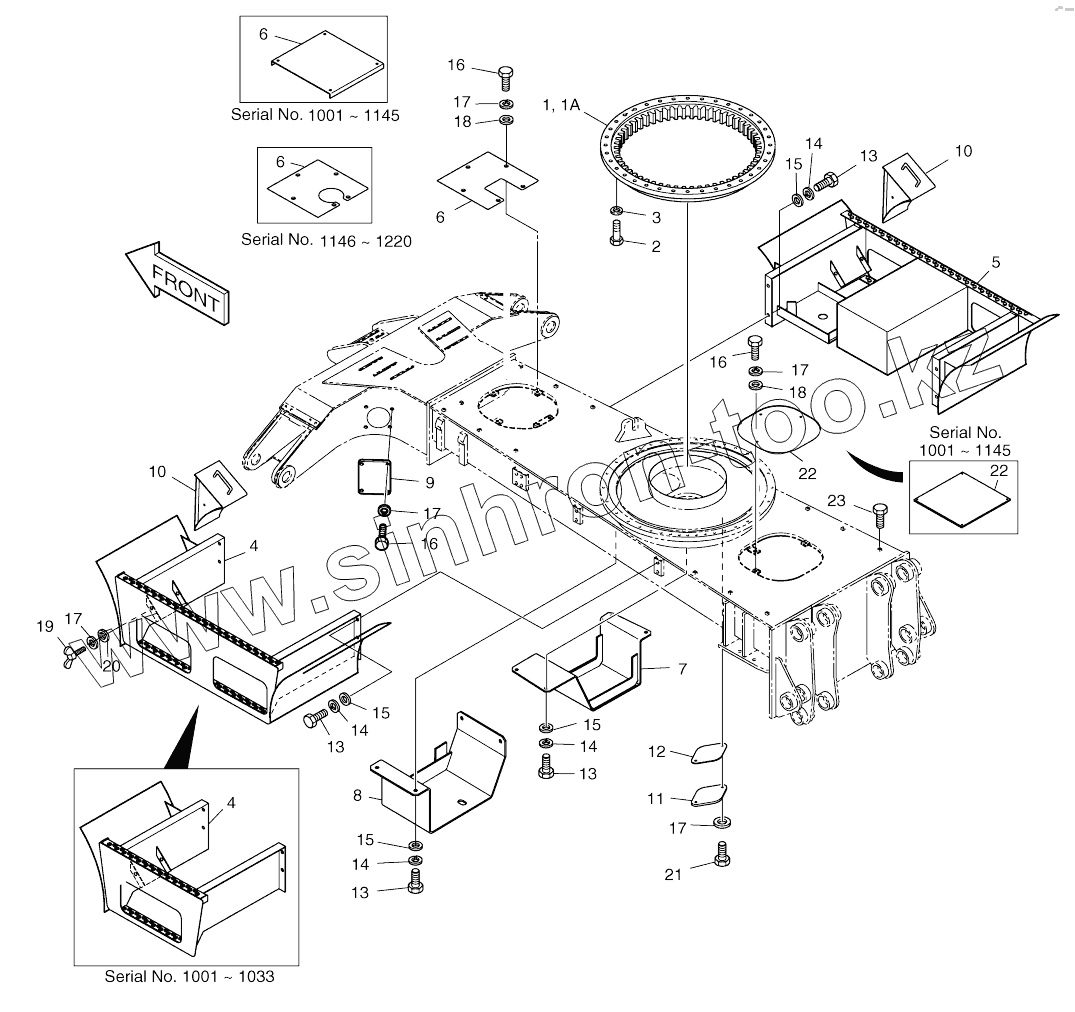

Каталог запасных частей к технике: Doosan SOLAR 170W-V. CHASSIS COMPONENT-EXPORT
230-00015
230-00015
230-00015
1
1
1A
2
2
3
4
4
4
4
4
4
5
5
6
6
6
6
6
6
6
6
6
7
7
8
8
9
10
10
11
12
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
14
14
14
14
14
14
14
14
15
15
15
15
15
15
15
15
16
16
16
16
16
16
17
17
17
17
17
17
17
17
17
17
18
18
18
18
19
20
21
22
22
22
22
22
22
23
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 230-00015 | 230-00015 | CHASSIS COMPONENTS | |
| 1 | 109-00028B | BEARING, SWING | |
| 1 | 109-00028C | BEARING;SWING | |
| 1A | 180-00297D3 | SEAL 5MM | |
| 2 | S0770061 | Bolt | |
| 2 | S0770066 | Bolt | |
| 3 | 2114-9012 | Washer, harden | |
| 4 | 625-00012A | STEP(L.H.) | |
| 4 | 625-00012B | STEP(L.H.) | |
| 5 | 625-00010A | STEP(R.H.) | |
| 5 | 625-00010B | STEP(R.H.) | |
| 6 | 2627-1794A | COVER | |
| 6 | 621-02250 | COVER | |
| 6 | 621-02250A | COVER | |
| 7 | 2627-1795B | COVER, MOTOR | |
| 7 | 2627-1795C | COVER, MOTOR | |
| 8 | 621-00239A | COVER, T/M | |
| 8 | 621-00239B | COVER, T/M | |
| 9 | 2213-4026 | Cover | |
| 10 | 2542-1002A | Chock, wheel | |
| 11 | 2403-1002 | COVER | |
| 12 | 2180-1017A | PACKING | |
| 13 | S0521451 | BOLT M16X2.0X40 | |
| 13 | S0521456 | Bolt | |
| 13 | S0521466 | BOLT M16X2.0X40 | |
| 14 | S5102901 | WASHER;SPRING | |
| 14 | S5102903 | WASHER;SPRING | |
| 15 | S5010913 | WASHER M16 | |
| 15 | 2114-1058D2 | WASHER | |
| 16 | S0511853 | BOLT M10X1.5X20 | |
| 16 | S0511853 | BOLT M10X1.5X20 | |
| 17 | S5102603 | WASHER;SPRING M10 | |
| 17 | S5102603 | WASHER;SPRING M10 | |
| 18 | S5010613 | WASHER;PLAIN | |
| 18 | S5010613 | WASHER;PLAIN | |
| 19 | S3056253 | Bolt, wing | |
| 20 | 2114-1058D1 | Washer | |
| 21 | S0512053 | BOLT M10X1.5X25 | |
| 22 | 621-00304 | COVER | |
| 22 | 621-02270 | Cover | |
| 23 | S0521051 | BOLT | |
| 23 | S0521056 | BOLT |
