Каталог запасных частей к технике: Doosan SOLAR 170W-V. BRAKE PIPING (2)
400-00016A
400-00016A
400-00016A
400-00016A
400-00016B
400-00016B
400-00016B
400-00016B
4
5
5
5
6
7
8
8
9
10
11
12
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
14
14
16
16
16
16
16
16
16
16
18
19
20
20
21
22
23
23
24
24
24A
24B
24C
24D
24E
24F
24G
24H
25
26
34
35
42
42
43
44
44
44
44
44
44
45
46
46
46
46
46
46
46
46
46
46
48
48
49
49
51
51
51
51
52
52
52
52
52
52
53
54
55
56
57

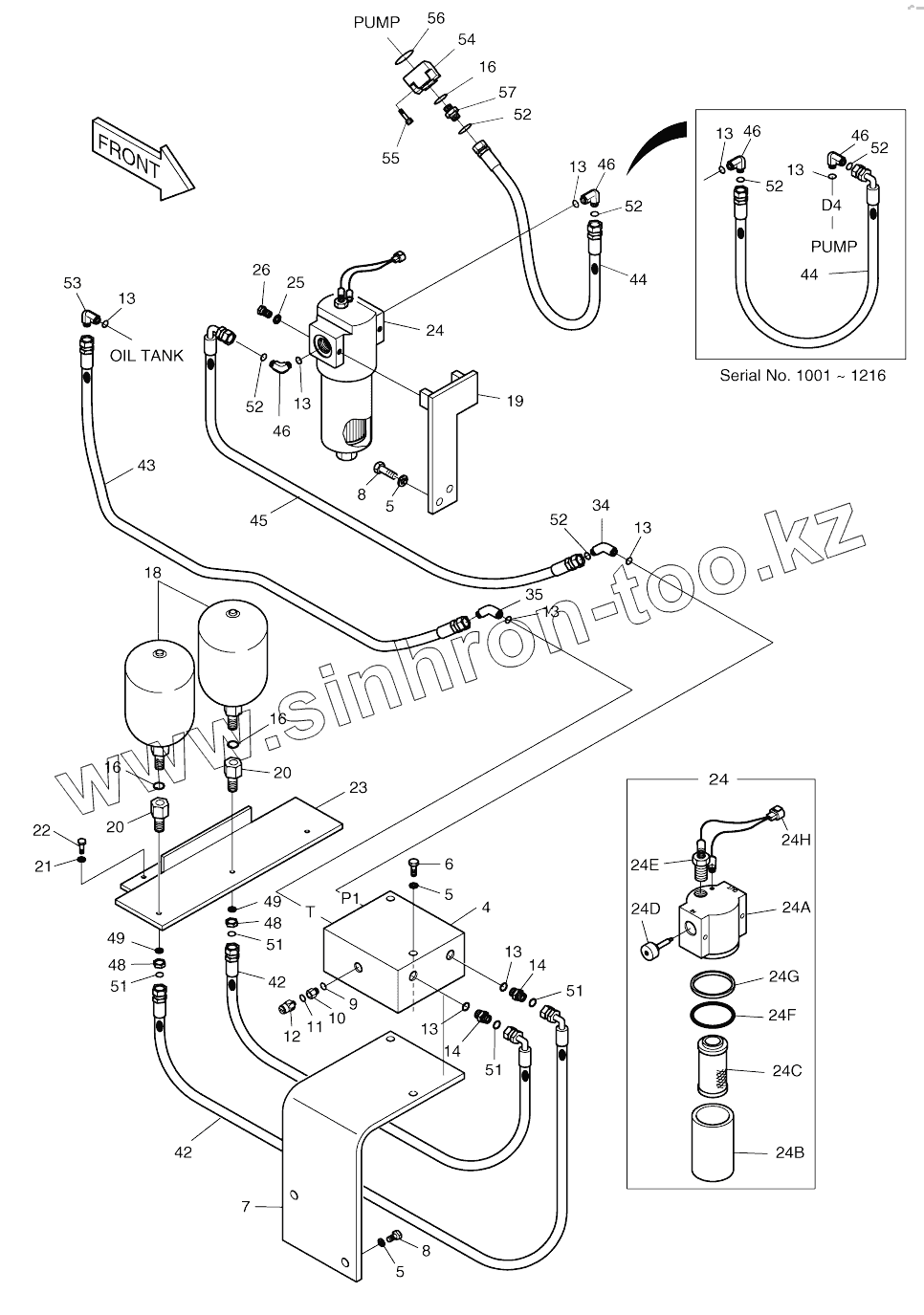

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 400-00016A | 400-00016A | BRAKE PIPING | |
| 400-00016B | 400-00016B | BRAKE PIPING | |
| 4 | 2420-9325A | Brake supply valve | |
| 5 | S5102603 | WASHER;SPRING M10 | |
| 6 | S0559153 | BOLT M10X1.5X80 | |
| 7 | 2197-2565 | BRACKET | |
| 8 | S0511853 | BOLT M10X1.5X20 | |
| 9 | S8000111 | O-RING | |
| 10 | 2181-2180 | Adapter | |
| 11 | S8180211 | SEAL RING | |
| 12 | 2549-9093 | Switch, low pressure | |
| 13 | S8000181 | O-RING | |
| 13 | S8000181 | O-RING | |
| 14 | 2181-4133D39 | Adapter | |
| 16 | S8000141 | O-RING | |
| 16 | S8000141 | O-RING | |
| 18 | 2460-9055 | Accumulator | |
| 19 | 2891-1694 | Plate | |
| 20 | 181-00141 | Reducer | |
| 21 | S5102703 | WASHER;SPRING M10 | |
| 22 | S0515153 | Bolt | |
| 23 | 2197-2566A | Bracket | |
| 23 | 2197-2566B | Bracket | |
| 24 | 471-00024A | Filter, brake | |
| 24A | HEAD | Head | |
| 24B | CASE | Case | |
| 24C | 474-00009 | Element, brake filter | |
| 24D | 426-00059 | Valve, by-pass | |
| 24E | 471-00026 | Indicator | |
| 24F | Y-3738-05 | O-RING | |
| 24G | Y-3738-04 | RING;BACK UP | |
| 24H | 530-00097 | Harness | |
| 25 | S5102303 | WASHER;SPRING M6 | |
| 26 | S0553753 | BOLT M6X1.0X55 | |
| 34 | 2181-2816D4 | Elbow | |
| 35 | 2181-2419D3 | ELBOW | |
| 42 | 2184-1197D161 | HOSE | |
| 43 | 2184-1026D380 | Hose | |
| 44 | 2184-1197D17 | HOSE | |
| 44 | DS2011351 | HOSE | |
| 45 | 2184-1197D159 | HOSE | |
| 46 | 2181-2815D3 | ELBOW | |
| 46 | 2181-2815D3 | ELBOW | |
| 48 | 121-00025 | Nut | |
| 49 | S5103001 | Washer, spring | |
| 51 | S8030061 | O-RING | |
| 52 | S8030081 | O-RING | |
| 53 | 2181-1702D2 | ELBOW | |
| 54 | 423-00168 | BLOCK | |
| 55 | S2205066 | BOLT;SOCKET M6X1.0X25 | |
| 56 | S8030121 | O-RING | |
| 57 | 2181-4133D38 | Adapter |
