1
1
1
1
2
10
10
11
12
13
14

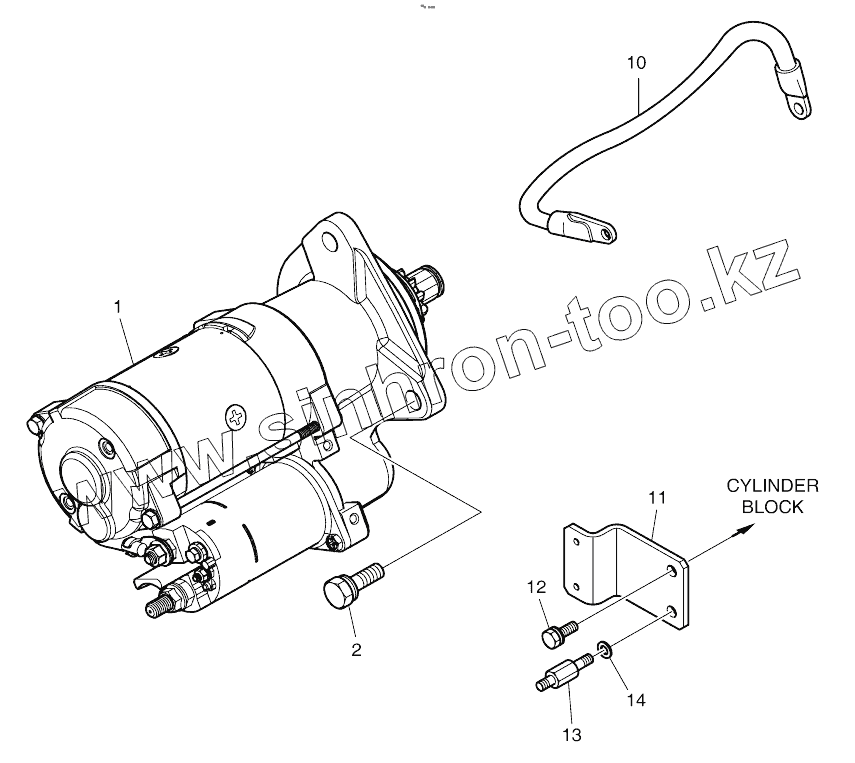

Позиция на иллюстрации
Заводской номер детали
Название детали
1
65.26201-7044
STARTER
1
65.26201-7076
Starter
1
65.26201-7076B
Starter
1
65.26201-7076C
Starter
2
06.01943-3318
BOLT ASS'Y M12X1.5X35
10
65.29101-5001
WIRE;ELECTRIC
10
310208-00020
Wire, electric
11
65.97480-0223
Holder
12
06.01943-3213
BOLT ASS'Y M10X1.25X20
13
65.90201-0168
Bolt, stud
14
06.16731-2108
Washer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
