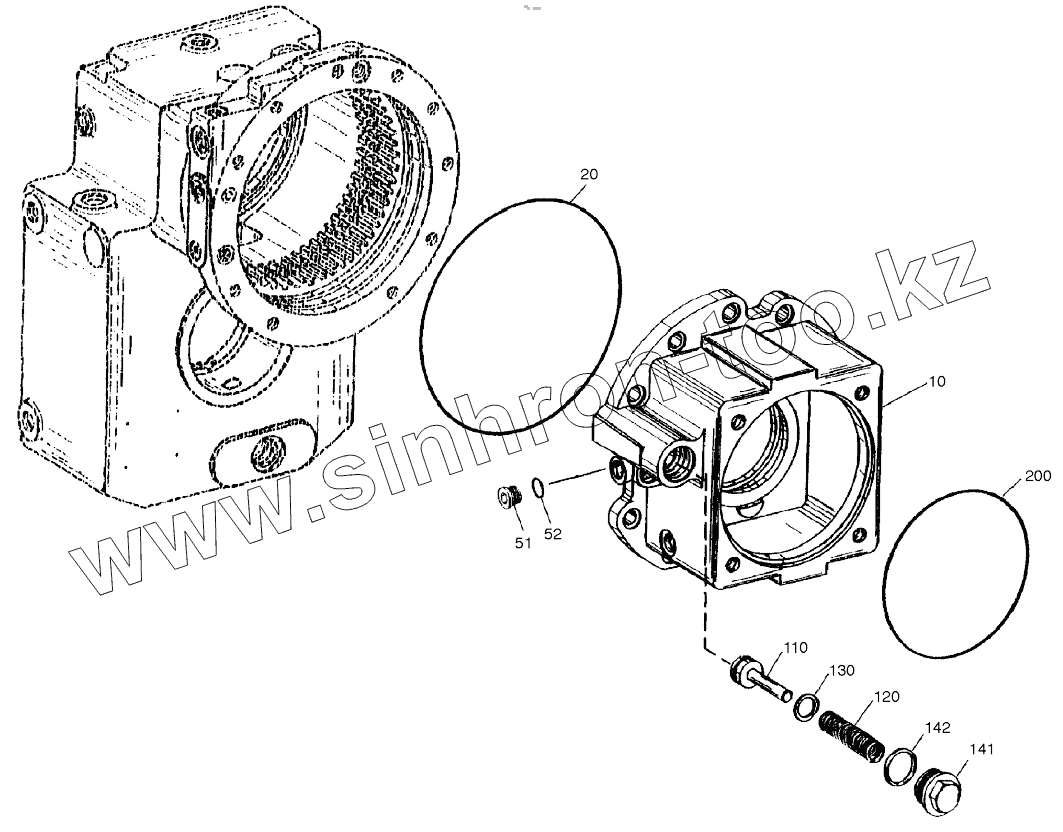

Каталог запасных частей к технике: Doosan SOLAR 160W-V. PROPELLING HOUSING-TRANSMISSION

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD VALVE MECHANISM OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP AND COOLING FAN INTAKE AND EXHAUST MANIFOLD TURBO CHARGER AND OIL PIPE FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT-TOP OVER HAUL GASKET KIT-ALL MAIN FRAME ENGINE MOUNTING RADIATOR AND OIL COOLER RESERVE TANK MUFFLER AIR CLEANER ASSY PUMP INSTALLATION PUMP INSTALLATION-OPTION FUEL TANK OIL TANK SWING DEVICE SWING DEVICE-OPTION ENGINE CONTROL ASS'Y LEVER ASS'Y-ENGINE SUB OIL COOLER PIPING OIL COOLER PIPING OIL COOLER PIPING MAIN PIPING (1)-PUMP MAIN PIPING (2)-BOOM MAIN PIPING (3)-ARM. BUCKET MAIN PIPING (4)-SWING MAIN PIPING (5)-TRAVEL PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING (9) (1001 ~ 3750) PILOT PIPING (9) (3751 ~ ) PILOT PIPING (10) PILOT PIPING (11) PILOT PIPING (12) BRAKE PIPING (1) BRAKE PIPING (2) STEERING PIPING STEERING WHEEL ASSY STEERING COLUMN ASSY COLUMN ASSY CONTROL STAND-L.H. CONTROL STAND-R.H. SEAT AND ELECTRIC BOX SEAT MOUNTING-EUROPE AND U.S.A SEAT-EUROPE AND U.S.A DUCT COVER ASS'Y HEATER COVER ASS'Y CABIN MOUNT ASS'Y CABIN ASS'Y CABIN (1) CABIN (2) CABIN (3) CABIN (4) CABIN (5) SUPPORT SUPPORT-CONDENSER COVER (1) COVER (2) COVER (3) COVER (4) COVER (5) BAFFLE ASSY (1) BAFFLE ASSY (2) ACOUSTIC FOAM UNDER COVER LUBRICATOR PIPING ELECTRIC BOX ASSY ELECTRIC BOX ASS'Y-ELECTRIC PARTS ELECTRIC PARTS (1)-GAUGE AND SWITCH PANEL ELECTRIC PARTS (2)-STAND R.H. ELECTRIC PARTS (3)-STAND L.H. ELECTRIC PARTS(4)-CABIN ELECTRIC PARTS(5)-BATTERY ELECTRIC PARTS(6)-ENGINE ELECTRIC PARTS(7)-RELATED PART ELECTRIC PARTS(8)-LAMP PART ELECTRIC WIRING(1)-BATTERY ELECTRIC WIRING(2)-ENGINE ELECTRIC WIRING(3)-RELATED PART AIR CONDITIONER (1) AIR CONDITIONER (2)-AIRCON UNIT HEATER PIPING CHASSIS FRAME POWER TRAIN CHASSIS COMPONENTS BRAKE PIPING STEER AND CHOCK PIPING PROPELLING PIPING BLADE (1001 ~ 2159) BLADE (2160-) BLADE PIPING (1001 ~ 2159) BLADE PIPING (2160-) OUTRIGGER ASSY-FRONT OUTRIGGER ASS'Y-REAR (2520 ~) DOZER AND OUTRIGGER PIPING FRONT OUTRIGGER PIPING REAR OUTRIGGER PIPING BOOM -4.6m ARM -2.5m BUCKET-0.5m3 FRONT PIPING-BOOM-4.6m+ARM -2.5m FRONT LUBRICATOR PIPING-BOOM-4.6m MAIN PUMP REGULATOR-FRONT REGULATOR-REAR PTO ASS'Y GEAR PUMP GEAR PUMP (2 PORT) SWING MOTOR SWING REDUCTION GEAR TRAVEL MOTOR PISTON MOTOR-TRAVEL MOTOR ROTARY GROUP-TRAVEL MOTOR REGULATOR-TRAVEL MOTOR CONTROL PARTS-TRAVEL MOTOR COUNTER BALANCE VALVE-TRAVEL MOTOR CONTROL VALVE CONTROL VALVE-ARTI.BOOM (1001-3530) CONTROL VALVE-ARTI.BOOM (3105-) STEERING VALVE PILOT AND T/M SUPPLY VALVE PILOT AND T/M SUPPLY VALVE-DOZER AND OUTRIGGER PILOT CHECK VALVE-OUTRIGGER CYL. REMOTE CONTROL VALVE (1001 ~ 3530) REMOTE CONTROL VALVE (3531-) REMOTE CONTROL VALVE-3 SWITCH REMOTE CONTROL VALVE-DOZER BRAKE SUPPLY VALVE FOOT BRAKE VALVE BREAKER PACKAGE VALVE PEDAL VALVE-ARTI.BOOM SOLENOID VALVE CENTER JOINT CENTER JOINT BOOM CYLINDER (L.H.) BOOM CYLINDER (R.H.) ARM CYLINDER-ARM 2.5M 3.0M BUCKET CYLINDER DOZER CYLINDER (L.H.) DOZER CYLINDER (R.H.) CHOCKING CYLINDER (1001~1959) CHOCKING CYLINDER-L.H (1960-) CHOCKING CYLINDER-R.H (1960-) OUTRIGGER CYLINDER-FRONT OUTRIGGER CYLINDER-REAR (2750-) BOOM CYL.(L.H)-LOCK VALVE-BOOM 4.6M BOOM CYL.(R.H)-LOCK VALVE-BOOM 4.6M ARM CYLINDER-LOCK VALVE-BOOM 4.6M BOOM CYLINDER(L.H)-ARTI.BOOM BOOM CYLINDER(R.H)-ARTI.BOOM ARTI.BOOM CYLINDER ARM CYLINDER-ARTI.BOOM BOOM CYLINDER(L.H)-L/V FOR-ARTI.BOOM BOOM CYLINDER(R.H)-L/V FOR-ARTI.BOOM ARTI.BOOM CYLINDER-LOCK VALVE ARM CYLINDER-L/V FOR ARTI.BOOM DIFFERENTIAL HOUSING-FRONT AXLE DIFFERENTIAL-FRONT AXLE PLANET GEAR-FRONT AXLE BRAKE-FRONT AXLE STEERING CYLINDER-FRONT AXLE SUPPORT SYSTEM-FRONT AXLE DIFFERENTIAL HOUSING-REAR AXLE DIFFERENTIAL-REAR AXLE PLANET GEAR-REAR AXLE BRAKE-REAR AXLE PROPELLING HOUSING-TRANSMISSION INPUT SHAFT-TRANSMISSION HOUSING-TRANSMISSION OIL PIPE-TRANSMISSION COUPLING-TRANSMISSION M-DISC BRAKE-TRANSMISSION PLANETARY DRIVE-TRANSMISSION DISCONNECTION DEVECE-TRANSMISSION SPUR GEAR DRIVE-TRANSMISSION GEAR SHIFT SENSOR-TRANSMISSION OUTPUT SHAFT-TRANSMISSION OPTION VALVE TOOLS SPARE PARTS FUEL FILLER PUMP ASS'Y DOUBLE FUEL FILTER SUN VISOR ASS'Y SUN ROOF ASS'Y NOISE FILTER ASS'Y-EUROPE CABIN LAMP ASSY 6-LAMP AND BEACON (TELESCOPIC) BEACON RETURN FILTER SWITCH ASS`Y ALTERNATOR OVERLOAD WARNING ASSY CABIN LOW GUARD JOYSTICK VALVE ASS'Y 3-SWITCH TROPICAL COVER POWER TRAIN-10.0 TIRE POWER TRAIN-SINGLE TIRE ARM -1.9m ARM -2.25m ARM -3.0m BUCKET -0.2m3 BUCKET-0.35m3 BUCKET-0.45m3 BUCKET-0.55m3 BUCKET-0.65m3 BUCKET-0.38m3 (30")-SIDE PIN BUCKET-0.38m3 (30")-VERTICAL PIN BUCKET-0.44m3 (33")-SIDE PIN BUCKET-0.44m3 (33")-VERTICAL PIN BUCKET-0.48m3 (36")-SIDE PIN BUCKET-0.48m3 (36")-VERTICAL FRONT PIPING-BOOM 4.6M + ARM 2.25M FRONT PIPING-BOOM 4.6M + ARM 3.0M MAIN PIPING-ONE AND TWO WAY PILOT PIPING-BREAKER BOOM PIPING-BOOM 4.6M (ONE WAY) ARM PIPING-ARM 1.9m (ONE WAY) ARM PIPING-ARM 2.25m (ONE WAY) ARM PIPING-ARM 2.5m (ONE WAY) ARM PIPING-ARM 3.0m (ONE WAY) NAME PLATE-ONE AND TWO WAY LOCK VALVE PIPING-BOOM 4.6M MAIN PIPING-ROTATION AND TILTING PILOT PIPING-ROTATION AND TILTING FLOOR ASS'Y-ROTATION AND TILTING BOOM PIPING-4.6M ROTATING AND TILTING ARM PIPING(2.5m)-ROTATION AND TILTING ARM PIPING(3.0m)-ROTATION AND TILTING PILOT PIPING-P3C AND TILTING PILOT PIPING-P3C ARTI. BOOM ASS'Y MAIN PIPING-ARTI.BOOM PILOT PIPING-ARTI.BOOM FRONT PIPING-ARTI.BOOM FRONT LUBRICATION PPING-ARTI.BOOM ARM PIPING-ARM 2.5M (ARTI.BOOM) LOCK VALVE PIPING-ARTI.BOOM STAY ASS'Y-ARTI.BOOM MAIN PIPING-ARTI. BOOM-2 WAY FRONT PIPING-ARTI. BOOM-1 WAY CHASSIS FRAME BOLT-ON CRADLE AND REMOTE OPTION ASS'Y-GERMAN LAMP ASS'Y-GERMAN ARM LAMP HARNESS-GERMAN FLOOR ASS'Y-MULTI PIPING (2520-) PILOT PIPING-ROTATING AND TILTING ARTI.BOOM CATALYSIS MUFFLER NOISE KIT - EUROPE

10

20

51

52

110

120

130

141

142

200

Позиция на иллюстрации	Заводской номер детали		Название детали
210-00022	210-00022		Transmission
10	4143 325 031		Housing, input
20	0634 303 229		O-ring
51	0636 302 013		Plug, screw
52	0634 306 522		O-ring
110	4143 325 017		Piston
120	0732 042 321		Spring, compression
130	0634 307 179		Gasket
141	4143 325 018		Plug, screw
142	0634 304 275		O-ring
200	0634 303 945		O-ring

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
