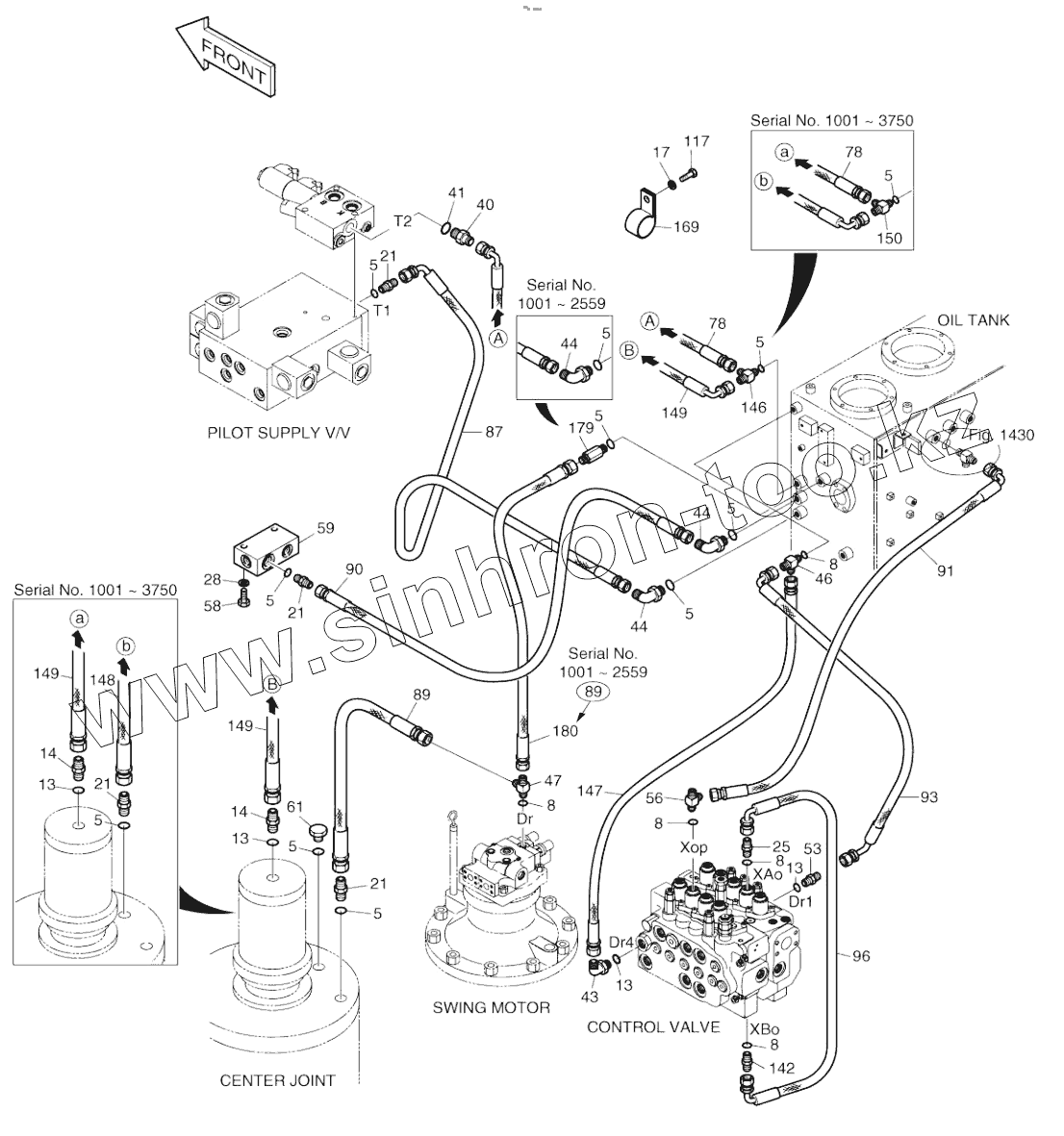

Каталог запасных частей к технике: Doosan SOLAR 160W-V. PILOT PIPING (3)
5
5
5
5
5
5
5
5
5
5
5
8
8
8
8
8
13
13
13
13
14
14
17
21
21
21
21
21
21
21
21
21
21
25
28
40
41
43
44
44
44
44
44
44
44
44
46
47
53
56
58
59
61
78
78
87
89
89
89
89
90
91
93
96
117
142
146
147
148
149
149
149
149
149
149
149
149
150
169
179
180
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 400-01165C | 400-01165C | Pilot piping | |
| 5 | S8000181 | O-RING | |
| 8 | S8000141 | O-RING | |
| 13 | S8000111 | O-RING | |
| 14 | 2181-1126D14 | ADAPTER;S PFO-PF1/4 | |
| 17 | S5102503 | WASHER;SPRING | |
| 21 | 2181-1126D6 | ADAPTER | |
| 21 | 2181-1126D6 | ADAPTER | |
| 25 | 2181-1126D36 | ADAPTER PFO3/8-PF1/4 | |
| 28 | S5102603 | WASHER;SPRING M10 | |
| 40 | 2181-1126D30 | Adapter | |
| 41 | S8000161 | O-RING | |
| 43 | 2181-1702D4 | ELBOW | |
| 44 | 2181-1702D2 | ELBOW | |
| 44 | 2181-1702D2 | ELBOW | |
| 46 | 2181-1951D6 | TEE | |
| 47 | 2181-1951D38 | Tee | |
| 53 | 2181-1126D89 | ADAPTER | |
| 56 | 2181-1951D7 | TEE PFO3/8-2PF1/4 | |
| 58 | S0558653 | BOLT M10X1.5X55 | |
| 59 | 2423-1470 | BLOCK | |
| 61 | 2181-1950D7 | PLUG PF1/2 | |
| 78 | 2184-1036D266 | Hose | |
| 87 | 2184-1036D187 | Hose | |
| 89 | 2184-1026D358 | Hose | |
| 89 | 2184-1026D358 | Hose | |
| 90 | 2184-1026D376 | Hose | |
| 91 | 2184-1046D142 | HOSE PF1/4-900L | |
| 93 | 2184-1061D82 | HOSE PF3/8-400L | |
| 96 | 2184-1061D76 | HOSE(90-90)PF1/4-800L | |
| 117 | S0508653 | BOLT M8X1.25X16 | |
| 142 | 2181-1126D96 | ADAPTER PFO3/8-PF1/4 | |
| 146 | 2181-1951D23 | Tee | |
| 147 | 2184-1046D82 | HOSE PF1/4-850L | |
| 148 | 2184-1036D154 | Hose | |
| 149 | 2184-1045D55 | Hose | |
| 149 | 2184-1046D49 | Hose | |
| 150 | 2181-1951D19 | TEE PFO1/2XPF1/2XPF1/4 | |
| 169 | 124-00209D4 | Clip | |
| 179 | 2181-1126D83 | ADAPTER PFO1/2-PF1/2 | |
| 180 | 2184-1026D18 | Hose |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
