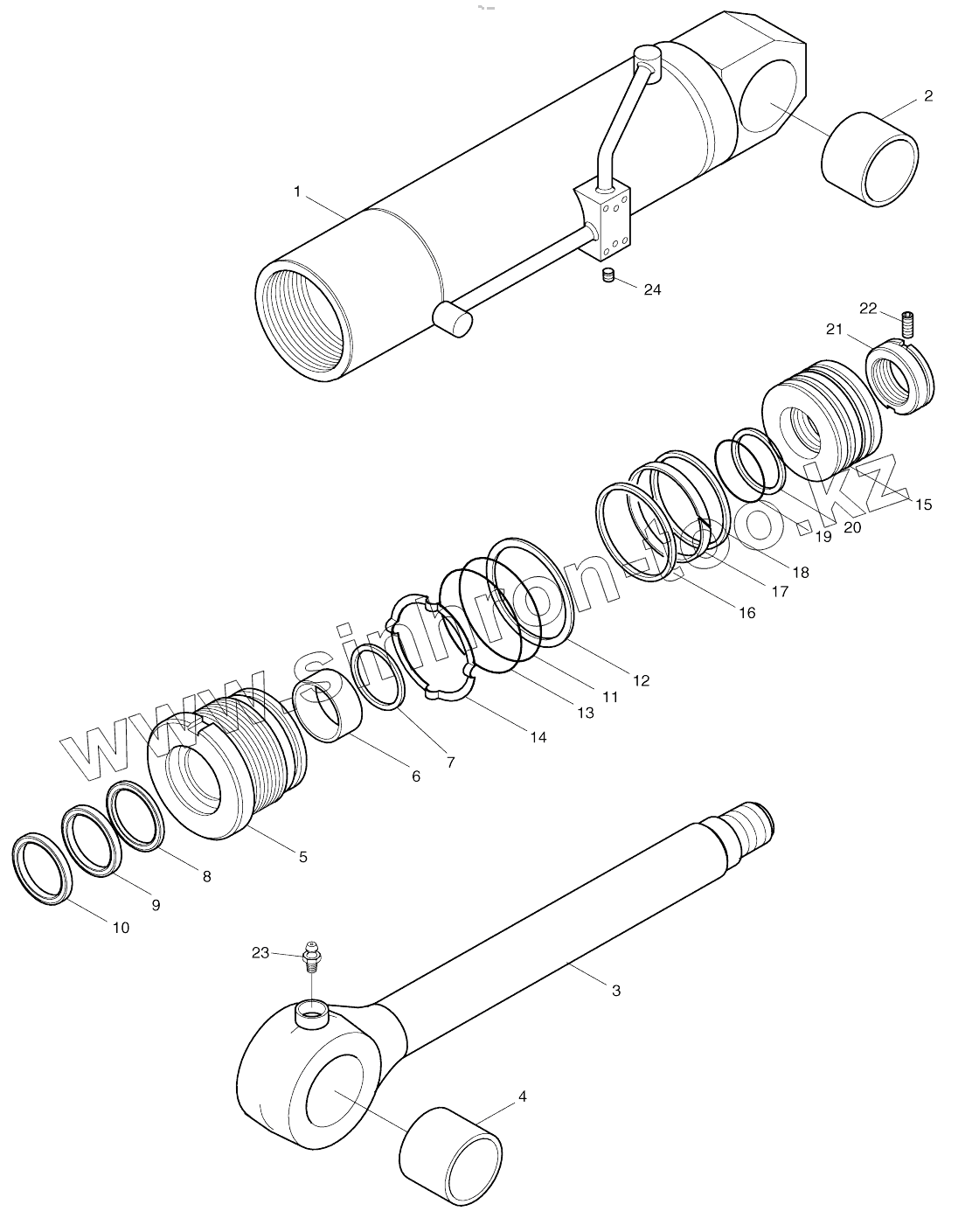

K1003528A
440-00077KT
K1003528
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Позиция на иллюстрации
Заводской номер детали
Название детали
K1003528A
K1003528A
Cylinder, outrigger
440-00077KT
440-00077KT
Seal kit, outrigger
K1003528
K1003528
Cylinder, outrigger
1
53T288-1
Tube assy
1
53T288-0
Tube assy
2
80B420-0
Bush, steel
3
53T232-0
Rod ass`y
4
80B420-0
Bush, steel
5
04T234-0
Cover, rod
6
E8410903
Du-bush
7
00M322-0
RING;RETAINING
8
E5500220
SEAL;BUFFER
9
E5310620
U-packing
10
E6010220
Wiper, dust
11
E6341561
O-ring
12
E6651570
Ring, back up
13
E6341581
O-ring
14
03T251-0
Washer
15
04T235-0
Piston
16
E5130240
SEAL;SLIPPER
17
00W246-0
Ring, wear
18
00S471-0
Ring, dust
19
E6490083
O-RING
20
53A308-1
Ring, back up
21
82A247-1
Nut, piston
22
E1330544
SCREW
23
E8841022
NIPPLE;GREASE
24
E1500020
BOLT;HEX SOCKET
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
