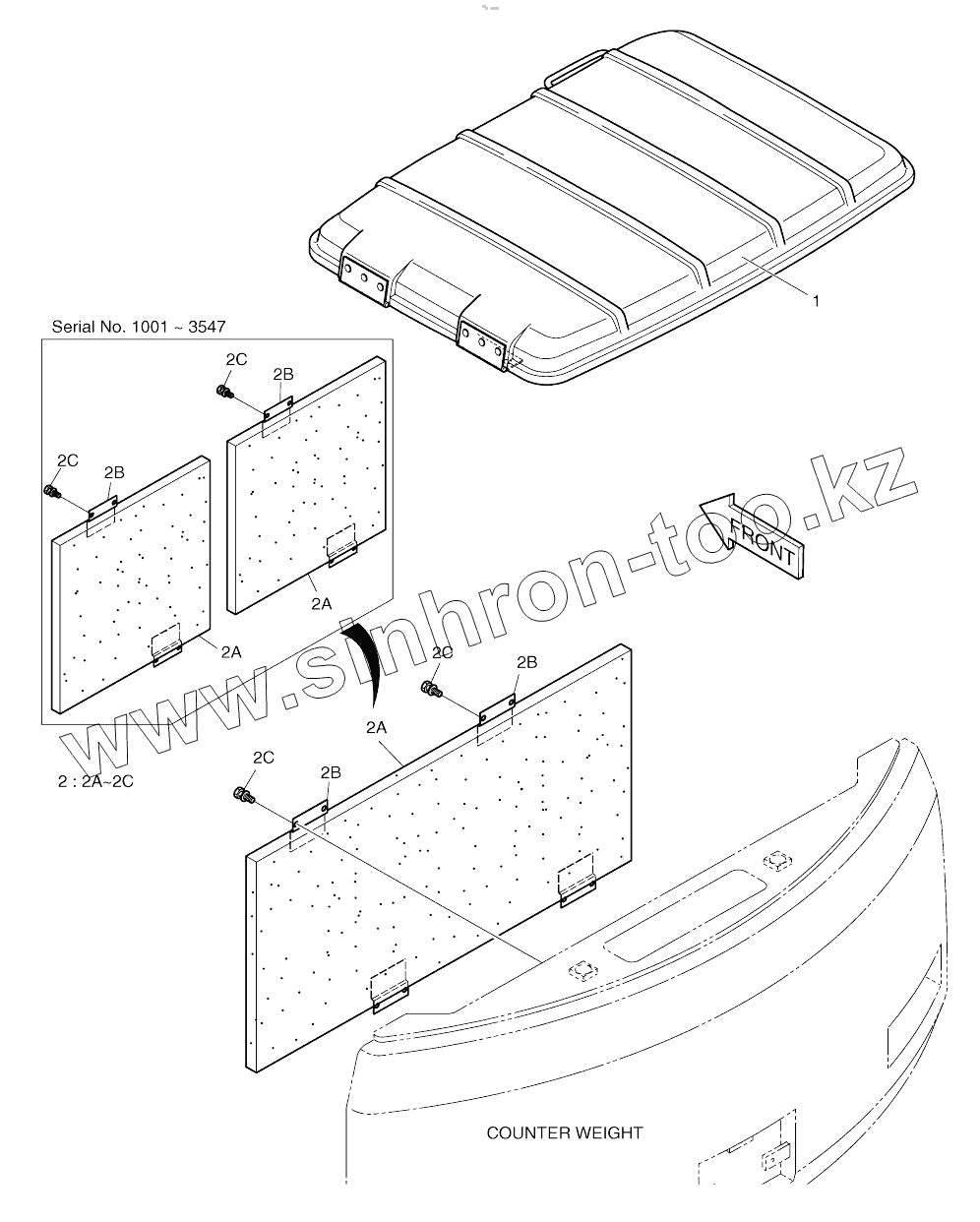

Каталог запасных частей к технике: Doosan SOLAR 160W-V. NOISE KIT - EUROPE
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
DL220 (2010)
DX140W (2017)
DX225LC (2009)
DX225LCA (2012)
S225LC-V (2009)
S340LC-V (2009)
S500LC-V (2007)
SOLAR 130W-V(1) (2017)
SOLAR 130W-V(2) (2017)
SOLAR 140W-V (2017)
SOLAR 140W-V & S160W-V (2017)
SOLAR 160W-V (2017)
SOLAR 170W-V (2017)
SOLAR 180W-V (2017)
SOLAR 210W-V (2017)
SOLAR 255LC-V (DI EXP) (2017)
SOLAR 420LC-V (2017)
Мини-погрузчик 430 Plus (2010)
Мини-погрузчик 440 Plus (2010)
Мини-погрузчик 450 Plus (2010)
Мини-погрузчик 450 Plus (Tier3) (2010)
Мини-погрузчик 460 Plus (2010)
Мини-погрузчик 460 Plus (Tier3) (2010)
Мини-погрузчик 470 Plus (2010)
Экскаватор SOLAR 140LC-V (2010)
Экскаватор SOLAR 175LC-V (2010)
Схема
>
Не выбрано
CYLINDER BLOCK
TIMING GEAR CASE
FLYWHEEL HOUSING
CRANK SHAFT
CYLINDER HEAD
VALVE MECHANISM
OIL PUMP
OIL FILTER
OIL COOLER
OIL PAN
THERMOSTAT
WATER PUMP AND COOLING FAN
INTAKE AND EXHAUST MANIFOLD
TURBO CHARGER AND OIL PIPE
FUEL SYSTEM
FUEL FILTER
ALTERNATOR MOUNTING
STARTER
OVER HAUL GASKET KIT-TOP
OVER HAUL GASKET KIT-ALL
MAIN FRAME
ENGINE MOUNTING
RADIATOR AND OIL COOLER
RESERVE TANK
MUFFLER
AIR CLEANER ASSY
PUMP INSTALLATION
PUMP INSTALLATION-OPTION
FUEL TANK
OIL TANK
SWING DEVICE
SWING DEVICE-OPTION
ENGINE CONTROL ASS'Y
LEVER ASS'Y-ENGINE SUB
OIL COOLER PIPING
OIL COOLER PIPING
OIL COOLER PIPING
MAIN PIPING (1)-PUMP
MAIN PIPING (2)-BOOM
MAIN PIPING (3)-ARM. BUCKET
MAIN PIPING (4)-SWING
MAIN PIPING (5)-TRAVEL
PILOT PIPING (1)
PILOT PIPING (2)
PILOT PIPING (3)
PILOT PIPING (4)
PILOT PIPING (5)
PILOT PIPING (6)
PILOT PIPING (7)
PILOT PIPING (8)
PILOT PIPING (9) (1001 ~ 3750)
PILOT PIPING (9) (3751 ~ )
PILOT PIPING (10)
PILOT PIPING (11)
PILOT PIPING (12)
BRAKE PIPING (1)
BRAKE PIPING (2)
STEERING PIPING
STEERING WHEEL ASSY
STEERING COLUMN ASSY
COLUMN ASSY
CONTROL STAND-L.H.
CONTROL STAND-R.H.
SEAT AND ELECTRIC BOX
SEAT MOUNTING-EUROPE AND U.S.A
SEAT-EUROPE AND U.S.A
DUCT COVER ASS'Y
HEATER COVER ASS'Y
CABIN MOUNT ASS'Y
CABIN ASS'Y
CABIN (1)
CABIN (2)
CABIN (3)
CABIN (4)
CABIN (5)
SUPPORT
SUPPORT-CONDENSER
COVER (1)
COVER (2)
COVER (3)
COVER (4)
COVER (5)
BAFFLE ASSY (1)
BAFFLE ASSY (2)
ACOUSTIC FOAM
UNDER COVER
LUBRICATOR PIPING
ELECTRIC BOX ASSY
ELECTRIC BOX ASS'Y-ELECTRIC PARTS
ELECTRIC PARTS (1)-GAUGE AND SWITCH PANEL
ELECTRIC PARTS (2)-STAND R.H.
ELECTRIC PARTS (3)-STAND L.H.
ELECTRIC PARTS(4)-CABIN
ELECTRIC PARTS(5)-BATTERY
ELECTRIC PARTS(6)-ENGINE
ELECTRIC PARTS(7)-RELATED PART
ELECTRIC PARTS(8)-LAMP PART
ELECTRIC WIRING(1)-BATTERY
ELECTRIC WIRING(2)-ENGINE
ELECTRIC WIRING(3)-RELATED PART
AIR CONDITIONER (1)
AIR CONDITIONER (2)-AIRCON UNIT
HEATER PIPING
CHASSIS FRAME
POWER TRAIN
CHASSIS COMPONENTS
BRAKE PIPING
STEER AND CHOCK PIPING
PROPELLING PIPING
BLADE (1001 ~ 2159)
BLADE (2160-)
BLADE PIPING (1001 ~ 2159)
BLADE PIPING (2160-)
OUTRIGGER ASSY-FRONT
OUTRIGGER ASS'Y-REAR (2520 ~)
DOZER AND OUTRIGGER PIPING
FRONT OUTRIGGER PIPING
REAR OUTRIGGER PIPING
BOOM -4.6m
ARM -2.5m
BUCKET-0.5m3
FRONT PIPING-BOOM-4.6m+ARM -2.5m
FRONT LUBRICATOR PIPING-BOOM-4.6m
MAIN PUMP
REGULATOR-FRONT
REGULATOR-REAR
PTO ASS'Y
GEAR PUMP
GEAR PUMP (2 PORT)
SWING MOTOR
SWING REDUCTION GEAR
TRAVEL MOTOR
PISTON MOTOR-TRAVEL MOTOR
ROTARY GROUP-TRAVEL MOTOR
REGULATOR-TRAVEL MOTOR
CONTROL PARTS-TRAVEL MOTOR
COUNTER BALANCE VALVE-TRAVEL MOTOR
CONTROL VALVE
CONTROL VALVE-ARTI.BOOM (1001-3530)
CONTROL VALVE-ARTI.BOOM (3105-)
STEERING VALVE
PILOT AND T/M SUPPLY VALVE
PILOT AND T/M SUPPLY VALVE-DOZER AND OUTRIGGER
PILOT CHECK VALVE-OUTRIGGER CYL.
REMOTE CONTROL VALVE (1001 ~ 3530)
REMOTE CONTROL VALVE (3531-)
REMOTE CONTROL VALVE-3 SWITCH
REMOTE CONTROL VALVE-DOZER
BRAKE SUPPLY VALVE
FOOT BRAKE VALVE
BREAKER PACKAGE VALVE
PEDAL VALVE-ARTI.BOOM
SOLENOID VALVE
CENTER JOINT
CENTER JOINT
BOOM CYLINDER (L.H.)
BOOM CYLINDER (R.H.)
ARM CYLINDER-ARM 2.5M 3.0M
BUCKET CYLINDER
DOZER CYLINDER (L.H.)
DOZER CYLINDER (R.H.)
CHOCKING CYLINDER (1001~1959)
CHOCKING CYLINDER-L.H (1960-)
CHOCKING CYLINDER-R.H (1960-)
OUTRIGGER CYLINDER-FRONT
OUTRIGGER CYLINDER-REAR (2750-)
BOOM CYL.(L.H)-LOCK VALVE-BOOM 4.6M
BOOM CYL.(R.H)-LOCK VALVE-BOOM 4.6M
ARM CYLINDER-LOCK VALVE-BOOM 4.6M
BOOM CYLINDER(L.H)-ARTI.BOOM
BOOM CYLINDER(R.H)-ARTI.BOOM
ARTI.BOOM CYLINDER
ARM CYLINDER-ARTI.BOOM
BOOM CYLINDER(L.H)-L/V FOR-ARTI.BOOM
BOOM CYLINDER(R.H)-L/V FOR-ARTI.BOOM
ARTI.BOOM CYLINDER-LOCK VALVE
ARM CYLINDER-L/V FOR ARTI.BOOM
DIFFERENTIAL HOUSING-FRONT AXLE
DIFFERENTIAL-FRONT AXLE
PLANET GEAR-FRONT AXLE
BRAKE-FRONT AXLE
STEERING CYLINDER-FRONT AXLE
SUPPORT SYSTEM-FRONT AXLE
DIFFERENTIAL HOUSING-REAR AXLE
DIFFERENTIAL-REAR AXLE
PLANET GEAR-REAR AXLE
BRAKE-REAR AXLE
PROPELLING HOUSING-TRANSMISSION
INPUT SHAFT-TRANSMISSION
HOUSING-TRANSMISSION
OIL PIPE-TRANSMISSION
COUPLING-TRANSMISSION
M-DISC BRAKE-TRANSMISSION
PLANETARY DRIVE-TRANSMISSION
DISCONNECTION DEVECE-TRANSMISSION
SPUR GEAR DRIVE-TRANSMISSION
GEAR SHIFT SENSOR-TRANSMISSION
OUTPUT SHAFT-TRANSMISSION
OPTION VALVE
TOOLS
SPARE PARTS
FUEL FILLER PUMP ASS'Y
DOUBLE FUEL FILTER
SUN VISOR ASS'Y
SUN ROOF ASS'Y
NOISE FILTER ASS'Y-EUROPE
CABIN LAMP ASSY
6-LAMP AND BEACON (TELESCOPIC)
BEACON
RETURN FILTER SWITCH ASS`Y
ALTERNATOR
OVERLOAD WARNING ASSY
CABIN LOW GUARD
JOYSTICK VALVE ASS'Y 3-SWITCH
TROPICAL COVER
POWER TRAIN-10.0 TIRE
POWER TRAIN-SINGLE TIRE
ARM -1.9m
ARM -2.25m
ARM -3.0m
BUCKET -0.2m3
BUCKET-0.35m3
BUCKET-0.45m3
BUCKET-0.55m3
BUCKET-0.65m3
BUCKET-0.38m3 (30")-SIDE PIN
BUCKET-0.38m3 (30")-VERTICAL PIN
BUCKET-0.44m3 (33")-SIDE PIN
BUCKET-0.44m3 (33")-VERTICAL PIN
BUCKET-0.48m3 (36")-SIDE PIN
BUCKET-0.48m3 (36")-VERTICAL
FRONT PIPING-BOOM 4.6M + ARM 2.25M
FRONT PIPING-BOOM 4.6M + ARM 3.0M
MAIN PIPING-ONE AND TWO WAY
PILOT PIPING-BREAKER
BOOM PIPING-BOOM 4.6M (ONE WAY)
ARM PIPING-ARM 1.9m (ONE WAY)
ARM PIPING-ARM 2.25m (ONE WAY)
ARM PIPING-ARM 2.5m (ONE WAY)
ARM PIPING-ARM 3.0m (ONE WAY)
NAME PLATE-ONE AND TWO WAY
LOCK VALVE PIPING-BOOM 4.6M
MAIN PIPING-ROTATION AND TILTING
PILOT PIPING-ROTATION AND TILTING
FLOOR ASS'Y-ROTATION AND TILTING
BOOM PIPING-4.6M ROTATING AND TILTING
ARM PIPING(2.5m)-ROTATION AND TILTING
ARM PIPING(3.0m)-ROTATION AND TILTING
PILOT PIPING-P3C AND TILTING
PILOT PIPING-P3C
ARTI. BOOM ASS'Y
MAIN PIPING-ARTI.BOOM
PILOT PIPING-ARTI.BOOM
FRONT PIPING-ARTI.BOOM
FRONT LUBRICATION PPING-ARTI.BOOM
ARM PIPING-ARM 2.5M (ARTI.BOOM)
LOCK VALVE PIPING-ARTI.BOOM
STAY ASS'Y-ARTI.BOOM
MAIN PIPING-ARTI. BOOM-2 WAY
FRONT PIPING-ARTI. BOOM-1 WAY
CHASSIS FRAME BOLT-ON CRADLE AND REMOTE
OPTION ASS'Y-GERMAN
LAMP ASS'Y-GERMAN
ARM LAMP HARNESS-GERMAN
FLOOR ASS'Y-MULTI PIPING (2520-)
PILOT PIPING-ROTATING AND TILTING ARTI.BOOM
CATALYSIS MUFFLER
NOISE KIT - EUROPE
K1009384
1
2
2A
2A
2A
2A
2A
2A
2A
2A
2B
2B
2B
2B
2C
2C
2C
2C
2C
Позиция на иллюстрации
Заводской номер детали
Название детали
K1009384
K1009384
Noise kit - europe
1
K1004671A
COVER;ENGINE
2
K1009386A
Acoustic foam
2A
K1009431
Foam, polyurethane
2A
K1016166
Foam, polyurethane
2B
195-00692
BRACKET
2C
2120-2196D1
BOLT;SET M10X1.5X20
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
