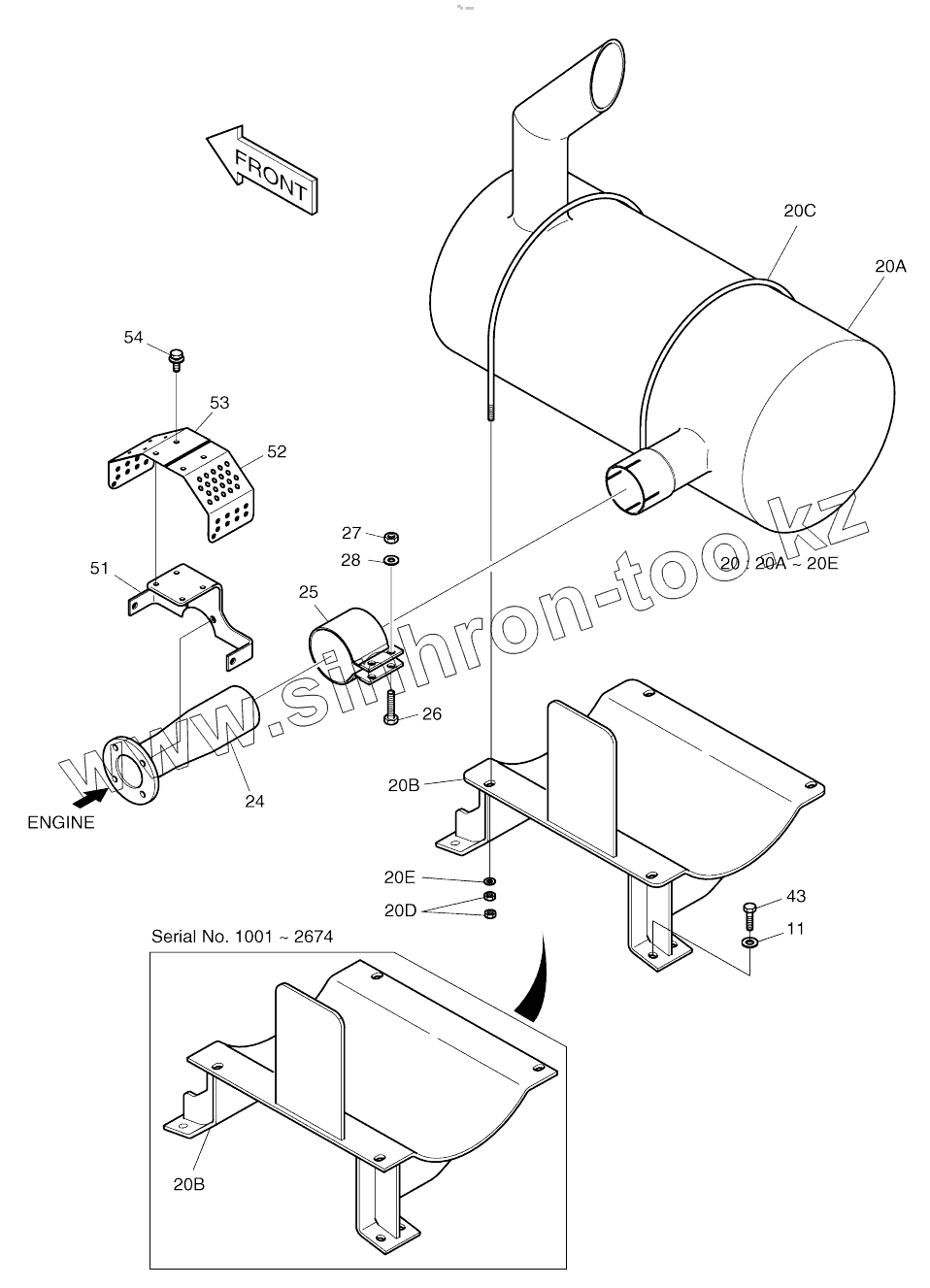

Позиция на иллюстрации
Заводской номер детали
Название детали
201-00130
201-00130
Engine assy
201-00130A
201-00130A
Engine assy
11
S5102603
WASHER;SPRING M10
20
203-00085
Muffler sub assy
20
203-00085A
Muffler sub assy
20
203-00085B
Muffler sub assy
20A
203-00013A
MUFFLER
20B
195-02123
Bracket, muffler
20B
195-02123A
Bracket, muffler
20C
2120-2135
BOLT;U M10X1.5
20C
2120-2135A
BOLT;U M10X1.5
20D
S4012633
NUT M10X1.5
20E
S5010613
WASHER;PLAIN
24
2182-1573B
PIPE;EXHAUST
24
2182-1573C
PIPE;EXHAUST
25
2124-1592A
CLAMP
26
S0515353
BOLT M12X1.75X35
27
S4012733
NUT M12
28
S5010713
WASHER;PLAIN
43
S0511853
BOLT M10X1.5X20
51
195-02320
BRACKET
52
621-02363
COVER
53
621-02364
COVER
54
120-00276
BOLT M8X1.25X12
