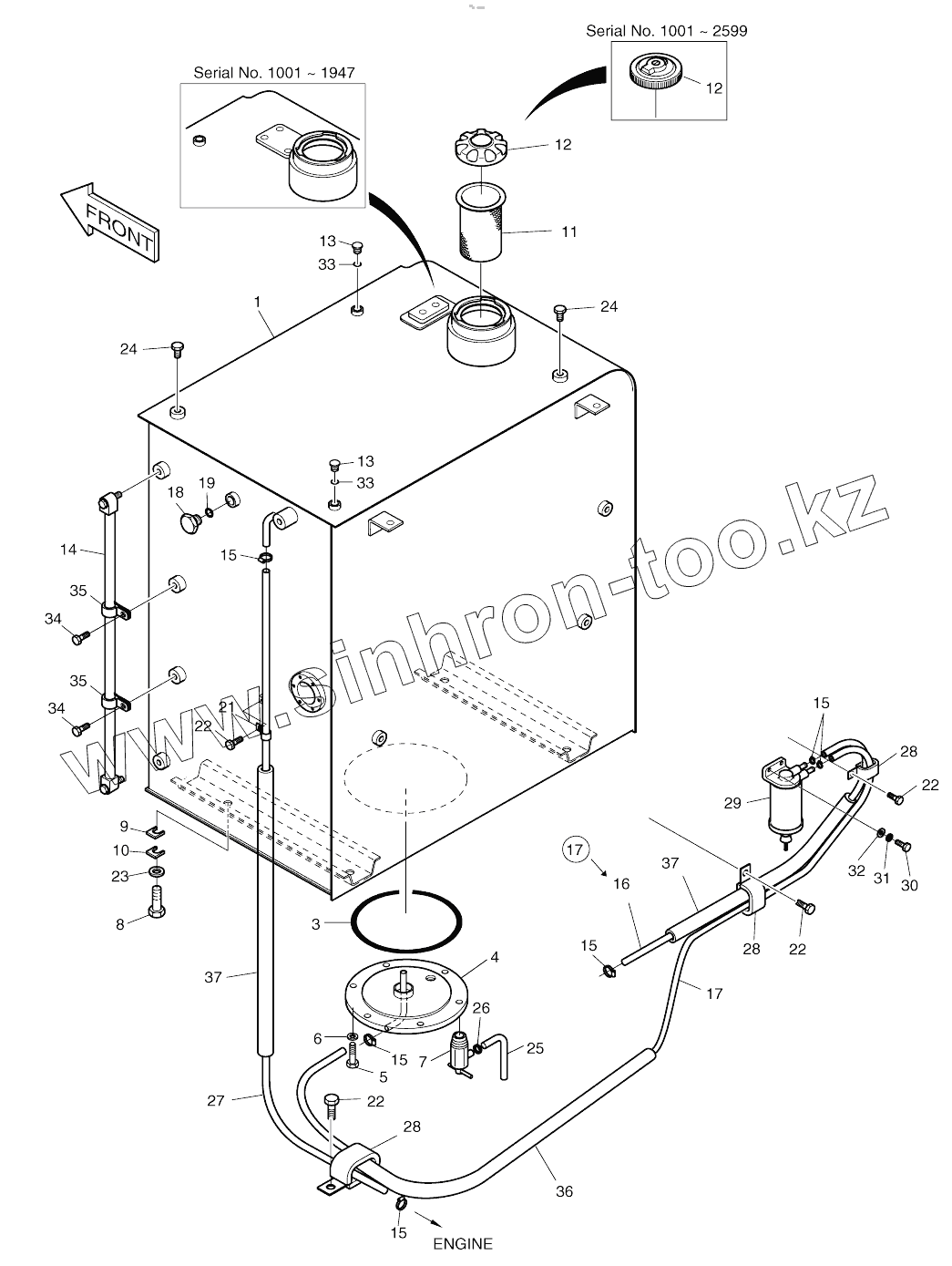

Каталог запасных частей к технике: Doosan SOLAR 160W-V. FUEL TANK
470-00153A
470-00153
1
1
1
1
3
4
5
6
7
8
9
10
11
11
12
12
12
12
12
12
12
12
12
12
12
12
13
13
14
15
15
15
15
15
16
17
17
17
17
17
17
17
17
17
18
19
21
22
22
22
22
22
22
22
22
22
22
23
24
24
25
26
27
28
28
28
28
28
28
28
28
29
29
30
31
32
33
33
34
34
35
35
36
37
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 470-00153A | 470-00153A | Fuel tank assy | |
| 470-00153 | 470-00153 | Fuel tank assy | |
| 1 | 470-00152 | Tank, fuel | |
| 1 | 470-00152A | Tank, fuel | |
| 1 | 470-00152B | Tank, fuel | |
| 1 | 470-00152C | Tank, fuel | |
| 3 | S8011650 | O-RING | |
| 4 | 2473-1033B | Cover | |
| 5 | S0512053 | BOLT M10X1.5X25 | |
| 6 | S5102603 | WASHER;SPRING M10 | |
| 7 | 2186-9001 | Cock | |
| 8 | S0521351 | Bolt | |
| 9 | 2114-1813 | SHIM D20X0.8T | |
| 10 | 2114-1814 | SHIM D20X1.6T | |
| 11 | 2471-9046 | FILTER;FUEL | |
| 11 | 471-00105 | FILTER;FUEL | |
| 12 | 2188-9008 | CAP;FUEL | |
| 12 | 188-00018 | CAP;FUEL | |
| 12 | 188-00014A | CAP;FUEL | |
| 12 | K1004166 | CAP;FUEL | |
| 13 | 2181-1950D1 | PLUG | |
| 14 | 119-00014D1 | Gauge, level | |
| 15 | S8450012 | CLAMP;HOSE | |
| 16 | 2185-1247D25 | HOSE;FUEL 2100L | |
| 17 | 2185-1247D25 | HOSE;FUEL 2100L | |
| 17 | 2185-1247D130 | Hose | |
| 17 | 2185-1247D34 | Hose | |
| 18 | 2181-1950D7 | PLUG PF1/2 | |
| 19 | S8000231 | O-RING | |
| 21 | 124-00208D3 | CLIP D20/M8 | |
| 22 | 120-00276 | BOLT M8X1.25X12 | |
| 22 | 120-00276 | BOLT M8X1.25X12 | |
| 23 | 2114-1816 | WASHER;HARD | |
| 24 | S0514653 | BOLT M12X1.75X16 | |
| 25 | 2184-9089 | Hose, vinyl | |
| 26 | S8450006 | CLAMP;HOSE | |
| 27 | 2185-1247D33 | Hose 2620l | |
| 28 | 124-00209D1 | CLIP 2-D20/M8 | |
| 28 | 2124-1509D7 | Clip, hose | |
| 29 | 471-00082 | SEPERATOR;WATER | |
| 29 | 471-00082A | SEPERATOR;WATER | |
| 30 | S0552953 | Bolt | |
| 31 | S5102303 | WASHER;SPRING M6 | |
| 32 | 2114-1058D52 | WASHER | |
| 33 | S8000111 | O-RING | |
| 34 | 120-00276 | BOLT M8X1.25X12 | |
| 35 | DS2802021 | Clip | |
| 36 | 161-00558 | Sponge | |
| 37 | 161-00559 | Sponge |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
