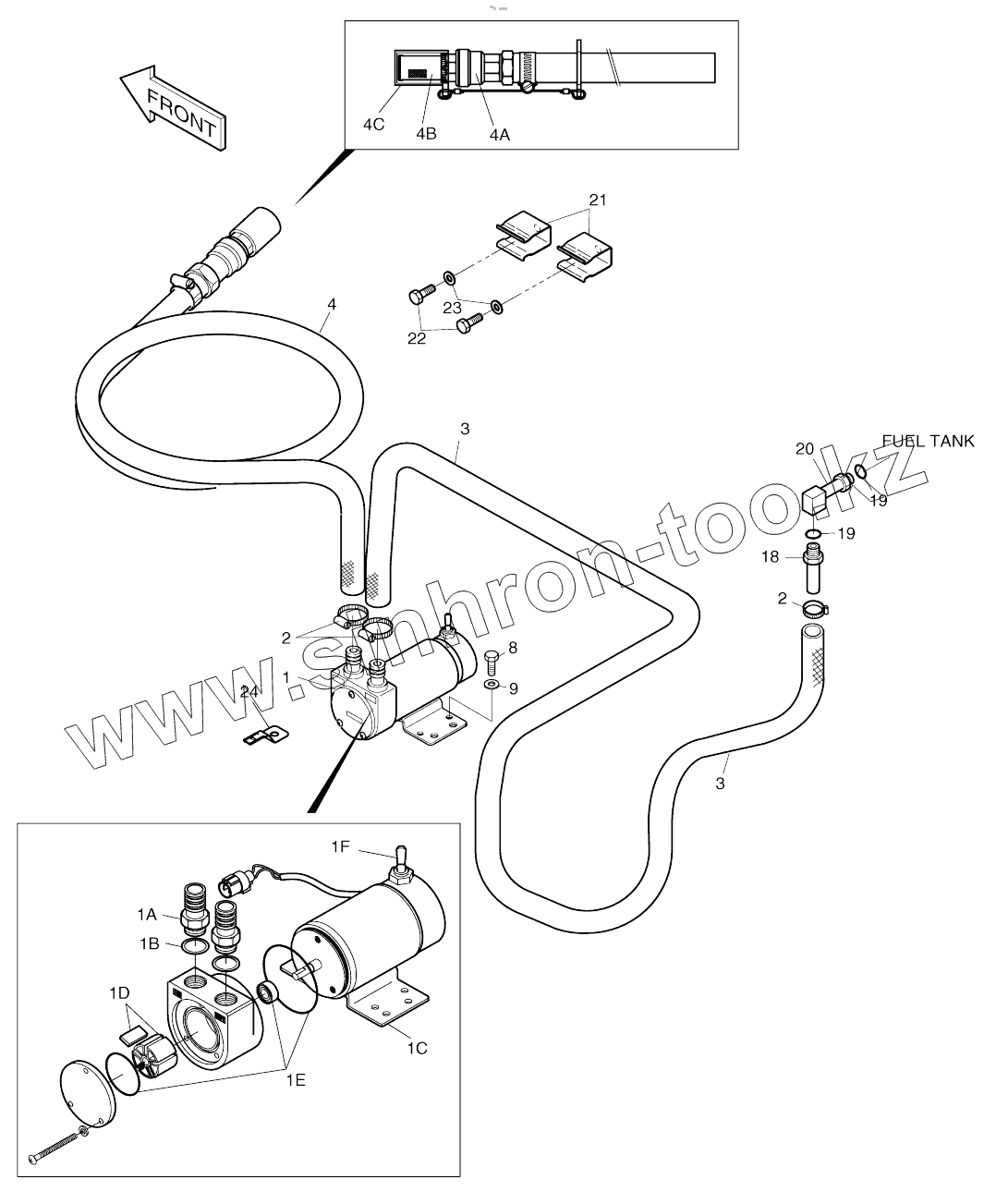

1
1A
1B
1C
1D
1E
1F
2
2
3
3
3
3
4
4A
4B
4C
8
9
18
19
19
20
21
22
23
24
Позиция на иллюстрации
Заводской номер детали
Название детали
401-00371
401-00371
Pump assy
401-00371A
401-00371A
Pump assy
1
401-00373
PUMP;FUEL
1A
2181-2755B
ADAPTER
1B
S8180321
SEAL;WASHER
1C
523-00002A
MOTOR;FUEL TRANSFER PUMP
1D
407-00001
VANE KIT
1E
2401-1276KT
SEAL KIT
1F
2549-9096
SWITCH;TOGGLE
2
S8450023
CLAMP
3
2185-1353D29
Hose
3
2185-1247D84
Hose
4
185-00167D3
HOSE ASS'Y 3/4-4000L
4A
2420-1258
VALVE;CHECK
4B
2471-1152
STRAINER
4C
2160-1336
CAP;STRAINER
8
S0508553
BOLT M8X1.25X14
9
S5010513
WASHER;PLAIN M8
18
2181-2104D6
ADAPTER PF1/2
19
S8000181
O-RING
20
2181-2295D15
ELBOW PF1/2-12
21
124-00152A
Clamp
22
S2208471
Bolt, socket
23
S5110501
Washer, spring
24
195-02154
Bracket
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
