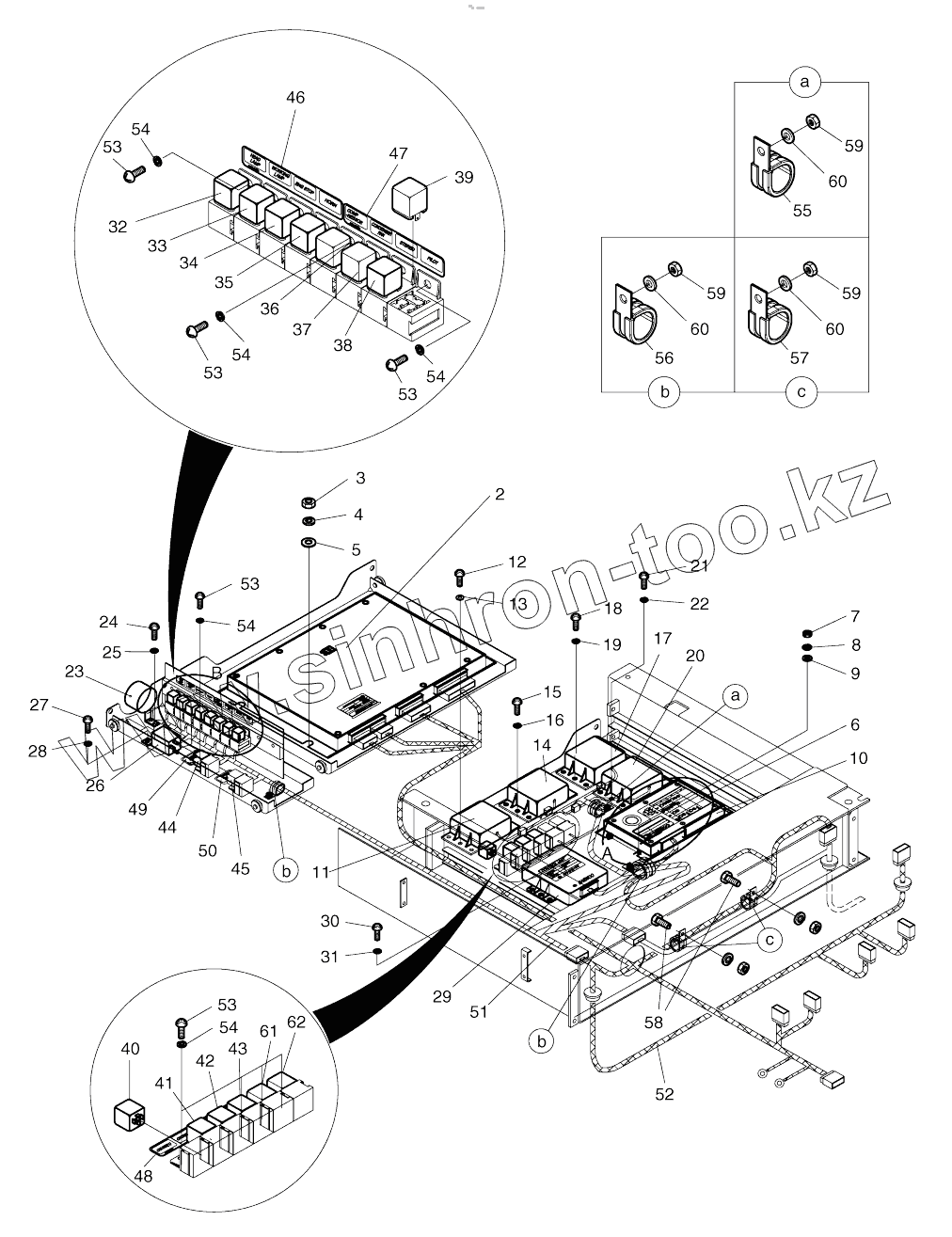

Каталог запасных частей к технике: Doosan SOLAR 160W-V. ELECTRIC BOX ASS'Y-ELECTRIC PARTS

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
500-00196B
500-00196A
500-00196G
500-00196E
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
51
51
52
52
52
52
53
53
53
53
53
54
54
54
54
54
55
56
57
58
59
59
59
60
60
60
61
62
Позиция на иллюстрации Заводской номер детали Название детали
500-00196B 500-00196B Electric box assy
500-00196A 500-00196A Electric box assy
500-00196G 500-00196G Electric box assy
500-00196E 500-00196E Electric box assy
2 543-00061 Controller, e-epos
3 S4012633 NUT M10X1.5
4 S5102603 WASHER;SPRING M10
5 S5010613 WASHER;PLAIN
6 543-00074 CONTROLLER;THROTTLE
7 S4012333 NUT M6X1.0
8 S5102303 WASHER;SPRING M6
9 S5010313 WASHER;PLAIN
10 2190-3231D27 Plate, name
11 2543-9015 STARTER;CONTROLLER
12 S3450943 SCREW M6X1.0X10
13 S5102303 WASHER;SPRING M6
14 2537-9008 TIMER;WIPER
15 S3450943 SCREW M6X1.0X10
16 S5102303 WASHER;SPRING M6
17 2531-1003 CONVERTER;DC-DC (2)
18 S3450953 SCREW M6X1.0X12
19 S5102303 WASHER;SPRING M6
20 2531-1003 CONVERTER;DC-DC (2)
21 S3450953 SCREW M6X1.0X12
22 S5102303 WASHER;SPRING M6
23 2516-1116 BUZZER;PILOT
24 S3450943 SCREW M6X1.0X10
25 S5102303 WASHER;SPRING M6
26 2525-1011 Unit, blinker
27 S3450943 SCREW M6X1.0X10
28 S5102303 WASHER;SPRING M6
29 543-00077 Unit, control
30 S3450943 SCREW M6X1.0X10
31 S5102303 WASHER;SPRING M6
32 2544-9033 RELAY
33 2544-9033 RELAY
34 2544-9033 RELAY
35 2544-9033 RELAY
36 2544-9033 RELAY
37 2544-9033 RELAY
38 2544-9033 RELAY
39 2544-9033 RELAY
40 2544-9033 RELAY
41 2544-9033 RELAY
42 2544-9033 RELAY
43 2544-9033 RELAY
44 2544-9033 RELAY
45 2544-9033 RELAY
46 2190-2037D19 PLATE;NAME
47 2190-2037D21 Plate, name
48 2190-2037D2 Plate, name
49 2190-2037D22 Plate, name
50 2190-2037D58 Plate, name
51 530-00275 Harness, electric box
51 530-00275B Harness, electric box
51 530-00275A Harness, electric box
52 530-00276A Harness, cabin
52 530-00276B Harness, cabin
52 530-00276E Harness, cabin
52 530-00276G Harness, cabin
53 S3450823 SCREW M5X0.8X10
54 S5100203 WASHER;SPRING
55 124-00208D3 CLIP D20/M8
56 124-00208D5 CLIP D32/M8
57 124-00208D6 CLIP D38/M8
58 S0508853 BOLT M8X1.25X20
59 S4012533 NUT M8X1.25
60 S5102503 WASHER;SPRING
61 2190-2037D69 Plate, name
62 2544-9033 RELAY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
