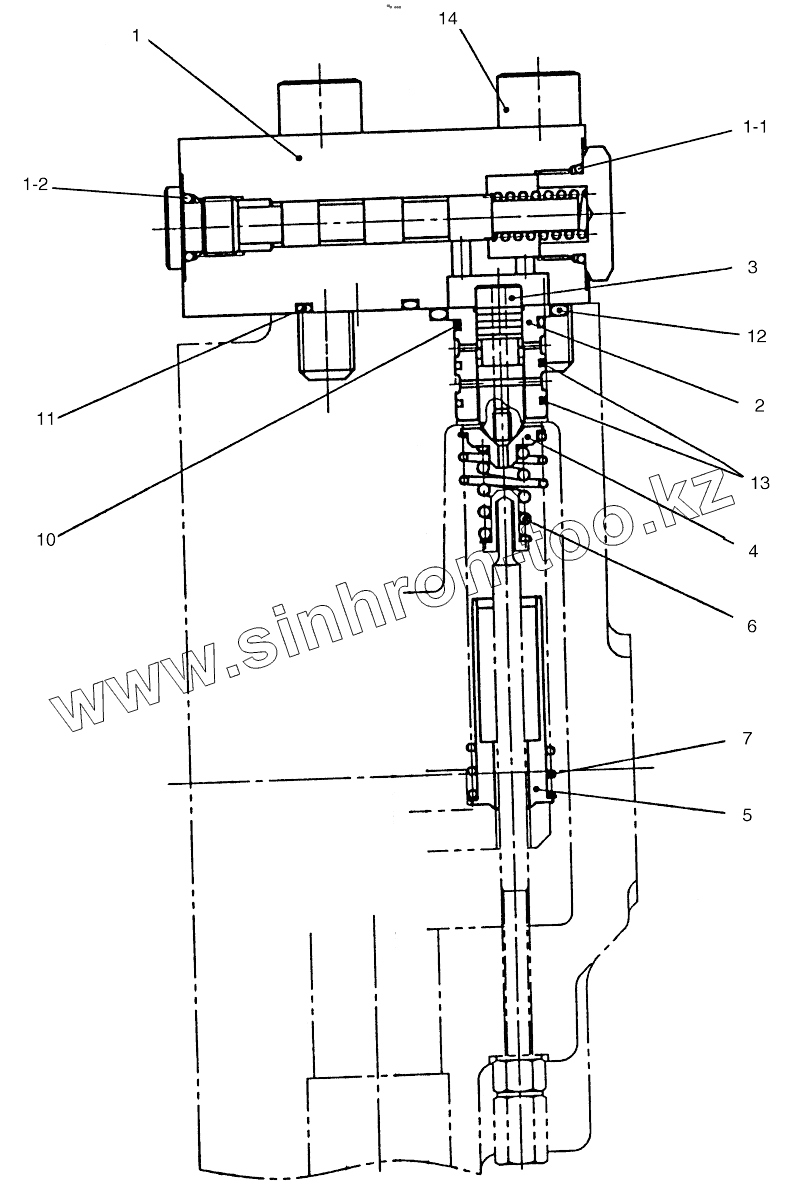

1
1-1
1-2
2
3
4
5
6
7
10
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
4100607677
4100607677
Control assy
1
4100607686
Valve assy
1-1
1301190003
O-ring
1-2
1301169009
O-ring
2
1700767554
Barrel
3
1100417523
Spool
4
1700692551
Seat, spring
5
1100513108
Seat, spring
6
1700736734
Spring
7
1100541919
Spring
10
1300050005
O-ring
11
1300166009
O-ring
12
1300346003
O-ring
13
1701538733
Ring, piston
14
1301613001
Bolt, socket
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
