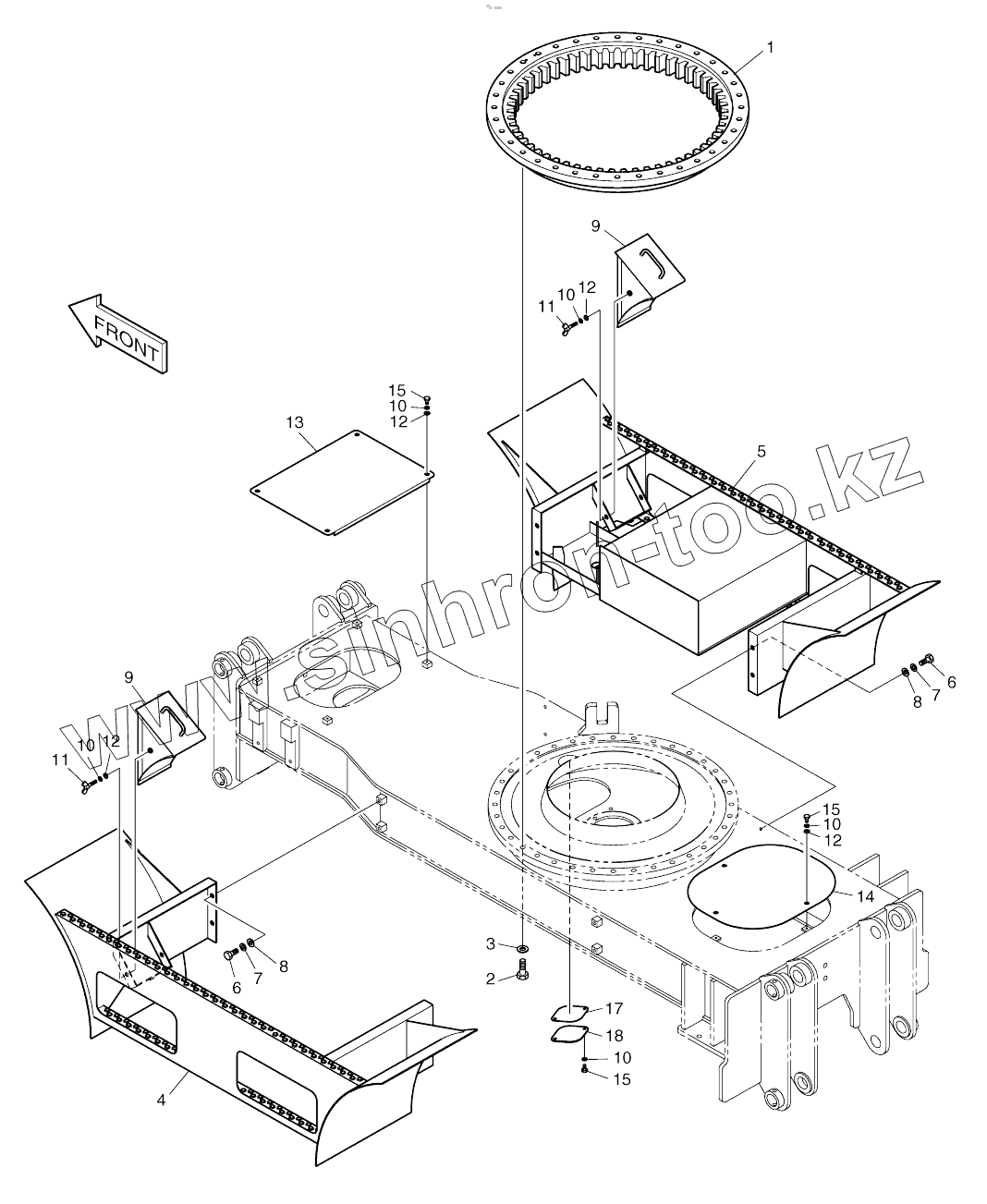

1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
10
10
10
10
11
11
12
12
12
12
13
14
15
15
15
17
18
Позиция на иллюстрации
Заводской номер детали
Название детали
K1007339
K1007339
Chassis components
230-00055
230-00055
Chassis components
1
109-00029A
Bearing, swing
2
S0770066
Bolt
3
2114-9012A
WASHER;HARD
4
625-00045A
Step
5
625-00047A
Step
5
K1007298
Step, r.h
6
S0521466
BOLT M16X2.0X40
7
S5102903
WASHER;SPRING
8
2114-1058D2
WASHER
9
2542-1002A
Chock, wheel
10
S5102603
WASHER;SPRING M10
11
S3056253
Bolt, wing
12
2114-1058D1
Washer
13
2621-3530A
Cover, front
14
621-02249
Cover, rear chassis
15
S0511853
BOLT M10X1.5X20
17
2180-1017A
PACKING
18
2403-1002
COVER
