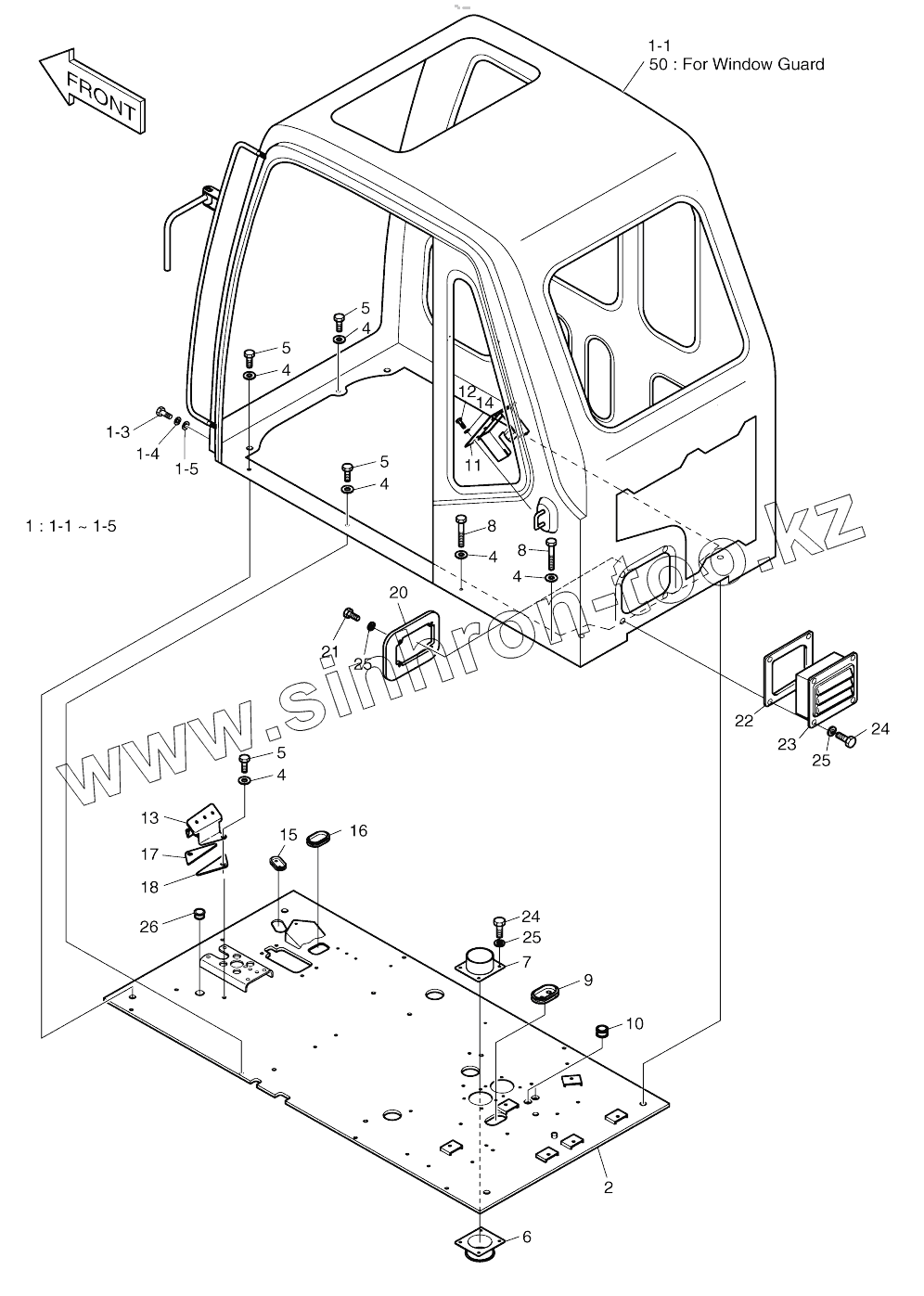

Каталог запасных частей к технике: Doosan SOLAR 160W-V. CABIN ASS'Y
622-00235B
622-00235E
622-00235G
622-00235H
622-00235K
1
1
1
1
1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-3
1-4
1-5
1-5
2
2
4
4
4
4
4
4
5
5
5
5
6
7
8
8
9
10
11
11
12
13
14
15
16
17
18
20
21
22
23
24
24
25
25
25
26
50
50
50
50
50
50
50
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 622-00235B | 622-00235B | Cabin assy | |
| 622-00235E | 622-00235E | Cabin assy | |
| 622-00235G | 622-00235G | Cabin assy | |
| 622-00235H | 622-00235H | Cabin assy | |
| 622-00235K | 622-00235K | Cabin assy | |
| 1 | 622-00299 | Cabin assy | |
| 1 | 622-00299A | Cabin assy | |
| 1 | 622-00299B | Cabin assy | |
| 1 | 622-00299C | Cabin assy | |
| 1 | 622-00299G | Cabin assy | |
| 1-1 | 622-00210A | Cabin assy | |
| 1-1 | 622-00210B | Cabin assy | |
| 1-1 | 622-00210C | Cabin assy | |
| 1-1 | 622-00210E | Cabin assy | |
| 1-1 | 622-00210H | Cabin assy | |
| 1-3 | 2120-2166D4 | BOLT M10X1.5X20 | |
| 1-4 | 2114-2031D5 | WASHER;SPRING M10 | |
| 1-5 | 2114-1898D1 | WASHER | |
| 2 | 621-02185A | Plate, floor | |
| 2 | 621-02185C | Plate, floor | |
| 4 | 2114-1898D1 | WASHER | |
| 5 | 2120-2166D2 | BOLT M10X1.5X25 | |
| 6 | 160-00030 | BOOT | |
| 7 | 195-01765B | BRACKET | |
| 8 | 2120-2166D3 | BOLT M10X1.5X65 | |
| 9 | 2160-1308 | BUSHING;RUBBER | |
| 10 | 2160-1004D48 | BUSHING;RUBBER | |
| 11 | 195-01784B | BRACKET;AUDIO CASSETTE | |
| 11 | 195-01784C | BRACKET;AUDIO CASSETTE | |
| 12 | S0508853 | BOLT M8X1.25X20 | |
| 13 | 2197-1704A | BRACKET;FOOT REST(L.H) | |
| 14 | S5010513 | WASHER;PLAIN M8 | |
| 15 | 2160-1313 | Bushing, rubber | |
| 16 | 2160-1312 | Bushing, rubber | |
| 17 | 161-00329 | RUBBER;DAMPER(L.H) | |
| 18 | 161-00330 | RUBBER;DAMPER(L.H) | |
| 20 | 621-01160 | COVER;FRESH AIR DUCT | |
| 21 | 2120-2166D19 | BOLT M6X1.0X12 | |
| 22 | 2161-2317 | RUBBER;PLATE | |
| 23 | 621-01159 | PLATE;COVER | |
| 24 | 2120-2166D6 | BOLT M6X1.0X16 | |
| 25 | 2114-1898D3 | WASHER | |
| 26 | 2161-2487 | Cap | |
| 50 | 622-00310 | Cabin assy-opt. | |
| 50 | 622-00310A | Cabin assy-opt. | |
| 50 | 622-00310C | Cabin assy-opt. | |
| 50 | 622-00310E | Cabin assy-opt. |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
