Каталог запасных частей к технике: Doosan SOLAR 140W-V & S160W-V. OVERLOAD WARNING ASSY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD VALVE MECHANISM OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP AND COOLING FAN INTAKE AND EXHAUST MANIFOLD TURBO CHARGER AND OIL PIPE FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT-TOP OVER HAUL GASKET KIT-ALL MAIN FRAME ENGINE MOUNTING RADIATOR AND OIL COOLER RESERVE TANK MUFFLER AIR CLEANER ASSY AIR CLEANER PUMP INSTALLATION FUEL TANK OIL TANK SWING DEVICE ENGINE CONTROL ASSY LEVER ASSY-ENGINE SUB OIL COOLER PIPING (1) OIL COOLER PIPING (2) OIL COOLER PIPING (3) MAIN PIPING MONO BOOM (1) - PUMP MAIN PIPING MONO BOOM (2) - SWING MAIN PIPING MONO BOOM (3) - TRAVEL MAIN PIPING MONO BOOM (4) - BOOM MAIN PIPING MONO BOOM (5) - ARM. BUCKET PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4)-JOYSTICK LEFT PILOT PIPING (5)-JOYSTICK RIGHT PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING (9) PILOT PIPING (10) PILOT PIPING (11) PILOT PIPING (12) BRAKE PIPING (1) BRAKE PIPING (2) STEERING PIPING STEERING WHEEL ASSY STEERING COLUMN ASSY COLUMN ASSY CONTROL STAND-L.H. CONTROL STAND-R.H. SEAT AND ELECTRIC BOX SEAT MOUNTING SEAT DUCT COVER ASSY HEATER COVER ASSY CABIN MOUNT ASSY CABIN ASSY CABIN (1) CABIN (2) CABIN (3) CABIN (4) CABIN (5) SUPPORT SUPPORT-CONDENSER COVER (1)-L.H. COVER (2)-R.H. COVER (3)-TOP COVER (4)-BATTERY COVER (5)-ENGINE BAFFLE ASSY (1) BAFFLE ASSY (2) ACOUSTIC FOAM UNDER COVER LUBRICATOR PIPING ELECTRIC BOX ASSY ELECTRIC BOX ASSY-ELECTRIC PARTS ELECTRIC PARTS (1)-GUAGE AND SWITCH PANEL ELECTRIC PARTS (2)-STAND R.H. ELECTRIC PARTS (3)-STAND L.H. ELECTRIC PARTS (4)-CABIN ELECTRIC PARTS (5)-BATTERY ELECTRIC PARTS (6)-ENGINE ELECTRIC PARTS (7)-RELATED PART ELECTRIC PARTS (8)-LAMP PART ELECTRIC WIRING (1)-BATTERY ELECTRIC WIRING (2)-ENGINE ELECTRIC WIRING (3)-RELATED PART AIRCONDITIONER (1) AIRCONDITIONER (2)-AIRCON HEATER PIPING FUEL FILLER PUMP ASSY RETURN FILTER PRESS SWITCH CHASSIS FRAME-CRADDLE POWER TRAIN CHASSIS COMPONENTS DOZER AND OUTRIGGER PIPING BRAKE PIPING STEER AND CHOCK PIPING PROPELLING PIPING BLADE-REAR BLADE PIPING-REAR BOOM-4.6M ARM -2.5m BUCKET-0.5m3 FRONT PIPING-BOOM 4.6M+ARM 2.5m-NO L.V. LOCK VALVE PIPING-BOOM 4.6M FRONT LUBRICATOR PIPING-BOOM 4.6M MAIN PIPING-ONE AND TWO WAYS (50001~50160) MAIN PIPING-ONE AND TWO WAYS (50161~) PILOT PIPING-BREAKER-MONO AND ARTI. BOOM PIPING-BOOM 4.6M (ONE WAY) ARM PIPING-ARM 2.5M (ONE WAY) MAIN PUMP REGULATOR-FRONT REGULATOR-REAR PTO ASSY GEAR PUMP GEAR PUMP (2 PORT) SWING MOTOR SWING REDUCTION GEAR TRAVEL MOTOR PISTON MOTOR-TRAVEL MOTOR ROTARY GROUP-TRAVEL MOTOR REGULATOR-TRAVEL MOTOR CONTROL PARTS-TRAVEL MOTOR COUNTER BALANCE VALVE-TRAVEL MOTOR CONTROL VALVE CONTROL VALVE-ARTI.BOOM STEERING VALVE PILOT AND T/M SUPPLY VALVE PILOT AND T/M SUPPLY VALVE-DOZER AND OUTRIGGER PILOT CHECK VALVE-OUTRIGGER CYL. REMOTE CONTROL VALVE REMOTE CONTROL VALVE-3 SWITCH REMOTE CONTROL VALVE-DOZER BRAKE SUPPLY VALVE FOOT BRAKE VALVE BREAKER PACKAGE VALVE PEDAL VALVE-ARTI.BOOM SOLENOID VALVE CENTER JOINT CENTER JOINT BOOM CYLINDER-L.H. BOOM CYLINDER-R.H. ARM CYLINDER BUCKET CYLINDER CHOCKING CYLINDER (50001~50030) CHOCKING CYLINDER-L.H. (50031-) CHOCKING CYLINDER-R.H. (50031-) OUTRIGGER CYLINDER-FRONT OUTRIGGER CYLINDER-REAR (50030~) BOOM CYLINDER-L.H-BOOM 4.6M BOOM CYLINDER-R.H-BOOM 4.6M ARM CYLINDER-ARM 2.5M 3.0M BOOM CYLINDER (L.H)-LOCK VALVE BOOM CYLINDER (R.H)-LOCK VALVE ARM CYLINDER-LOCK VALVE BOOM CYLINDER (L.H.)-LOCK VALVE-BOOM 4.6M BOOM CYLINDER (R.H.)-LOCK VALVE-BOOM 4.6M ARM CYLINDER -LOCK VALVE-BOOM 4.6M BOOM CYLINDER (L.H.)-L/V FOR-ARTI.BOOM BOOM CYLINDER (R.H.)-L/V FOR-ARTI.BOOM ARTI.BOOM CYLINDER-LOCK VALVE DIFFERENTIAL HOUSING-FRONT AXLE DIFFERENTIAL-FRONT AXLE PLANET GEAR-FRONT AXLE BRAKE-FRONT AXLE STEERING CYLINDER-FRONT AXLE SUPPORT SYSTEM-FRONT AXLE DIFFERENTIAL HOUSING-REAR AXLE DIFFERENTIAL-REAR AXLE PLANET GEAR-REAR AXLE BRAKE-REAR AXLE PROPELLING HOUSING-TRANSMISSION INPUT SHAFT-TRANSMISSION HOUSING-TRANSMISSION OIL PIPE-TRANSMISSION COUPLING-TRANSMISSION M-DISC BRAKE-TRANSMISSION PLANETARY DRIVE-TRANSMISSION DISCONNECTION DEVICE-TRANSMISSION SPUR GEAR DRIVE-TRANSMISSION GEAR SHIFT SENSOR-TRANSMISSION OUTPUT SHAFT-TRANSMISSION OPTION VALVE SPARE PARTS DOUBLE FUEL FILTER SUN VISOR ASSY SUN ROOF ASSY NOISE FILTER ASSY-EUROPE 2-CABIN LAMP ASSY-FROM KOREA 6-LAMP AND BEACON TELESCOPIC-SCANDINAVIA ROTATING BEACON-FROM KOREA ALTERNATOR-80AMP OVERLOAD WARNING ASSY CABIN LOW GUARD JOYSTICK VALVE ASSY 3-SWITCH TROPICAL COVER-NOT IN EU COUNTER WEIGHT-ADDITIONAL COUNTER WEIGHT-ARTI-EXTRA TRACK-CLAMSHELL POWER TRAIN (10.0 TIRE) AND SMALL TILT ANGLE POWER TRAIN AND SMALL TILT ANGLE (SINGLE) OUTRIGGER ASSY-FRONT OUTRIGGER ASSY-REAR FRONT OUTRIGGER PIPING REAR OUTRIGGER PIPING FRONT OUTRIGGER COMPONENTS BOOM-4.3m ARM-1.9m ARM-2.1m ARM-2.25m ARM-3.0m BUCKET-0.25m3 BUCKET-0.35m3 BUCKET-0.45m3 BUCKET-0.55m3-OLD VERSION BUCKET-0.55m3-NEW VERSION BUCKET-0.65m3 BUCKET-0.38m3 (30")-SIDE PIN-HD BUCKET-0.38m3 (30")-VERTICAL PIN-HD BUCKET-0.44m3 (33")-SIDE PIN-HD BUCKET-0.44m3 (33")-VERTICAL PIN-HD BUCKET-0.48m3 (36")-SIDE PIN-HD BUCKET-0.48m3 (36")-VERTICAL FRONT PIPING-BOOM 4.3M+ARM 1.9M-NO L.V. FRONT PIPING-STD BOOM 4.3M+ARM 2.1M-NO L.V. FRONT PIPING-BOOM 4.3M+ARM 2.25M-NO L.V. FRONT PIPING-BOOM 4.3M+ARM 2.5M-NO L.V. FRONT PIPING-BOOM 4.3M+ARM 3.0M-NO L.V. FRONT PIPING-BOOM 4.6M+ARM 2.1M-NO L.V. FRONT PIPING-BOOM 4.6M+ARM 2.25M-NO L.V. FRONT PIPING-BOOM 4.6M+ARM 3.0M-NO L.V. FRONT LUBRICATOR-BOOM 4.3M BOOM PIPING-BOOM 4.3M (ONE WAY) ARM PIPING-ARM 1.9M (ONE WAY) ARM PIPING-ARM 2.1M (ONE WAY) ARM PIPING-ARM 2.25M (ONE WAY) ARM PIPING-ARM 3.0M (ONE WAY) NAME PLATE-ONE AND TWO WAY LOCK VALVE PIPING-BOOM 4.3M MAIN PIPING-ROTATION AND TILTING (PRO/ERO) - MONO (50001-50120) PILOT PIPING-ROTATION AND TILTING (PRO) - MONO (50001-50120) MAIN AND PILOT PIPING-ROTATION AND TILTING (PERO) - MONO (50121~) MAIN AND PILOT PIPING-ROTATION AND TILTING (PERO) - MONO (50121~) FLOOR ASSY-ROTAT AND TILT AND ARTI.(SINGLE) (50001-50120) FLOOR ASSY-TILT AND ARTI.BOOM (DOUBLE) (50001-50120) BOOM PIPING-4.3M ROTATING AND TILTING BOOM PIPING-4.6M ROTATING AND TILTING ARM PIPING-2.1M ROTATING AND TILTING ARM PIPING-2.5M ROTATING AND TILTING ARM PIPING-3.0M ROTATING AND TILTING PILOT PIPING-ROTATION AND TILTING (50001~50120) PILOT PIPING-P3C (50001~50120) CLAMSHELL PIPING-ARM 1.9M - FRONT SYSTEM CLAMSHELL PIPING-ARM 2.1M - FRONT SYSTEM CLAMSHELL PIPING-ARM 2.25M - FRONT SYSTEM CLAMSHELL PIPING-ARM 2.5M - FRONT SYSTEM CLAMSHELL PIPING-ARM 3.0M - FRONT SYSTEM ARTI. BOOM ASSY MAIN PIPING-ARTI.BOOM PILOT PIPING-ARTI.BOOM FRONT LUBRICATION PIPING-ARTI.BOOM ARM PIPING-ARM 2.1M (ARTI.BOOM) ARM PIPING-ARM 2.5M (ARTI.BOOM) LOCK VALVE PIPING-ARTI.BOOM-2.1M BATTERY STAY AND MIRROR-ADDITION MAIN PIPING-ARTI. BOOM-ONE AND TWO WAYS (50001~50160) MAIN PIPING-ARTI. BOOM-ONE AND TWO WAYS (50161~) FRONT PIPING-ARTI. BOOM-1 WAY CHASSIS FRAME-BOLT-ON. CRADLE AND REMOTE OPTION-GERMAN-STREET REAR RELF. BRACKET ARM LAMP-HOMOLOGATION ARM-2.1M-HOMOLOGATION (LAMP BRACKET) MAIN PIPING-ROTATION AND TILTING (PRO/ERO) - ARTI. BOOM (50001~50120) PILOT PIPING -ROTATION AND TILTING (PRO) - ARTI. (50001~50120) MAIN AND PILOT PIPING-ROTATION AND TILTING (PERO) - ARTI. (50121-) MAIN AND PILOT PIPING-ROTATION AND TILTING (PERO) - ARTI. (50121-) BOOM PIPING-ROTATION AND TILTING-ARTI.(UP3.5M) JOYSTICK AND PILOT-ERO (50001~50120) JOYSTICK-E3C (50001~50120) MAIN PIPING-P3C-MONO (50001~50120) PILOT PIPING (1)-P3C-MONO/ARTI (50001~50120) PILOT PIPING (2)-P3C-MONO/ARTI (50001~50120) MAIN PIPING-P3C-ARTI. (50001~50120) MAIN PIPING-PE3C-MONO (50121~) PILOT PIPING-PE3C (1)-MONO AND ARTI (50121~) PILOT PIPING-PE3C (2)-MONO AND ARTI (50121~) BOOM PIPING-BOOM 4.3m-PE3C (50121~) BOOM PIPING-BOOM 4.6m-PE3C (50121~) MAIN PIPING-P3C-ARTI. (50121~) FRONT PIPING-ARTI.-PE3C (50121~)

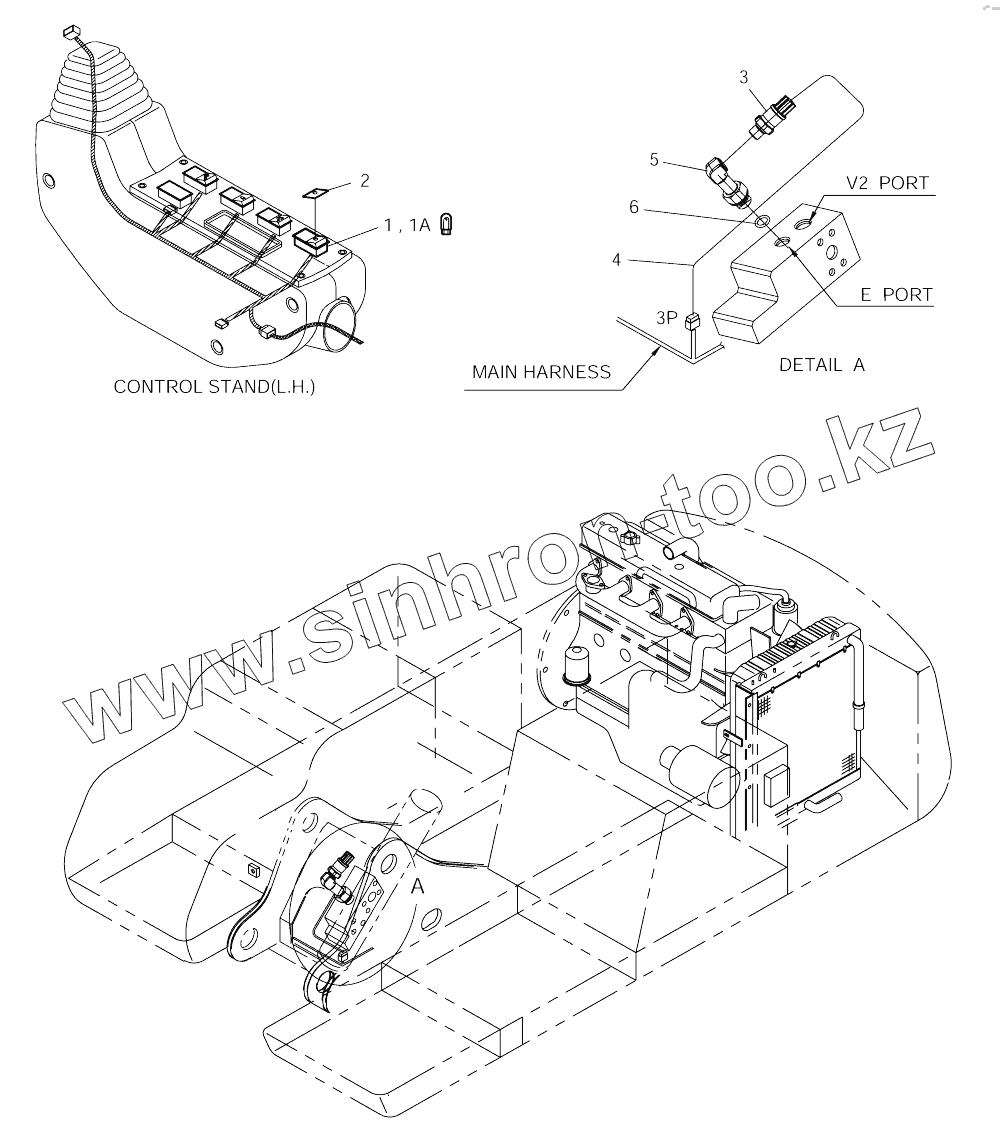

500-00264

1

1A

2

3

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
500-00264	500-00264		OVERLOAD WARNING DEVICE
1	2549-9098		SWITCH;OVERLOAD WARNING
1A	K9000353		LAMP;PILOT
2	2190-2036D25		INSERT;OVERLOAD WARNING
3	2547-9045		SENSOR;PRESSURE
4	530-00256		HARNESS;OVERLOAD WARNING
5	DS2308022		ELBOW
6	S8000121		O-RING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
