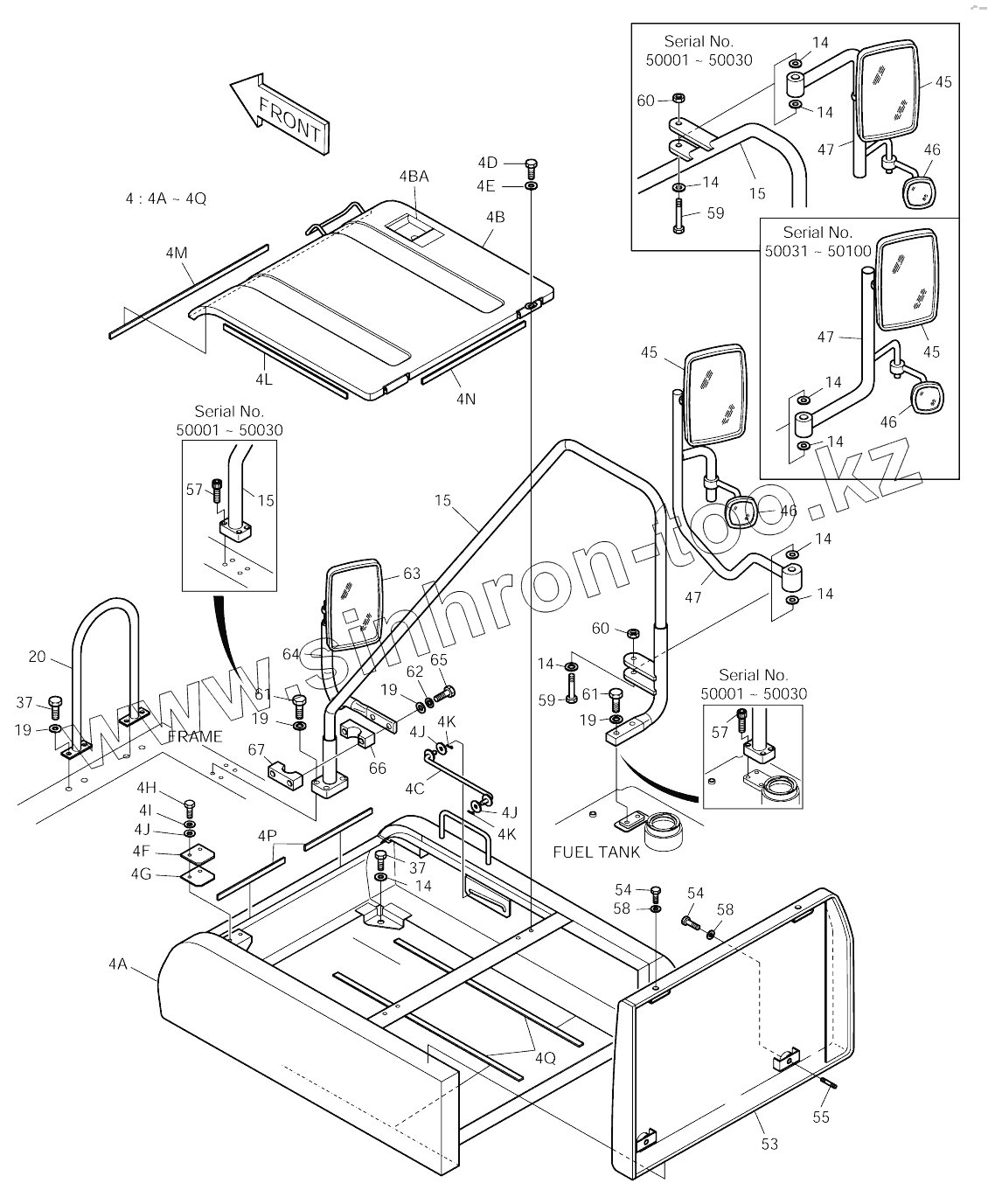

Каталог запасных частей к технике: Doosan SOLAR 140W-V & S160W-V. COVER (4)-BATTERY
4A
4B
4BA
4C
4D
4E
4F
4G
4H
4I
4J
4J
4J
4K
4K
4L
4M
4N
4P
4Q
14
14
14
14
14
14
14
14
15
15
15
15
15
15
15
15
19
19
19
19
19
20
37
37
45
45
45
45
45
45
45
45
45
46
46
46
47
47
47
47
47
47
47
47
47
53
54
54
55
57
57
58
58
59
59
60
60
61
61
62
63
64
65
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 621-02502 | 621-02502 | Cover assy | |
| 4 | 621-02490A | Battery cover assy | |
| 4 | 621-02490B | Battery cover assy | |
| 4 | 621-02490C | Battery cover assy | |
| 4A | 621-02489A | Cover, battery | |
| 4B | 2621-3558B | Cover | |
| 4B | 2621-3558C | Cover | |
| 4B | 2621-3558E | Cover | |
| 4BA | 2125-9054 | Lock | |
| 4BA | 125-00085 | LOCK | |
| 4BA | K1006422 | LOCK | |
| 4C | 2145-1243 | STAY | |
| 4D | S0512053 | BOLT M10X1.5X25 | |
| 4E | S5010613 | WASHER;PLAIN | |
| 4F | 2621-3003B | PLATE | |
| 4G | 2114-1727B | Shim | |
| 4H | S0555753 | BOLT M8X1.25X25 | |
| 4I | S5010513 | WASHER;PLAIN M8 | |
| 4J | 2114-1058D29 | WASHER | |
| 4K | 2705-9002 | PIN;LOCK | |
| 4L | BUSHING | Bushing, rubber | |
| 4M | BUSHING | Bushing, rubber | |
| 4N | BUSHING | Bushing, rubber | |
| 4P | BUSHING | Bushing, rubber | |
| 4Q | BUSHING | Bushing, rubber | |
| 14 | 2114-1058D30 | WASHER;PLAIN | |
| 15 | 145-00075A | Stay | |
| 15 | 145-00113A | Stay | |
| 19 | S5010713 | WASHER;PLAIN | |
| 20 | 2145-1168 | Stay | |
| 37 | S0515253 | BOLT M12X1.75X30 | |
| 45 | 9903-9001 | Mirror, main | |
| 45 | 903-00052 | MIRROR;MAIN | |
| 45 | 903-00068 | MIRROR;MAIN | |
| 46 | 2903-6005 | Mirror, under | |
| 47 | 145-00076 | Stay | |
| 47 | 145-00095 | Stay | |
| 47 | K1002991B | Stay | |
| 53 | 621-01927A | Cover, fuel tank | |
| 54 | S0511853 | BOLT M10X1.5X20 | |
| 55 | 120-00279 | Bolt, stud | |
| 57 | S2212466 | BOLT;SOCKET M10X1.5X40 | |
| 58 | S5010613 | WASHER;PLAIN | |
| 59 | S0561553 | BOLT M12X1.75X90 | |
| 60 | S4012733 | NUT M12 | |
| 61 | S0560653 | Bolt | |
| 62 | S5102703 | WASHER;SPRING M10 | |
| 63 | 903-00065 | Mirror, side | |
| 63 | 903-00068 | MIRROR;MAIN | |
| 64 | 145-00132 | Stay | |
| 64 | 145-00132A | Stay | |
| 65 | S0561253 | BOLT M12X1.75X75 | |
| 66 | 124-00216 | CLAMP | |
| 67 | 124-00217 | CLAMP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
