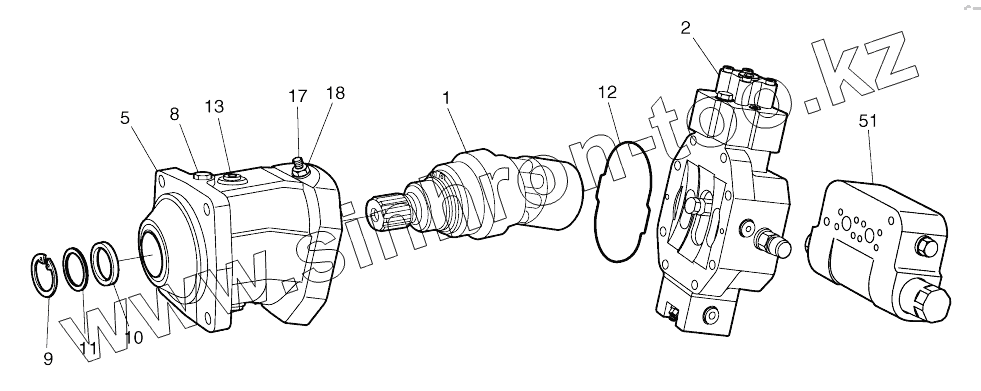

K1025186
1
2
5
8
9
10
11
12
13
17
18
51
Позиция на иллюстрации
Заводской номер детали
Название детали
K1025186
K1025186
Travel motor
1
K9001771
Rotary group
2
K9005675
Control group
5
K9001773
Housing, pump
8
2.120-00816
Plug
9
S6510800
Ring, retaining
10
2.115-00327
Seal, oil
11
K9001774
Shim
12
2180-1216D150
O-ring
13
2.120-00816
Plug
17
2.123-00297
Bolt, stud
18
2.121-00263
Nut, lock
51
K9001775
Valve, counter balance
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
