Позиция на иллюстрации
Заводской номер детали
Название детали
400-00885
400-00885

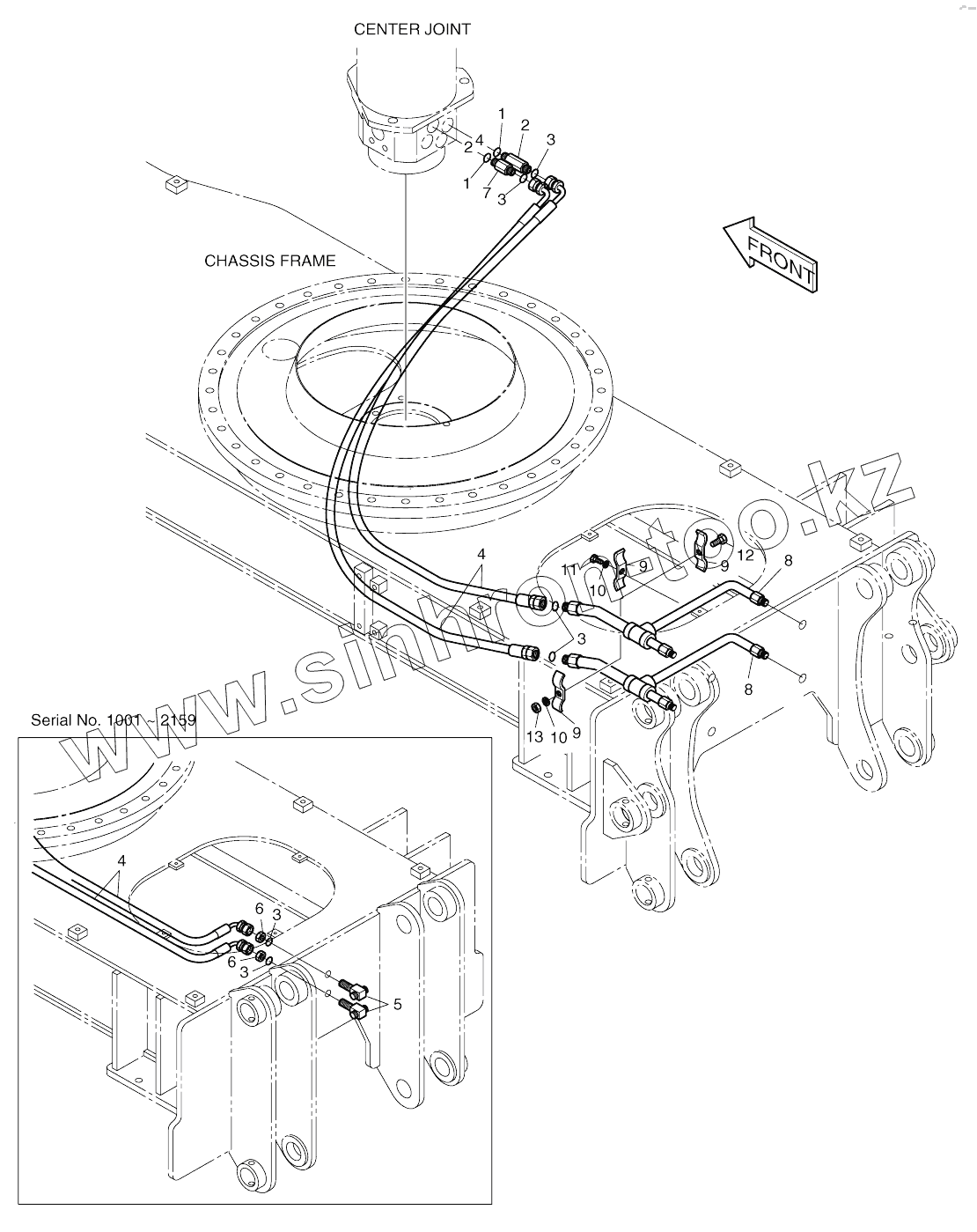

Rear dozer only piping
1
S8000181
O-RING
2
2181-4133D46
ADAPTER
3
S8030081
O-RING
4
DS2023134
Hose
4
2184-1197D100
Hose
5
DS2416007
Tee
6
121-00010D5
Nut
7
2181-4133D37
ADAPTER
8
2140-1520A
Pipe
9
2124-1340D9
CLAMP;PIPE
10
S5102703
WASHER;SPRING M10
11
S0560553
BOLT M12X1.75X40
12
S0560653
Bolt
13
S4012733
NUT M12
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
