1
2
3
4
5
6
7A
7B
7C
7D
7E
7E
7F
7G
7G
8
10
11
13
17
18
Позиция на иллюстрации
Заводской номер детали
Название детали

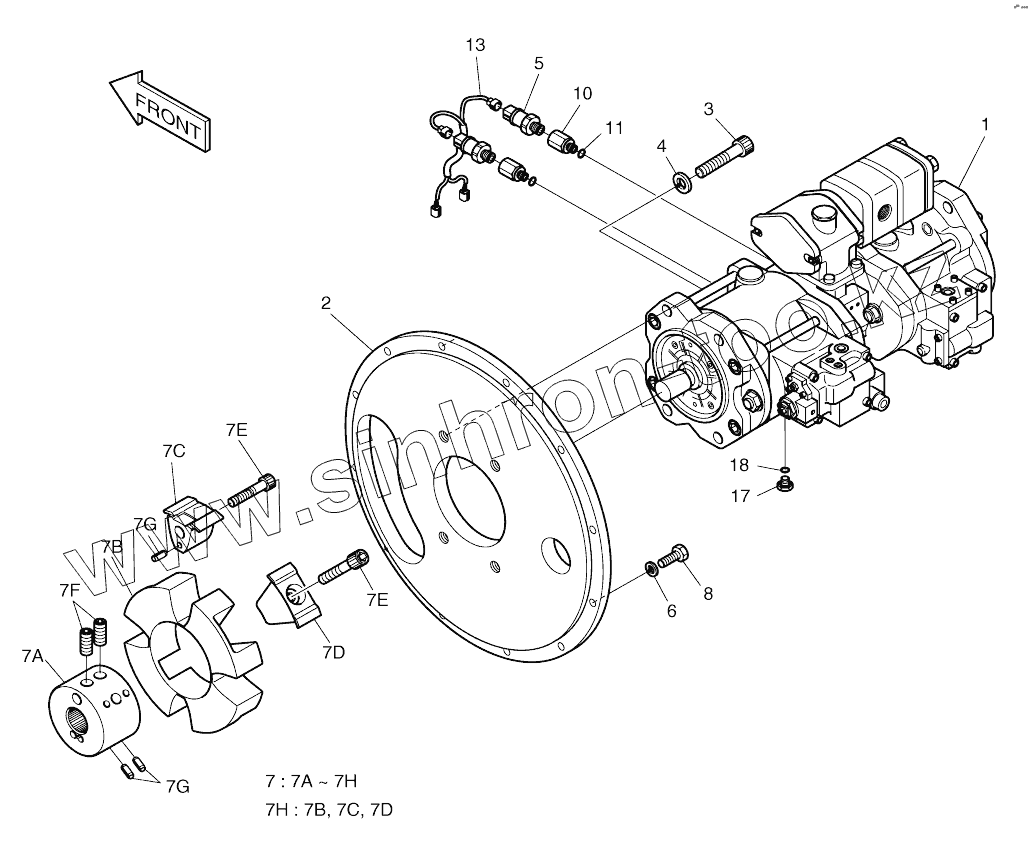

401-00396
401-00396
Pump installation
1
401-00161A
Main pump
2
2229-1074
Cover
3
S2221666
Bolt,socket
4
S5110903
WASHER;SPRING
5
2547-9045
SENSOR;PRESSURE
6
S5102603
WASHER;SPRING M10
7
2414-9042
Coupling
7A
HUB
Hub
7B
2474-7009
ELEMENT
7C
INSERT
Insert
7D
INSERT
Insert
7E
K9000422
SOCKET BOLT SET(8EA)
7F
BOLT
Bolt, clamping
7G
PIN, SPRING
Pin, spring
7H
2474-7009K
ELEMENT KIT
8
S0558153
BOLT M10X1.5X30
10
2181-2439A
REDUCER
11
S8000111
O-RING
13
530-00253
Harness, joint
17
2181-1890D3
Plug
18
S8000141
O-RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
