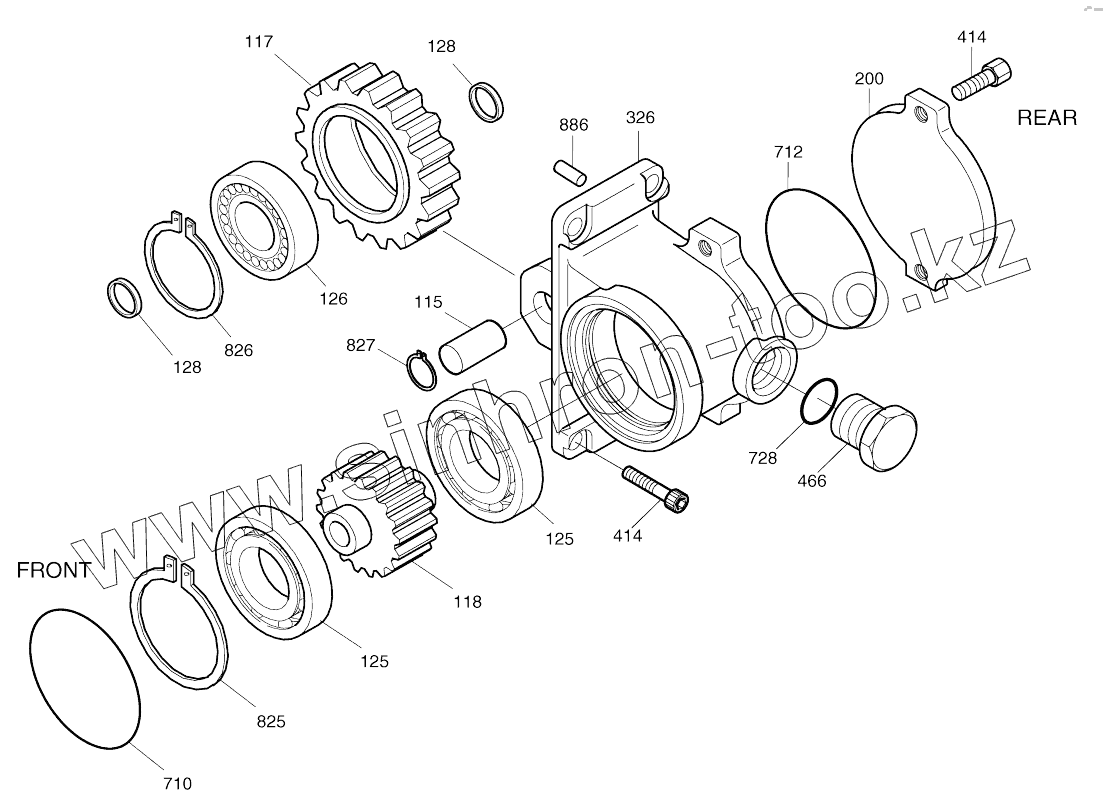

Каталог запасных частей к технике: Doosan SOLAR 140W-V. PTO ASSY
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
DL220 (2010)
DX140W (2017)
DX225LC (2009)
DX225LCA (2012)
S225LC-V (2009)
S340LC-V (2009)
S500LC-V (2007)
SOLAR 130W-V(1) (2017)
SOLAR 130W-V(2) (2017)
SOLAR 140W-V (2017)
SOLAR 140W-V & S160W-V (2017)
SOLAR 160W-V (2017)
SOLAR 170W-V (2017)
SOLAR 180W-V (2017)
SOLAR 210W-V (2017)
SOLAR 255LC-V (DI EXP) (2017)
SOLAR 420LC-V (2017)
Мини-погрузчик 430 Plus (2010)
Мини-погрузчик 440 Plus (2010)
Мини-погрузчик 450 Plus (2010)
Мини-погрузчик 450 Plus (Tier3) (2010)
Мини-погрузчик 460 Plus (2010)
Мини-погрузчик 460 Plus (Tier3) (2010)
Мини-погрузчик 470 Plus (2010)
Экскаватор SOLAR 140LC-V (2010)
Экскаватор SOLAR 175LC-V (2010)
Схема
>
Не выбрано
CYLINDER BLOCK
TIMING GEAR CASE
FLYWHEEL HOUSING
CRANK SHAFT
CYLINDER HEAD
VALVE MECHANISM
OIL PUMP
OIL FILTER
OIL COOLER
OIL PAN
THERMOSTAT
WATER PUMP AND COOLING FAN
INTAKE AND EXHAUST MANIFOLD
TURBO CHARGER AND OIL PIPE
FUEL SYSTEM
FUEL FILTER
ALTERNATOR MOUNTING
STARTER
OVER HAUL GASKET KIT - TOP
OVER HAUL GASKET KIT - ALL
MAIN FRAME
ENGINE MOUNTING
RADIATOR AND OIL COOLER
RESERVE TANK
MUFFLER
AIR CLEANER ASSY
AIR CLEANER
PUMP INSTALLATION
PUMP INSTALLATION - KOREA
FUEL TANK
OIL TANK
SWING DEVICE
SWING DEVICE - KOREA
ENGINE CONTROL ASSY
LEVER ASSY - ENGINE SUB
OIL COOLER PIPING (1)
OIL COOLER PIPING (2)
OIL COOLER PIPING (3)
MAIN PIPING (1) - PUMP
MAIN PIPING (2) - SWING
MAIN PIPING (3) - TRAVEL
MAIN PIPING (4) - BOOM
MAIN PIPING (5) - ARM. BUCKET
PILOT PIPING (1)
PILOT PIPING (2)
PILOT PIPING (3)
PILOT PIPING (4)
PILOT PIPING (5)
PILOT PIPING (6)
PILOT PIPING (7)
PILOT PIPING (8)
PILOT PIPING (9) (1001 - 3750)
PILOT PIPING (9) (3751 -)
PILOT PIPING (10)
PILOT PIPING (11)
PILOT PIPING (12)
BRAKE PIPING (1)
BRAKE PIPING (2)
STEERING PIPING
STEERING WHEEL ASSY
STEERING COLUMN ASSY
COLUMN ASSY
CONTROL STAND - L.H.
CONTROL STAND - R.H.
SEAT AND ELECTRIC BOX
SEAT MOUNTING
SEAT
SEAT MOUNTING - EXCEPT EUROPE AND USA (1001 - 1006)
SEAT - EXCEPT EUROPE AND U.S.A (1001 - 1006)
DUCT COVER ASSY
HEATER COVER ASSY
CABIN MOUNT ASSY
CABIN ASSY
CABIN (1)
CABIN (2)
CABIN (3)
CABIN (4)
CABIN (5)
SUPPORT
SUPPORT - CONDENSER
COVER (1)
COVER (2)
COVER (3)
COVER (4)
COVER (5)
BAFFLE ASSY (1)
BAFFLE ASSY (2)
ACOUSTIC FOAM
UNDER COVER
LUBRICATOR PIPING
ELECTRIC BOX ASS`Y
ELECTRIC BOX ASSY - ELECTRIC PARTS
ELECTRIC PARTS (1) - GUAGE AND SWITCH PANEL
ELECTRIC PARTS (2) - STAND R.H.
ELECTRIC PARTS (3) - STAND L.H.
ELECTRIC PARTS (4) - CABIN
ELECTRIC PARTS (5) - BATTERY
ELECTRIC PARTS (6) - ENGINE
ELECTRIC PARTS (7) - RELATED PART
ELECTRIC PARTS (8) - LAMP PART
ELECTRIC WIRING (1) - BATTERY
ELECTRIC WIRING (2) - ENGINE
ELECTRIC WIRING (3) - RELATED PART
AIRCONDITIONER (1)
AIRCONDITIONER (2) - AIRCON UNIT
HEATER PIPING
CHASSIS FRAME - CRADDLE
POWER TRAIN
CHASSIS COMPONENTS
REAR DOZER ONLY PIPING
BRAKE PIPING
STEER AND CHOCK PIPING
PROPELLING PIPING (1001 - 3750)
PROPELLING PIPING (3751 -)
BLADE - FRONT AND REAR (1001 - 2459)
BLADE - REAR (2160 -)
BLADE PIPING - FRONT AND REAR (1001 - 2159)
BLADE PIPING - REAR (2160 -)
BOOM - 4.3M
ARM - 2.1M
BUCKET - 0.5
FRONT PIPING
FRONT LUBRICATOR
MAIN PUMP
REGULATOR - FRONT
REGULATOR - REAR
PTO ASSY
GEAR PUMP
GEAR PUMP (2 PORT)
SWING MOTOR
SWING REDUCTION GEAR
TRAVEL MOTOR (1001 - 3750)
TRAVEL MOTOR (3751 -)
PISTON MOTOR - TRAVEL MOTOR (1001 - 3750)
ROTARY GROUP - TRAVEL MOTOR (1001 - 3750)
TRAVEL MOTOR - ROTARY GROUP (3751 -)
REGULATOR - TRAVEL MOTOR (1001 - 3750)
TRAVEL MOTOR - CONTROL (3751 -)
CONTROL PARTS - TRAVEL MOTOR (1001 - 3750)
TRAVEL MOTOR - CONTROL PART (3751 -)
TRAVEL MOTOR - STROKE LIMITER (3751 -)
TRAVEL MOTOR - COUNTER BALANCE VALVE (1001 - 3750)
TRAVEL MOTOR - COUNTER BALANCE VALVE (3751 -)
CONTROL VALVE
CONTROL VALVE - ARTI.BOOM (1001 - 3104)
CONTROL VALVE - ARTI.BOOM (3105 -)
STEERING VALVE
PILOT AND T/M SUPPLY VALVE
PILOT AND T/M SUPPLY VALVE - DOZER AND OUTRIGGER
PILOT CHECK VALVE - OUTRIGGER CYL.
REMOTE CONTROL VALVE (1001 - 3530)
REMOTE CONTROL VALVE (3531 -)
REMOTE CONTROL VALVE - 3 SWITCH
REMOTE CONTROL VALVE - DOZER
BRAKE SUPPLY VALVE
FOOT BRAKE VALVE
BREAKER PACKAGE VALVE
PEDAL VALVE - ARTI.BOOM
SOLENOID VALVE
CENTER JOINT
CENTER JOINT
BOOM CYLINDER (L.H.)
BOOM CYLINDER (R.H.)
ARM CYLINDER
BUCKET CYLINDER
DOZER CYLINDER (L.H.)
DOZER CYLINDER (R.H.)
CHOCKING CYLINDER (1001 - 1959)
CHOCKING CYLINDER - L.H (1960 -)
CHOCKING CYLINDER - R.H (1960 -)
OUTRIGGER CYLINDER - FRONT
OUTRIGGER CYLINDER - REAR (2750 -)
BOOM CYLINDER - L.H - BOOM 4.6M
BOOM CYLINDER - R.H - BOOM 4.6M
ARM CYLINDER - ARM 2.5M 3.0M
BOOM CYLINDER (L.H) - LOCK VALVE
BOOM CYLINDER (R.H) - LOCK VALVE
ARM CYLINDER - LOCK VALVE
BOOM CYL.(L.H) - LOCK VALVE BOOM 4.6M
BOOM CYL.(R.H) - LOCK VALVE BOOM 4.6M
ARM CYLINDER - LOCK VALVE BOOM 4.6M
BOOM CYLINDER (L.H) - ARTI.BOOM
BOOM CYLINDER (R.H) - ARTI.BOOM
ARTI.BOOM CYLINDER
ARM CYLINDER - ARTI.BOOM
BOOM CYLINDER(L.H) - L/V FOR ARTI.BOOM
BOOM CYLINDER(R.H) - L/V FOR ARTI.BOOM
ARTI.BOOM CYLINDER - LOCK
DIFFERENTIAL HOUSING - FRONT AXLE
DIFFERENTIAL - FRONT AXLE
PLANET GEAR - FRONT AXLE
BRAKE - FRONT AXLE
STEERING CYLINDER - FRONT AXLE
SUPPORT SYSTEM - FRONT AXLE
DIFFERENTIAL HOUSING - REAR AXLE
DIFFERENTIAL - REAR AXLE
PLANET GEAR - REAR AXLE
BRAKE - REAR AXLE
PROPELLING HOUSING - TRANSMISSION
INPUT SHAFT - TRANSMISSION
HOUSING - TRANSMISSION
OIL PIPE - TRANSMISSION
COUPLING - TRANSMISSION
M - DISC BRAKE - TRANSMISSION
PLANETARY DRIVE - TRANSMISSION
DISCONNECTION DEVICE - TRANSMISSION
SPUR GEAR DRIVE - TRANSMISSION
GEAR SHIFT SENSOR - TRANSMISSION
OUTPUT SHAFT - TRANSMISSION
OPTION VALVE
SPARE PARTS
FUEL FILLER PUMP ASSY
DOUBLE FUEL FILTER
SUN VISOR ASSY
SUN ROOF ASSY
NOISE FILTER ASSY - EUROPE
2 - CABIN LAMP ASSY
6 - LAMP AND BEACON (TELESCOPIC)
BEACON
RETURN FILTER PRESS SWITCH
ALTERNATOR
OVERLOAD WARNING ASSY
CABIN LOW GUARD
JOYSTICK VALVE ASSY 3 - SWITCH
TROPICAL COVER
COUNTER WEIGHT
CHASSIS FRAME (OPTION)
POWER TRAIN - 10.0 TIRE
POWER TRAIN - SINGLE TIRE
OUTRIGGER ASSY - FRONT
OUTRIGGER ASSY - REAR (2520 -)
DOZER AND OUTRIGGER PIPING
FRONT OUTRIGGER PIPING
REAR OUTRIGGER PIPING
FRONT OUTRIGGER COMPONENTS
BOOM - 4.6M
ARM - 1.9M
ARM - 2.25M
ARM - 2.5M
ARM - 3.0M
BUCKET - 0.25m3
BUCKET - 0.35m3
BUCKET - 0.45m3
BUCKET - 0.55m3
BUCKET - 0.55m3 - FOR EUROPE (1461 -)
BUCKET - 0.65m3
BUCKET - 0.38m3 (30") - SIDE PIN
BUCKET - 0.38m3 (30") - VERTICAL PIN
BUCKET - 0.44m3 (33") - SIDE PIN
BUCKET - 0.44m3 (33") - VERTICAL PIN
BUCKET - 0.48m3 (36") - SIDE PIN
BUCKET - 0.48m3 (36") - VERTICAL PIN
FRONT PIPING - BOOM 4,3M + ARM 1,9M
FRONT PIPING - BOOM 4,3M + ARM 2,25M
FRONT PIPING - BOOM 4,3M + ARM 2,5M
FRONT PIPING - BOOM 4,3M + ARM 3.0M
FRONT PIPING - BOOM 4,6M + ARM 2.1M
FRONT PIPING - BOOM 4,6M + ARM 2.25M
FRONT PIPING - BOOM 4,6M + ARM 2.5M
FRONT PIPING - BOOM 4,6M + ARM 3.0M
FRONT LUBRICATOR PIPING - BOOM 4,6M
MAIN PIPING - BREAKER (ONE AND TWO WAY)
PILOT PIPING - BREAKER
BOOM PIPING - BOOM 4.3M (ONE WAY)
BOOM PIPING - BOOM 4.6M (ONE WAY)
ARM PIPING - ARM 1.9M (ONE WAY)
ARM PIPING - ARM 2.1M (ONE WAY)
ARM PIPING - ARM 2.25M (ONE WAY)
ARM PIPING - ARM 2.5M (ONE WAY)
ARM PIPING - ARM 3.0M (ONE WAY)
NAME PLATE - ONE AND TWO WAY
LOCK VALVE PIPING - BOOM 4.3M
LOCK VALVE PIPING - BOOM 4.6M
MAIN PIPING - ROTATION AND TILTING
PILOT PIPING - ROTATION AND TILTING
FLOOR ASSY - ROTATION.TILTING.ARTI (SINGLE)
FLOOR ASSY - TILT AND ARTI.BOOM (DOUBLE)
BOOM PIPING - 4.3M ROTATING AND TILTING
BOOM PIPING - 4.6M ROTATING AND TILTING
ARM PIPING - 2.1M ROTATING AND TILTING
ARM PIPING - 2.5M ROTATING AND TILTING
ARM PIPING - 3.0M ROTATING AND TILTING
FRONT PIPING (BOOM 4,3M) - KOREA
FRONT PIPING (BOOM 4,6M) - KOREA
PILOT PIPING - P3C AND TILTING
PILOT PIPING - P3C
ARTI. BOOM ASSY
MAIN PIPING - ARTI.BOOM
PILOT PIPING - ARTI.BOOM
FRONT PIPING - ARTI.BOOM
FRONT LUBRICATION PPING - ARTI.BOOM
ARM PIPING - ARM 2.1M (ARTI.BOOM)
ARM PIPING - ARM 2.5M (ARTI.BOOM)
LOCK VALVE PIPING - ARTI.BOOM
STAY ASSY - ARTI.BOOM
MAIN PIPING - ARTI. BOOM - 2 WAY
FRONT PIPING - ARTI. BOOM - 1 WAY
CHASSIS FRAME - BOLT - ON CRADLE AND REMOTE
OPTION ASSY - GERMAN
REAR COMBI. LAMP - HOMOLOGATION
ARM LAMP - HOMOLOGATION
ARM - 2.1M - HOMOLOGATION
FRONT COMBI LAMP - EUROPE
MAIN PIPING - ROTATING AND TILTING AND ARTI.BOOM
BOOM PIPING - 3.5M ROTATING AND TILTING AND ARTI.BOOM
POWER TRAIN - GERMAN
FLOOR ASSY - MULTI PIPING (2520 -)
PILOT PIPING - ROTATING AND TILTING ARTI.BOOM
CATALYSIS MUFFLER
NOISE KIT - EUROPE
115
117
118
125
125
126
128
128
200
326
414
414
466
710
712
728
825
826
827
886
Позиция на иллюстрации
Заводской номер детали
Название детали
720252
720252
Pto assy
115
137531
Shaft, idle
117
137530
Gear 2
118
137506
Gear 3
125
210210
Bearing, ball
126
233772
Bearing, roller
128
137532
Spacer, bearing
200
137509
Cover
326
137495
Case, gear
414
220849
Bolt, socket
466
108847
Plug, vp
710
201675
O-RING 1BG-85
712
206594
O-RING
728
201721
O-ring
825
202583
Ring, snap
826
211948
Ring, snap
827
204957
Ring, snap
886
113384
Pin
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
