Каталог запасных частей к технике: Doosan SOLAR 140W-V. POWER TRAIN - SINGLE TIRE

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD VALVE MECHANISM OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP AND COOLING FAN INTAKE AND EXHAUST MANIFOLD TURBO CHARGER AND OIL PIPE FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT - TOP OVER HAUL GASKET KIT - ALL MAIN FRAME ENGINE MOUNTING RADIATOR AND OIL COOLER RESERVE TANK MUFFLER AIR CLEANER ASSY AIR CLEANER PUMP INSTALLATION PUMP INSTALLATION - KOREA FUEL TANK OIL TANK SWING DEVICE SWING DEVICE - KOREA ENGINE CONTROL ASSY LEVER ASSY - ENGINE SUB OIL COOLER PIPING (1) OIL COOLER PIPING (2) OIL COOLER PIPING (3) MAIN PIPING (1) - PUMP MAIN PIPING (2) - SWING MAIN PIPING (3) - TRAVEL MAIN PIPING (4) - BOOM MAIN PIPING (5) - ARM. BUCKET PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING (9) (1001 - 3750) PILOT PIPING (9) (3751 -) PILOT PIPING (10) PILOT PIPING (11) PILOT PIPING (12) BRAKE PIPING (1) BRAKE PIPING (2) STEERING PIPING STEERING WHEEL ASSY STEERING COLUMN ASSY COLUMN ASSY CONTROL STAND - L.H. CONTROL STAND - R.H. SEAT AND ELECTRIC BOX SEAT MOUNTING SEAT SEAT MOUNTING - EXCEPT EUROPE AND USA (1001 - 1006) SEAT - EXCEPT EUROPE AND U.S.A (1001 - 1006) DUCT COVER ASSY HEATER COVER ASSY CABIN MOUNT ASSY CABIN ASSY CABIN (1) CABIN (2) CABIN (3) CABIN (4) CABIN (5) SUPPORT SUPPORT - CONDENSER COVER (1) COVER (2) COVER (3) COVER (4) COVER (5) BAFFLE ASSY (1) BAFFLE ASSY (2) ACOUSTIC FOAM UNDER COVER LUBRICATOR PIPING ELECTRIC BOX ASS`Y ELECTRIC BOX ASSY - ELECTRIC PARTS ELECTRIC PARTS (1) - GUAGE AND SWITCH PANEL ELECTRIC PARTS (2) - STAND R.H. ELECTRIC PARTS (3) - STAND L.H. ELECTRIC PARTS (4) - CABIN ELECTRIC PARTS (5) - BATTERY ELECTRIC PARTS (6) - ENGINE ELECTRIC PARTS (7) - RELATED PART ELECTRIC PARTS (8) - LAMP PART ELECTRIC WIRING (1) - BATTERY ELECTRIC WIRING (2) - ENGINE ELECTRIC WIRING (3) - RELATED PART AIRCONDITIONER (1) AIRCONDITIONER (2) - AIRCON UNIT HEATER PIPING CHASSIS FRAME - CRADDLE POWER TRAIN CHASSIS COMPONENTS REAR DOZER ONLY PIPING BRAKE PIPING STEER AND CHOCK PIPING PROPELLING PIPING (1001 - 3750) PROPELLING PIPING (3751 -) BLADE - FRONT AND REAR (1001 - 2459) BLADE - REAR (2160 -) BLADE PIPING - FRONT AND REAR (1001 - 2159) BLADE PIPING - REAR (2160 -) BOOM - 4.3M ARM - 2.1M BUCKET - 0.5 FRONT PIPING FRONT LUBRICATOR MAIN PUMP REGULATOR - FRONT REGULATOR - REAR PTO ASSY GEAR PUMP GEAR PUMP (2 PORT) SWING MOTOR SWING REDUCTION GEAR TRAVEL MOTOR (1001 - 3750) TRAVEL MOTOR (3751 -) PISTON MOTOR - TRAVEL MOTOR (1001 - 3750) ROTARY GROUP - TRAVEL MOTOR (1001 - 3750) TRAVEL MOTOR - ROTARY GROUP (3751 -) REGULATOR - TRAVEL MOTOR (1001 - 3750) TRAVEL MOTOR - CONTROL (3751 -) CONTROL PARTS - TRAVEL MOTOR (1001 - 3750) TRAVEL MOTOR - CONTROL PART (3751 -) TRAVEL MOTOR - STROKE LIMITER (3751 -) TRAVEL MOTOR - COUNTER BALANCE VALVE (1001 - 3750) TRAVEL MOTOR - COUNTER BALANCE VALVE (3751 -) CONTROL VALVE CONTROL VALVE - ARTI.BOOM (1001 - 3104) CONTROL VALVE - ARTI.BOOM (3105 -) STEERING VALVE PILOT AND T/M SUPPLY VALVE PILOT AND T/M SUPPLY VALVE - DOZER AND OUTRIGGER PILOT CHECK VALVE - OUTRIGGER CYL. REMOTE CONTROL VALVE (1001 - 3530) REMOTE CONTROL VALVE (3531 -) REMOTE CONTROL VALVE - 3 SWITCH REMOTE CONTROL VALVE - DOZER BRAKE SUPPLY VALVE FOOT BRAKE VALVE BREAKER PACKAGE VALVE PEDAL VALVE - ARTI.BOOM SOLENOID VALVE CENTER JOINT CENTER JOINT BOOM CYLINDER (L.H.) BOOM CYLINDER (R.H.) ARM CYLINDER BUCKET CYLINDER DOZER CYLINDER (L.H.) DOZER CYLINDER (R.H.) CHOCKING CYLINDER (1001 - 1959) CHOCKING CYLINDER - L.H (1960 -) CHOCKING CYLINDER - R.H (1960 -) OUTRIGGER CYLINDER - FRONT OUTRIGGER CYLINDER - REAR (2750 -) BOOM CYLINDER - L.H - BOOM 4.6M BOOM CYLINDER - R.H - BOOM 4.6M ARM CYLINDER - ARM 2.5M 3.0M BOOM CYLINDER (L.H) - LOCK VALVE BOOM CYLINDER (R.H) - LOCK VALVE ARM CYLINDER - LOCK VALVE BOOM CYL.(L.H) - LOCK VALVE BOOM 4.6M BOOM CYL.(R.H) - LOCK VALVE BOOM 4.6M ARM CYLINDER - LOCK VALVE BOOM 4.6M BOOM CYLINDER (L.H) - ARTI.BOOM BOOM CYLINDER (R.H) - ARTI.BOOM ARTI.BOOM CYLINDER ARM CYLINDER - ARTI.BOOM BOOM CYLINDER(L.H) - L/V FOR ARTI.BOOM BOOM CYLINDER(R.H) - L/V FOR ARTI.BOOM ARTI.BOOM CYLINDER - LOCK DIFFERENTIAL HOUSING - FRONT AXLE DIFFERENTIAL - FRONT AXLE PLANET GEAR - FRONT AXLE BRAKE - FRONT AXLE STEERING CYLINDER - FRONT AXLE SUPPORT SYSTEM - FRONT AXLE DIFFERENTIAL HOUSING - REAR AXLE DIFFERENTIAL - REAR AXLE PLANET GEAR - REAR AXLE BRAKE - REAR AXLE PROPELLING HOUSING - TRANSMISSION INPUT SHAFT - TRANSMISSION HOUSING - TRANSMISSION OIL PIPE - TRANSMISSION COUPLING - TRANSMISSION M - DISC BRAKE - TRANSMISSION PLANETARY DRIVE - TRANSMISSION DISCONNECTION DEVICE - TRANSMISSION SPUR GEAR DRIVE - TRANSMISSION GEAR SHIFT SENSOR - TRANSMISSION OUTPUT SHAFT - TRANSMISSION OPTION VALVE SPARE PARTS FUEL FILLER PUMP ASSY DOUBLE FUEL FILTER SUN VISOR ASSY SUN ROOF ASSY NOISE FILTER ASSY - EUROPE 2 - CABIN LAMP ASSY 6 - LAMP AND BEACON (TELESCOPIC) BEACON RETURN FILTER PRESS SWITCH ALTERNATOR OVERLOAD WARNING ASSY CABIN LOW GUARD JOYSTICK VALVE ASSY 3 - SWITCH TROPICAL COVER COUNTER WEIGHT CHASSIS FRAME (OPTION) POWER TRAIN - 10.0 TIRE POWER TRAIN - SINGLE TIRE OUTRIGGER ASSY - FRONT OUTRIGGER ASSY - REAR (2520 -) DOZER AND OUTRIGGER PIPING FRONT OUTRIGGER PIPING REAR OUTRIGGER PIPING FRONT OUTRIGGER COMPONENTS BOOM - 4.6M ARM - 1.9M ARM - 2.25M ARM - 2.5M ARM - 3.0M BUCKET - 0.25m3 BUCKET - 0.35m3 BUCKET - 0.45m3 BUCKET - 0.55m3 BUCKET - 0.55m3 - FOR EUROPE (1461 -) BUCKET - 0.65m3 BUCKET - 0.38m3 (30") - SIDE PIN BUCKET - 0.38m3 (30") - VERTICAL PIN BUCKET - 0.44m3 (33") - SIDE PIN BUCKET - 0.44m3 (33") - VERTICAL PIN BUCKET - 0.48m3 (36") - SIDE PIN BUCKET - 0.48m3 (36") - VERTICAL PIN FRONT PIPING - BOOM 4,3M + ARM 1,9M FRONT PIPING - BOOM 4,3M + ARM 2,25M FRONT PIPING - BOOM 4,3M + ARM 2,5M FRONT PIPING - BOOM 4,3M + ARM 3.0M FRONT PIPING - BOOM 4,6M + ARM 2.1M FRONT PIPING - BOOM 4,6M + ARM 2.25M FRONT PIPING - BOOM 4,6M + ARM 2.5M FRONT PIPING - BOOM 4,6M + ARM 3.0M FRONT LUBRICATOR PIPING - BOOM 4,6M MAIN PIPING - BREAKER (ONE AND TWO WAY) PILOT PIPING - BREAKER BOOM PIPING - BOOM 4.3M (ONE WAY) BOOM PIPING - BOOM 4.6M (ONE WAY) ARM PIPING - ARM 1.9M (ONE WAY) ARM PIPING - ARM 2.1M (ONE WAY) ARM PIPING - ARM 2.25M (ONE WAY) ARM PIPING - ARM 2.5M (ONE WAY) ARM PIPING - ARM 3.0M (ONE WAY) NAME PLATE - ONE AND TWO WAY LOCK VALVE PIPING - BOOM 4.3M LOCK VALVE PIPING - BOOM 4.6M MAIN PIPING - ROTATION AND TILTING PILOT PIPING - ROTATION AND TILTING FLOOR ASSY - ROTATION.TILTING.ARTI (SINGLE) FLOOR ASSY - TILT AND ARTI.BOOM (DOUBLE) BOOM PIPING - 4.3M ROTATING AND TILTING BOOM PIPING - 4.6M ROTATING AND TILTING ARM PIPING - 2.1M ROTATING AND TILTING ARM PIPING - 2.5M ROTATING AND TILTING ARM PIPING - 3.0M ROTATING AND TILTING FRONT PIPING (BOOM 4,3M) - KOREA FRONT PIPING (BOOM 4,6M) - KOREA PILOT PIPING - P3C AND TILTING PILOT PIPING - P3C ARTI. BOOM ASSY MAIN PIPING - ARTI.BOOM PILOT PIPING - ARTI.BOOM FRONT PIPING - ARTI.BOOM FRONT LUBRICATION PPING - ARTI.BOOM ARM PIPING - ARM 2.1M (ARTI.BOOM) ARM PIPING - ARM 2.5M (ARTI.BOOM) LOCK VALVE PIPING - ARTI.BOOM STAY ASSY - ARTI.BOOM MAIN PIPING - ARTI. BOOM - 2 WAY FRONT PIPING - ARTI. BOOM - 1 WAY CHASSIS FRAME - BOLT - ON CRADLE AND REMOTE OPTION ASSY - GERMAN REAR COMBI. LAMP - HOMOLOGATION ARM LAMP - HOMOLOGATION ARM - 2.1M - HOMOLOGATION FRONT COMBI LAMP - EUROPE MAIN PIPING - ROTATING AND TILTING AND ARTI.BOOM BOOM PIPING - 3.5M ROTATING AND TILTING AND ARTI.BOOM POWER TRAIN - GERMAN FLOOR ASSY - MULTI PIPING (2520 -) PILOT PIPING - ROTATING AND TILTING ARTI.BOOM CATALYSIS MUFFLER NOISE KIT - EUROPE

200-00023

200-00023

1

1

2

2

4

4

5

5

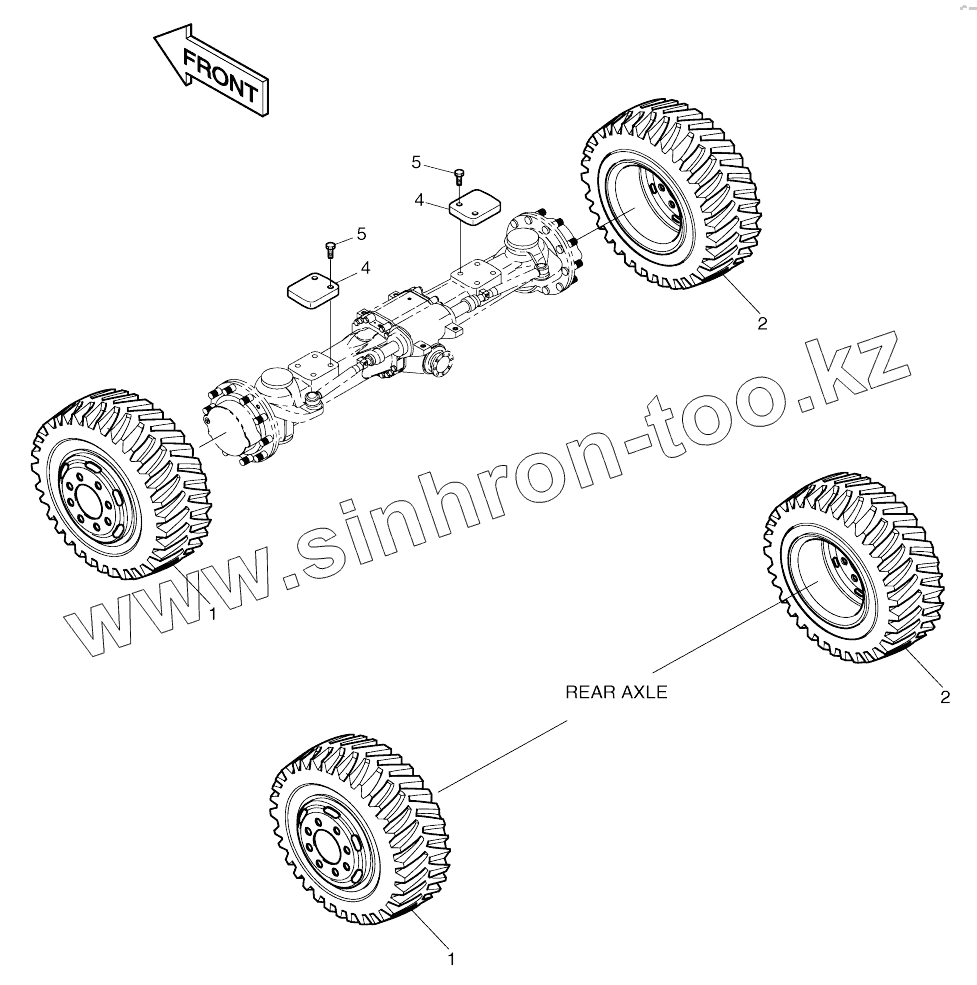

Позиция на иллюстрации	Заводской номер детали		Название детали
200-00023	200-00023		Power train-single tire
1	2276-1015A		Tire
1A	2276-9026		Tire
1B	2278-9012A		Rim
2	2276-1016A		Tire
2A	2276-9026		Tire
2B	2278-9012A		Rim
4	191-02583		Plate
5	S0560953		BOLT M12X1.75X60

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
