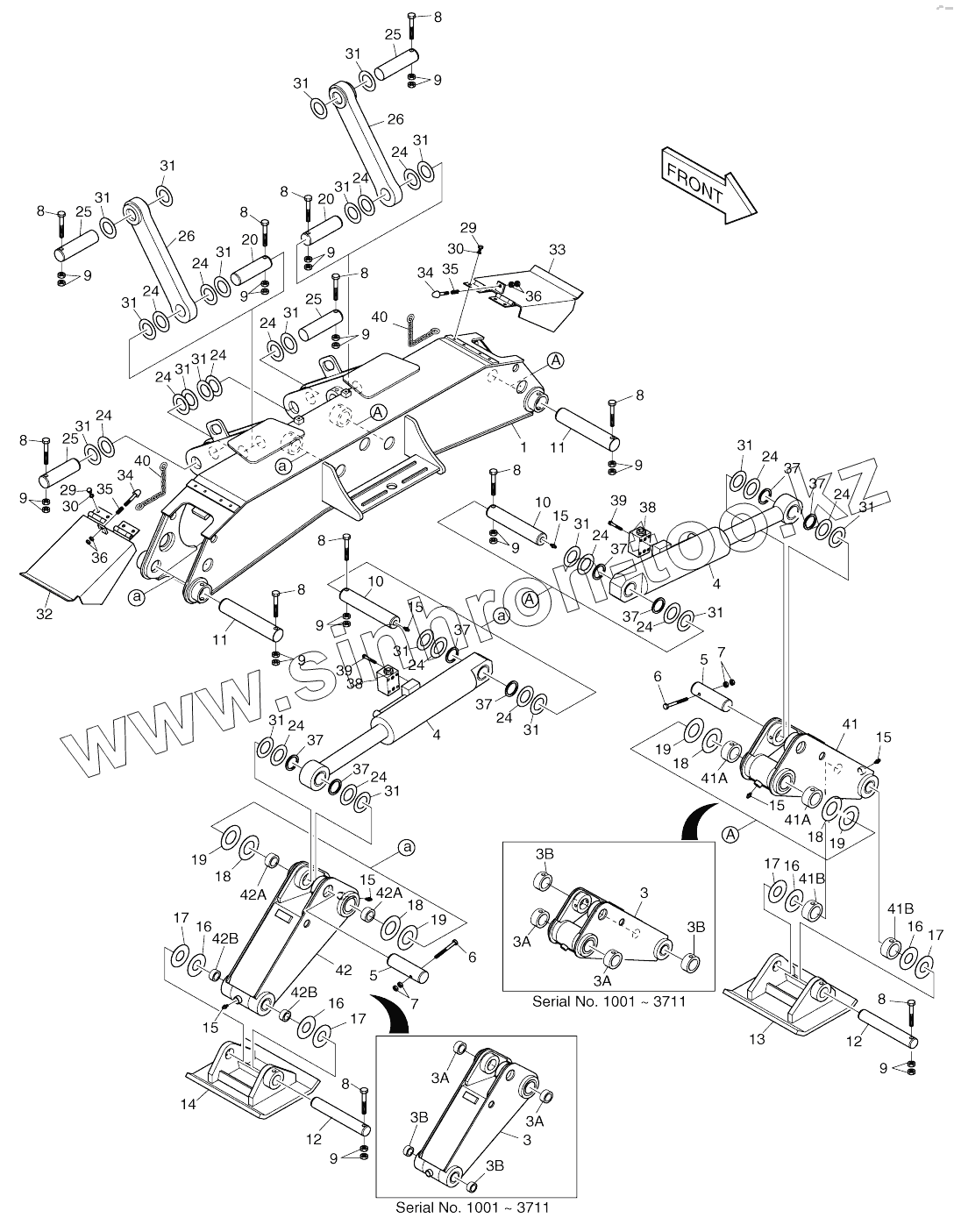

Каталог запасных частей к технике: Doosan SOLAR 140W-V. OUTRIGGER ASSY - FRONT
626-00001C
626-00001C
1
3
3
3
3
3A
3A
3A
3A
3B
3B
3B
3B
4
4
4
4
4
5
5
6
6
7
7
8
8
8
8
8
8
8
8
8
8
8
8
9
9
9
9
9
9
9
9
9
9
9
9
10
10
11
11
12
12
13
14
15
15
15
15
15
15
16
16
16
16
17
17
17
17
18
18
18
18
19
19
19
19
20
20
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
25
25
25
25
26
26
29
29
30
30
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
32
33
34
34
35
35
36
36
37
37
37
37
37
37
37
37
38
38
39
39
40
40
41
41A
41A
41B
41B
42
42A
42A
42B
42B
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 626-00001C | 626-00001C | Outrigger assy-front | |
| 1 | 626-00042A | Frame, outrigger | |
| 1 | 626-00042B | Frame, outrigger | |
| 1 | 626-00042C | Frame, outrigger | |
| 1 | 626-00042E | Frame, outrigger | |
| 3 | 626-00041A | Leg, outrigger | |
| 3 | 626-00041B | Leg, outrigger | |
| 3A | 2408-1018 | Bushing | |
| 3B | 2408-1012 | Bush | |
| 4 | 440-00077B | Cylinder, outrigger | |
| 4 | K1010372 | Cylinder, outrigger | |
| 5 | 2123-4004 | Pin | |
| 6 | S0562353 | Bolt | |
| 7 | S4012733 | NUT M12 | |
| 8 | S0566666 | BOLT M16X2.0X120 | |
| 9 | S4012933 | NUT | |
| 10 | 2123-4005 | Pin | |
| 11 | 123-00026 | Pin | |
| 12 | 2123-4006A | Pin | |
| 13 | 195-01785A | Foot, r.h | |
| 13 | 195-01785B | Foot, r.h | |
| 14 | 195-01786A | Foot, l.h | |
| 14 | 195-01786B | Foot, l.h | |
| 15 | S6710043 | NIPPLE;GREASE(PT1/8) | |
| 16 | 2114-1058D18 | Washer | |
| 17 | 2114-1058D19 | Washer | |
| 18 | 2114-1058D12 | SHIM | |
| 19 | 2114-1058D13 | Shim | |
| 20 | 2123-2312A | Pin | |
| 24 | 2114-1059D7 | Shim | |
| 25 | 2123-1833A | Pin | |
| 26 | 155-00040A | Link | |
| 29 | S0511553 | BOLT M10X1.5X14 | |
| 30 | S5102603 | WASHER;SPRING M10 | |
| 31 | 2114-1059D74 | SHIM | |
| 32 | 2627-1314C | Cover | |
| 33 | 2627-1308C | Cover | |
| 34 | 161-00465 | Stopper | |
| 35 | 129-00145 | Spring, coil | |
| 36 | S4012733 | NUT M12 | |
| 37 | 2180-1106D9 | Seal, dust | |
| 38 | 2426-9023B | Valve, pilot check | |
| 39 | S2212966 | Bolt | |
| 40 | K1014452A | Chain | |
| 41 | K1026232 | Leg, outrigger | |
| 41A | 2408-1018 | Bushing | |
| 41B | 2408-1012 | Bush | |
| 42 | K1026233 | Leg, outrigger | |
| 42A | 2408-1018 | Bushing | |
| 42B | 2408-1012 | Bush |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
