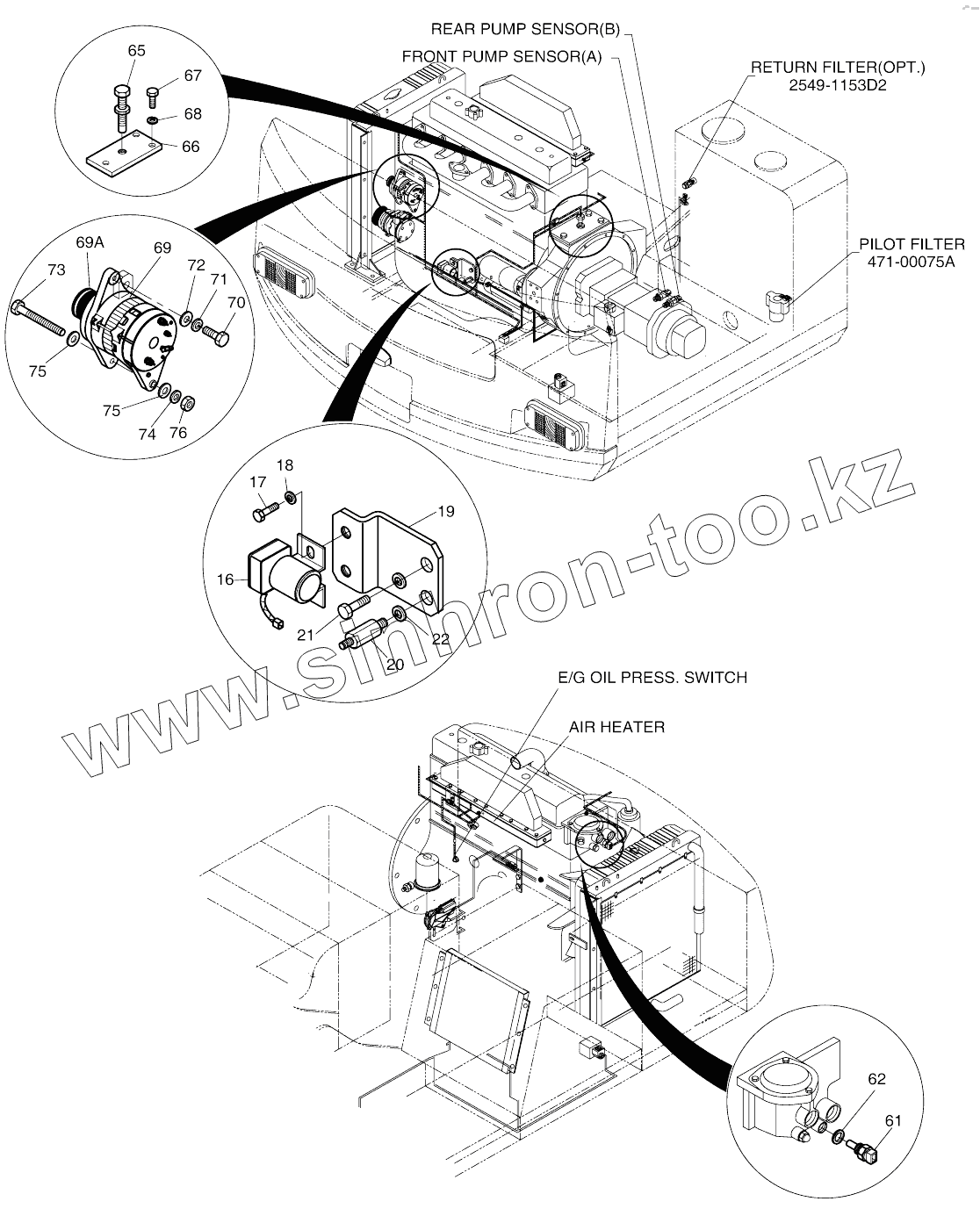

16
17
18
19
20
21
22
61
62
65
66
67
68
69
69A
70
71
72
73
74
75
75
76
Позиция на иллюстрации
Заводской номер детали
Название детали
500-00198A
500-00198A
Electric parts
16
544-00007
RELAY;PREHEAT
17
S0504653
BOLT M6X1.0X12
18
S5102303
WASHER;SPRING M6
19
195-02193
BRACKET;RELAY PL 4.5
20
2120-2235
BOLT;STUD M10X1.25X15/M8
21
S0711853
BOLT M10X1.25X20
22
S5102603
WASHER;SPRING M10
61
2547-9038B
SENSOR;WATER TEMP
62
S8180251
PACKING M16/D22
65
2547-1015
SENSOR;ENGINE SPEED
66
2197-1793
BRACKET;SPEED SENSOR
67
S0512053
BOLT M10X1.5X25
68
S5102603
WASHER;SPRING M10
69
2502-9007B
ALTERNATOR 24V 60A
69A
130707-00030
Pulley, alternator
70
S0760853
BOLT M12X1.25X55
71
S5102703
WASHER;SPRING M10
72
2114-1058D54
WASHER
73
S0562653
BOLT M12X1.75X160
74
S5102703
WASHER;SPRING M10
75
S5010713
WASHER;PLAIN
76
S4012733
NUT M12
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
