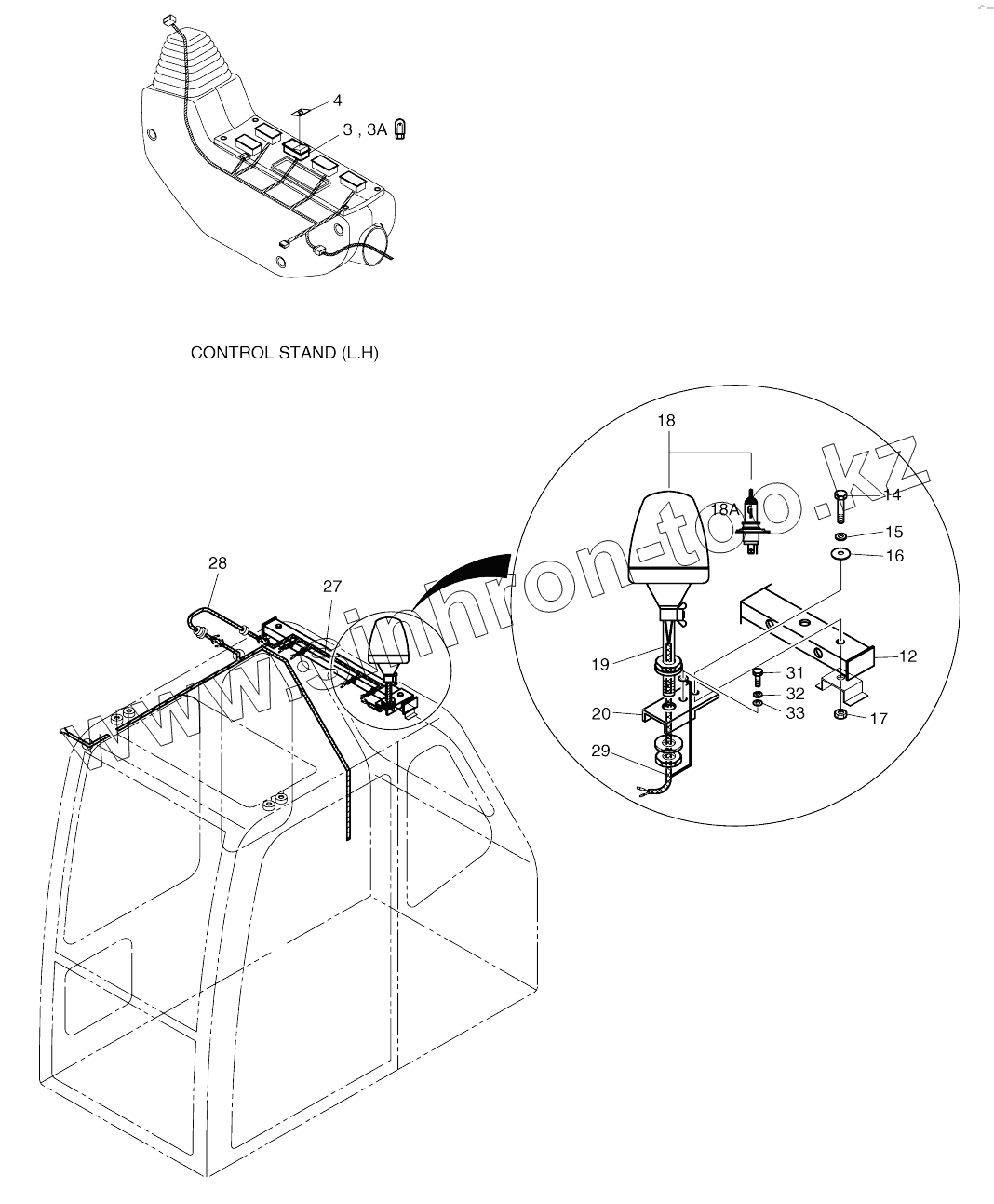

534-00091F4
3
3A
4
12
14
15
16
17
18
18A
19
20
27
28
29
31
32
33
Позиция на иллюстрации
Заводской номер детали
Название детали
534-00091F4
534-00091F4
Beacon assy
3
2549-9098
SWITCH;OVERLOAD WARNING
3A
K9000353
LAMP;PILOT
4
2190-2036D10
INSERT;ROTATING BEACON
12
195-01694
SUPPORT;REAR CABIN LAMP
14
S0556453
BOLT M8X1.25X55
15
S5102503
WASHER;SPRING
16
2114-1898D8
WASHER;PLAIN
17
S4012533
NUT M8X1.25
18
534-00062
LAMP;ROTATING BEACON
18A
515-00013
BULB;HALOGEN H1 24V 70W
19
160-00032
BUSH;MOUNTING
20
195-01692
BRACKET
27
530-00237
HARNESS;REAR CABIN LAMP
28
530-00248
HARNESS;REAR LAMP JOINT
29
530-00238A
HARNESS;BEACON
31
S0504453
BOLT M6X1.0X12
32
S5102303
WASHER;SPRING M6
33
S5010313
WASHER;PLAIN
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
