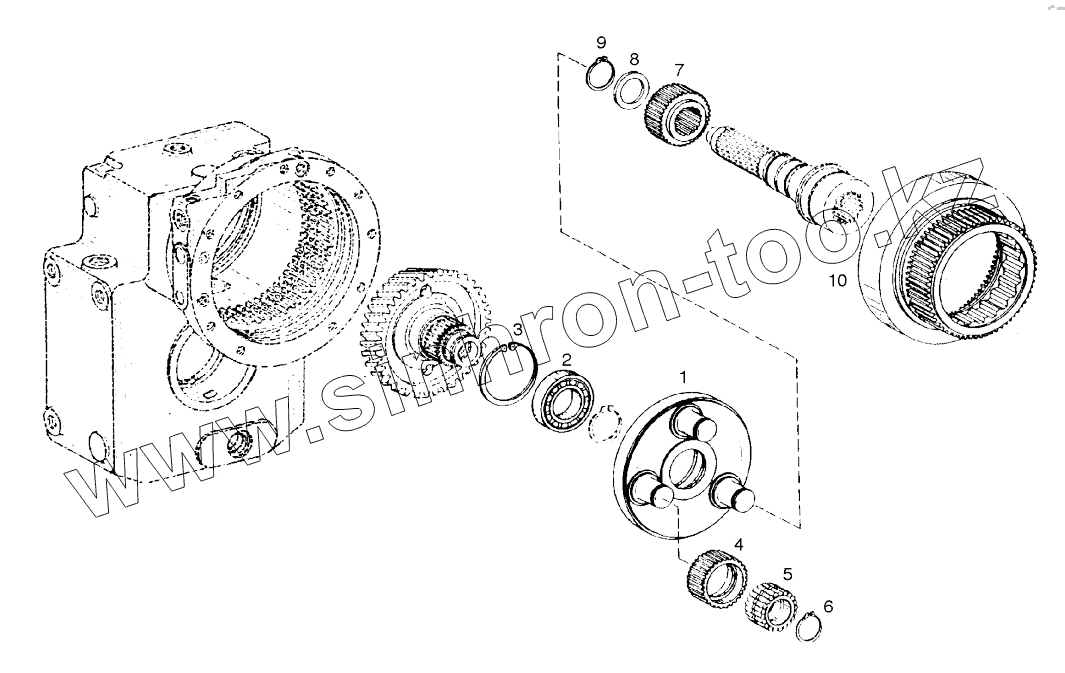

Каталог запасных частей к технике: Doosan SOLAR 130W-V(2). PLANETARY DRIVE-TRANSMISSION

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE (1382-) FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD VALVE MECHANISM OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP AND COOLING FAN INTAKE AND EXHAUST MANIFOLD FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT-TOP (1382-) OVER HAUL GASKET KIT-ALL (1382-) FRAME (1167-) ENGINE MOUNTING AIR CLEANER ASSY AIR CLEANER MUFFLER RADIATOR AND OIL COOLER RESERVE TANK PUMP ASSY (1-3227) PUMP ASSY (3228-) SWING DEVICE (1157-) FUEL TANK OIL TANK (1-3227) OIL TANK (3228-) ENGINE CONTROL ASSY LEVER ASSY-ENGINE SUB MAIN PIPING (1) (1-3227) MAIN PIPING (1-1) (3228-) MAIN PIPING (2) MAIN PIPING (3) MAIN PIPING (4) MAIN PIPING (5) OIL COOLER PIPING (1) (1382-3227) OIL COOLER PIPING (1-1) (3228-) OIL COOLER PIPING (2) OIL COOLER PIPING (3) STEERING PIPING (1382-) PILOT PIPING (1) (1382-3227) PILOT PIPING (1-1) (3228-) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) (1-2696) PILOT PIPING (7-1) (2697-) PILOT PIPING (8) PILOT PIPING (9) PILOT PIPING (10) PILOT PIPING (11) PILOT PIPING (12) BRAKE PIPING (1) BRAKE PIPING (2) STEERING WHEEL ASSY (1305-) STEERING COLUMN ASSY (1305-) CABIN ASSY CABIN (1) CABIN (2) CABIN (3) CABIN (4) CABIN (5) CONTROL STAND-L.H. CONTROL STAND-R.H. SEAT AND ELECTRIC BOX SEAT MOUNTING-EXCEPT EUROPE (1454-) SEAT MOUNTING-EUROPE AND U.S.A (1454-) SEAT-EUROPE AND U.S.A SEAT-EXCEPT EUROPE AND U.S.A (751-) DUCT COVER ASSY HEATER COVER ASSY ELECTRIC BOX ASSY ELECTRIC BOX ASSY-ELECTRIC PARTS ELECTRIC PARTS (1)-STAND R.H. ELECTRIC PARTS (2)-STAND L.H. ELECTRIC PARTS (3)-CABIN ELECTRIC PARTS (4)-CONSOLE BOX ELECTRIC PARTS (5)-BATTERY ELECTRIC PARTS (6)-ENGINE ALTERNATOR (947-2390) ELECTRIC PARTS (7)-RELATED PARTS ELECTRIC WIRING (1)-RELATED PARTS ELECTRIC WIRING (2)-ENGINE AIR CONDITIONER (1) AIR CONDITIONER (2)-AIRCON UNIT HEATER PIPING SUPPORT (1) (608-) SUPPORT (2) (608-) COVER (1) COVER (2) COVER (3) COVER (4) (1-2199) COVER (4) (2200-3161) COVER (4) (3162-) COVER (5) BAFFLE ASSY (1) (608-) BAFFLE ASSY (2) (608-) ACOUSTIC FOAM UNDER COVER LUBRICATOR PIPING POWER TRAIN (1)-FRONT AXLE (1147-) POWER TRAIN (2)-REAR AXLE (1147-) POWER TRAIN (3)-SHAFTAND C/J (1147-) CHASSIS COMPONENTS CHASSIS COMPONENTS-FOR EXPORT (1373-) DOZER AND OUTRIGGER PIPING (608-) BRAKE PIPING (1)-FRONT BRAKE PIPING (2)-REAR STEER PIPING (1147-) CHOCKING PIPING (1147-) PROPELLING PIPING (1)-REMOTE T/M (1147-) PROPELLING PIPING (2)-GEARSHIFT.TEST PORT (1147-) PROPELLING PIPING (3)-MAKE-UP (1147-) PROPELLING PIPING (4)-REMOTE T/M (1147-) DOZER BLADE BLADE PIPING CHASSIS FRAME BOOM-4.3M ARM-2.1M BUCKET-0.5M3 FRONT PIPING FRONT LUBRICATOR MAIN PUMP (1382-3227) MAIN PUMP (3228-) REGULATOR (1382-3227) REGULATOR-FRONT (3228-) REGULATOR COVER (1382-3227) REGULATOR-REAR (3228-) CONTROL ASSY (1382-3227) PTO ASSY (3228-) PROPORTINAL VALVE ASSY (1-3227) GEAR PUMP (3228-) PROPORTIONAL VALVE (1-3227) GEAR PUMP (2 PORT) (3228-] ROTARY GROUP-L.H. (1382-3227) ROTARY GROUP-R.H. (1382-3227) PILOT GEAR PUMP (1-3227) RELIEF VALVE (1-3227) PTO PUMP (1382-3227) BRAKE PUMP (1) (1382-3227) STEERING PUMP (1) (1382-3227) CONTROL SPRING (1-3227) SWING MOTOR (701-) SWING REDUCTION GEAR (701-) TRAVELLING MOTOR PISTON MOTOR ROTARY GROUP REGULATOR CONTROL PARTS COUNTER BALANCE VALVE CONTROL VALVE (1225-) STEERING VALVE (1305-2332) STEERING VALVE (2333-) PILOT AND T/M SUPPLY VALVE REMOTE CONTROL VALVE (1-1798) REMOTE CONTROL VALVE (1799-) REMOCON VALVE-DOZER OUTRIGGER FOOT BRAKE VALVE PILOT CHECK VALVE BRAKE SUPPLY VALVE SOLENOID VALVE BREAKER PACKAGE VALVE BRAKE FILTER (868-) BOOM CYLINDER-L.H (601-2050) BOOM CYLINDER-L.H (2051-) BOOM CYLINDER-R.H (601-2050) BOOM CYLINDER-R.H (2051-) ARM CYLINDER ARM CYLINDER-OPT. (2.5M 3.0M ARM) BUCKET CYLINDER DOZER CYLINDER-L.H. DOZER CYLINDER-R.H CHOCKING CYLINDER OUTRIGGER CYLINDER (1295-) BOOM CYLINDER-ARTI.BOOM (L.H) (1-2599) BOOM CYLINDER-ARTI.BOOM (L.H) (2600-) BOOM CYLINDER-ARTI.BOOM (R.H) (1-2599) BOOM CYLINDER-ARTI.BOOM (R.H) (2600-) ARTI.BOOM CYLINDER (1-2599) ARTI.BOOM CYLINDER (2600-) ARTI.BOOM CYLINDER-LOCK VALVE ARM CYLINDER-ARTI.BOOM BUCKET CYLINDER-ARTI.BOOM CENTER JOINT-STD. (1250-) INPUT SHAFT-FRONT AXLE DIFFERENTIAL GEAR-FRONT AXLE BODY-FRONT AXLE STEERING KNUCKLE-FRONT AXLE HUB-FRONT AXLE STEERING CYLINDER-FRONT AXLE (1-2423) STEERING CYLINDER-FRONT AXLE (2424-) UNIVERSAL JOINT-FRONT AXLE HOUSING-TRANSMISSION INPUT SHAFT-TRANSMISSION HOUSING-TRANSMISSION OIL PIPE-TRANSMISSION COUPLING-TRANSMISSION M-DISC BRAKE-TRANSMISSION PLANETARY DRIVE-TRANSMISSION DISCONNECTION DEVICE-TRANSMISSION SPUR GEAR DRIVE-TRANSMISSION GEAR SHIFT SENSOR-TRANSMISSION OUTPUT SHAFT (1)-TRANSMISSION (1147-) INPUT-REAR AXLE (1147-) DIFFERENTIAL-REAR AXLE AXLE CASING-REAR AXLE (1147-) HUB CARRIER-REAR AXLE HUB-REAR AXLE CONTROL VALVE-ARTI.BOOM PEDAL VALVE-ARTI.BOOM (1665-) BOOM CYL. (L.H)-ARTI. BOOM FOR LOCK VALVE (1-2599) BOOM CYL. (L.H)-ARTI. BOOM FOR LOCK VALVE (2600-) BOOM CYL. (R.H)-ARTI. BOOM FOR LOCK VALVE (1-2599) BOOM CYL. (R.H)-ARTI. BOOM FOR LOCK VALVE (2600-) ARM CYLINDER-ARTI. BOOM FOR LOCK VALVE (1-2599) BOOM CYL. (L.H)-BOOM 4.3M FOR LOCK VALVE (1-2500) BOOM CYL. (L.H)-BOOM 4.3M FOR LOCK VALVE (2501-) BOOM CYL. (R.H)-BOOM 4.3M FOR LOCK VALVE (1-2500) BOOM CYL. (R.H)-BOOM 4.3M FOR LOCK VALVE (2501-) ARM CYLINDER-BOOM 4.3M FOR LOCK VALVE ARM CYLINDER-BOOM 4.6M FOR LOCK VALVE BOOM CYLINDER (L.H)-4.6M BOOM CYLINDER (R.H)-4.6M BOOM CYL. (L.H)-BOOM 4.6M FOR FOR LOCK VALVE BOOM CYL. (R.H)-BOOM 4.6M FOR FOR LOCK VALVE TRAVEL MOTOR (1296-3079) PISTON MOTOR (1296-3079) ROTARY GROUP (1296-3079) REGULATOR (1296-3079) CONTROL PARTS (1296-3079) COUNTER BALANCE VALVE (1296-3079) OPTION VALVE TOOLS SPARE PARTS FRONT OUTRIGGER-WELDING TYPE REAR OUTRIGGER FRONT OUTRIGGER PIPING (1)-BOLTING TYPE (1147-) FRONT OUTRIGGER PIPING (2)-BOLTING TYPE (1147-) FRONT OUTRIGGER PIPING (3)-BOLTING TYPE (1147-) FRONT OUTRIGGER PIPING (4)-BOLTING TYPE (1147-) REAR OUTRIGGER PIPING CHASSIS FRAME-FRONT OUTRIGGER (WELDING) CHASSIS FRAME-FRONT DOZER (BOLTING TYPE) (1296-) FRONT BLADE-BOLTING TYPE FRONT DOZER PIPING (1)-BOLTING TYPE (1147-) FRONT DOZER PIPING (2)-BOLTING TYPE (1147-) FRONT DOZER PIPING (3)-BOLTING TYPE (1147-) FRONT DOZER PIPING (4)-BOLTING TYPE (1147-) CHASSIS FRAME-F/ OUTRIGGER BOLTING TYPE (1296-) CHASSIS FRAME-REAR DOZER OUTRIGGER CHASSIS FRAME-BOLT-ON. CRADLE AND REMOTE (1147-) OPTION ASSY-GERMAN HOMOLOGATION (1296-) TIRE-10.0X20X14PR SINGLE TIRE-18R19.5X14PR (2700-) ELECTRIC BOX-FOR GERMANY ELECTRIC PARTS-FOR GERMANY STEREO ASSY-FOR JAPAN (2510-) LAMP-FOR GERMANY ARM LAMP HARNESS-FOR GERMANY FUEL FILLER PUMP ASSY AIR CLEANER-PRE CLEANER CABIN LAMP-OPT. ROTATING BEACON-OPT. SWING ALARM-OPT. PILOT PIPING-BREAKER (1-3227) PILOT PIPING-BREAKER (3228-) MAIN PIPING-ONE AND TWO WAY NAME PLATE-BREAKER BOOM PIPING-BOOM 4.3M (ONE WAY) ARM PIPING-ARM 2.1M (ONE WAY) ARM PIPING-ARM 2.25M (ONE WAY) BUCKET-0.25 SIDE PIN TYPE BUCKET-0.35 SIDE PIN TYPE BUCKET-0.45 SIDE PIN TYPE BUCKET ASSY-0.45 VERTICAL PIN (1225-) BUCKET-0.55 SIDE PIN TYPE BUCKET-0.65 SIDE PIN TYPE ARM-2.25M FRONT PIPING-BOOM 4.3M+ARM-2.25M FRONT PIPING-BOOM 4.6M+ARM-2.25M MAIN FRAME-ARTI.BOOM ARTICULATED UPPER BOOM-2.8M (1-2599) ARM-1.96M-ARTI.BOOM (1246-2599) ARM-2.5M-ARTI.BOOM (1246-2599) MAIN PIPING-ARTI.BOOM (1-2599) PILOT PIPING-ARTI.BOOM (1-2599) FRONT PIPING (1)-ARTI.BOOM (1-2599) FRONT PIPING (2)-ARTI.BOOM (1-2599) FRONT ONE-WAY PIPING-ARTI.BOOM (1269-2599) FLOOR ASSY-ARTI.BOOM (2441-) FLOOR ASSY-ARTI.BOOM AND TILTING (2441-) STEREO ASSY-FOR JAPAN ENGINE COVER-EUROPE BOOM-4.6M ARM-2.5M FRONT PIPING-BOOM 4.6M+ARM-2.5M FRONT PIPING-BOOM 4.3M+ARM-2.5M ARM-3.0M FRONT PIPING-BOOM 4.6M+ARM-3.0M FRONT PIPING-BOOM 4.3M+ARM-3.0M ARM-1.9M FRONT PIPING-BOOM 4.3M+ARM-1.9M FRONT PIPING-BOOM 4.6M+ARM-2.1M LUBRICATION PIPING-BOOM4.6M (2304-) BUCKET-0.38 (30")-SIDE PIN BUCKET-0.38 (30")-VERTICAL PIN BUCKET-0.44 (33")-SIDE PIN BUCKET-0.44 (33")-VERTICAL PIN BUCKET-0.48 (36")-SIDE PIN BUCKET-0.48 (36")-VERTICAL PIN NOISE FILTER ASSY-EUROPE (682-) TROPICAL COVER LOCK VALVE PIPING-ARTI.BOOM (1-2599) LOCK VALVE PIPING-BOOM 4.3M (1-2050) LOCK VALVE PIPING-BOOM 4.3M (2051-) BOOM PIPING-BOOM 4.6M (ONE WAY) ARM PIPING-BOOM 4.6M+ARM-1.9M (ONE WAY) ARM PIPING-BOOM 4.6M+ARM-2.5M (ONE WAY) ARM PIPING-BOOM 4.6M+ARM-3.0M (ONE WAY) LOCK VALVE PIPING-BOOM 4.6M DOUBLE FUEL FILTER CABIN LAMP RELAY-REAR CABIN LAMP (1410-) ALTERNATOR-FOR BEACON LAMP (1410-) CABIN ASSY-WINDOW GUARD (1281-) SUN VISOR ASSY (1410-) SUN ROOF ASSY (1410-) REMOCON VALVE MOUNT-3 SWITCH (1410-) REMOCON VALVE MOUNT-5 SWITCH (1410-) RETURN FILTER SWITCH ASSY (1620-) COUNTER WEIGHT (1373-) ARTI. BOOM-UPPER BOOM 3.3M+ARM-2.5M (1-2599) FRONT PIPING (1)-ARTI. BOOM (1-2599) FRONT PIPING (2)-ARTI. BOOM (1-2599) FRONT PIPING (3)-ONE WAY (ARTI. BOOM) (1-2599) LOCK VALVE PIPING-UPPER BOOM (1-2599) ARM-2.25M-ARTI.BOOM (1-2599) MAIN PIPING-ROTATION AND TILTING (1-3086) MAIN PIPING-ROTATION AND TILTING (3087-) PILOT PIPING-ROTATION AND TILTING BOOM PIPING-ROTATION AND TILTING (1-3086) BOOM PIPING (4.6M)-ROTATION AND TILTING (3087-) BOOM PIPING (4.3M)-ROTATION AND TILTING (3087-) ARM PIPING (2.5M)-ROTATION AND TILTING (1-3086) ARM PIPING (2.5M)-ROTATION AND TILTING (3087-) FRONT PIPING (BOOM 4.3M)-KOREA FRONT PIPING (BOOM 4.6M)-KOREA PILOT PIPING-P3C ARM PIPING (2.1M)-ROTATION AND TILTING (3087-) ARM PIPING (3.0M)-ROTATION AND TILTING (3087-) BOOM-ARTICULATED (2600-) MAIN PIPING-ARTI. BOOM (2600-) PILOT PIPING-ARTI. BOOM (2600-) FRONT PIPING-ARTI. BOOM (2600-) FRONT PIPING-2.1M ARM-ARTI. BOOM (2600-) FRONT PIPING-2.5M ARM-ARTI. BOOM (2600-) LUBRICATION PIPING-ARTI. BOOM (2600-) LOCK VALVE PIPING-ARTI.BOOM (2600-) STAY ASSY-ARTI. BOOM (3162-) MAIN PIPING-ARTI. BOOM-2 WAY (2600-) FRONT PIPING-ARTI. BOOM-1 (2600-)

1

2

3

4

5

6

7

8

9

10

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4143315026		Carrier, planet
2	635331216		Bearing, ball
2	750116347		Bearing, ball
3	630502032		Ring, retaining
4	4143315024		Gear, planet
5	735455262		Bearing, roller
6	630501248		Ring, retaining
7	4143315028		Gear, sun
8	730104236		Washer, optional
8	730104237		Washer, optional
8	730108059		Washer, optional
8	730108058		Washer, optional
8	730104241		Washer, optional
8	730104240		Washer, optional
8	730104239		Washer, optional
8	730104238		Washer, optional
8	730104235		Washer, optional
8	730104234		Washer, optional
9	730501438		Ring, retaining
10	4143315036		Gear, ring

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
