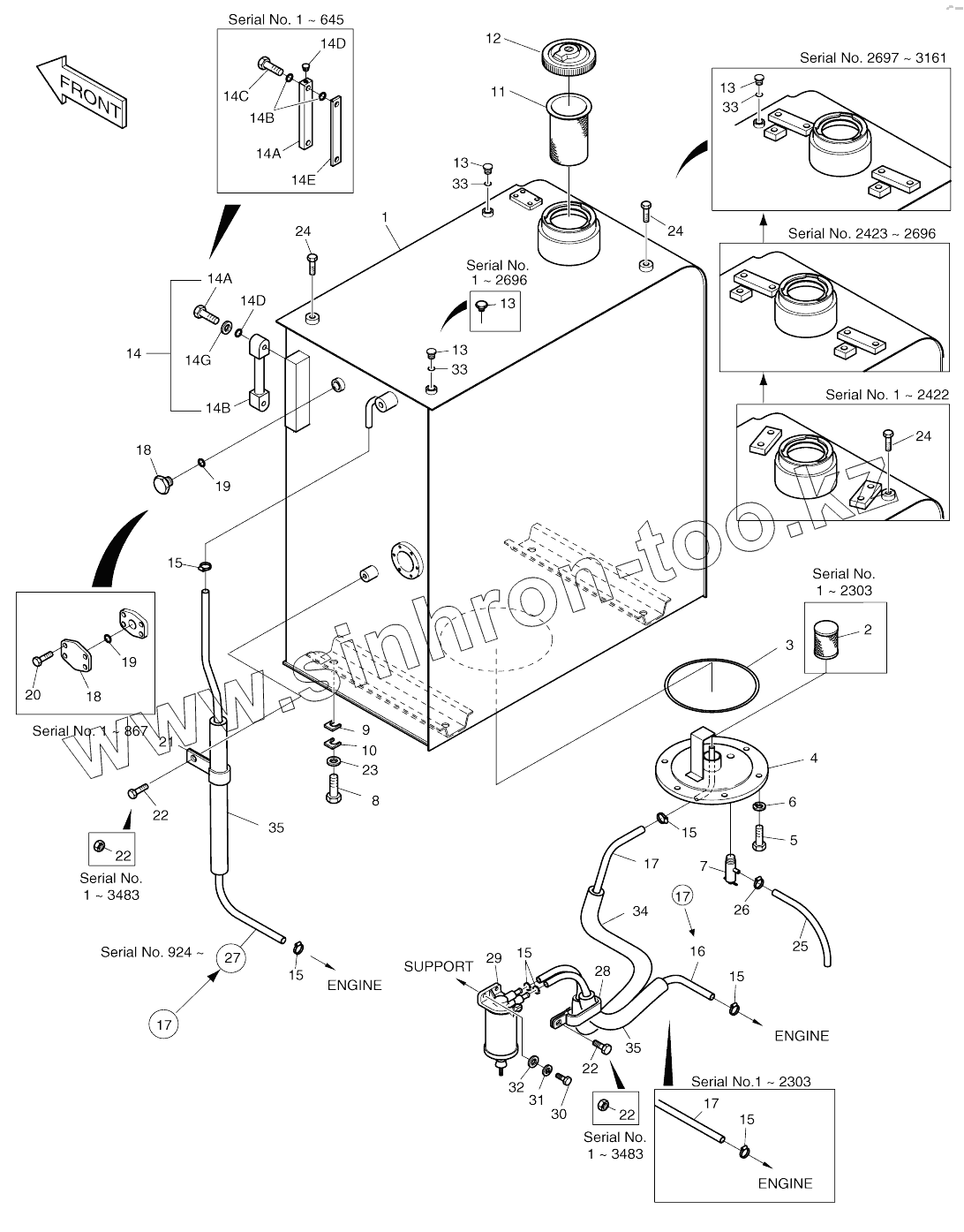

Каталог запасных частей к технике: Doosan SOLAR 130W-V(2). FUEL TANK
17
17
17
17
17
17
22
22
22
22
22
22
22
22
22
22
21
20
19
19
19
19
18
18
18
18
22
22
22
22
22
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
16
15
15
15
15
15
15
15
15
15
15
15
15
15
14G
28
35
35
34
33
33
33
32
31
30
29
14D
14D
14D
26
25
24
24
24
24
24
24
24
24
24
24
23
7
6
5
4
3
2
8
1
14
14B
14B
14B
14A
14A
14A
14
14E
14D
14D
14D
14C
14B
14B
14B
14A
14A
14A
2470-2068A
13
13
13
13
13
13
13
13
13
12
11
10
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 17 | 2185-1247D34 | Hose | |
| 22 | S4012533 | NUT M8X1.25 | |
| 22 | S4012533 | NUT M8X1.25 | |
| 21 | 2124-1059D2 | Clip | |
| 20 | S2212261 | Socket-head bolt | |
| 19 | S8000231 | O-RING | |
| 19 | 2180-1026D2 | O-RING | |
| 18 | 2181-1950D7 | PLUG PF1/2 | |
| 18 | 2181-2157D1 | Flange,cover | |
| 22 | 120-00276 | BOLT M8X1.25X12 | |
| 17 | 2185-1247D25 | HOSE;FUEL 2100L | |
| 17 | 2185-1247D25 | HOSE;FUEL 2100L | |
| 17 | 2185-1247D1 | Hose | |
| 17 | 2185-1247D26 | HOSE;FUEL 3500L | |
| 16 | 2185-1247D2 | Hose | |
| 15 | S8450012 | CLAMP;HOSE | |
| 15 | S8450012 | CLAMP;HOSE | |
| 14G | S5010613 | WASHER;PLAIN | |
| 28 | 2124-1509D4 | CLIP | |
| 35 | 161-00559 | Sponge | |
| 34 | 161-00558 | Sponge | |
| 33 | S8000111 | O-RING | |
| 32 | 2114-1058D52 | WASHER | |
| 31 | S5102303 | WASHER;SPRING M6 | |
| 30 | S0552953 | Bolt | |
| 29 | 471-00082 | SEPERATOR;WATER | |
| 28 | 2124-1509D7 | Clip, hose | |
| 14D | S8002701 | O-ring | |
| 27 | 2185-1247D33 | Hose 2620l | |
| 26 | S8450006 | CLAMP;HOSE | |
| 25 | 2184-9089 | Hose, vinyl | |
| 24 | S0514653 | BOLT M12X1.75X16 | |
| 24 | S0514653 | BOLT M12X1.75X16 | |
| 24 | S0514653 | BOLT M12X1.75X16 | |
| 23 | 2114-1816 | WASHER;HARD | |
| 1 | 2470-2067M | Tank, fuel | |
| 7 | 2186-9001 | Cock | |
| 6 | S5102603 | WASHER;SPRING M10 | |
| 5 | S0512053 | BOLT M10X1.5X25 | |
| 4 | 2473-1033B | Cover | |
| 3 | S8011650 | O-RING | |
| 2 | 2471-1004B | Filter | |
| 1 | 2470-2067P | Tank, fuel | |
| 1 | 2470-2067N | Tank, fuel | |
| 8 | S0521351 | Bolt | |
| 1 | 2470-2067L | Tank, fuel | |
| 1 | 2470-2067K | Tank, fuel | |
| 1 | 2470-2067J | Tank, fuel | |
| 1 | 2470-2067G | Tank, fuel | |
| 1 | 2470-2067E | Tank, fuel | |
| 1 | 2470-2067C | Tank, fuel | |
| 1 | 2470-2067B | Tank, fuel | |
| 2470-2068B | 2470-2068B | Fuel tank assy | |
| 14 | 2119-1061 | Gauge, level | |
| 14B | 2441-1025 | Block | |
| 14A | 2120-1266 | Bolt | |
| 14 | 2119-1066 | GAUGE;LEVEL | |
| 14E | 2166-1001 | Tape | |
| 14D | 2181-1219 | Plug | |
| 14C | 2120-1063 | Bolt | |
| 14B | S8000110 | O-ring | |
| 14A | 2412-1046 | Plate | |
| 2470-2068A | 2470-2068A | Fuel tank assy | |
| 13 | 2181-1950D1 | PLUG | |
| 13 | 2181-1116D2 | PLUG | |
| 12 | 2188-9008 | CAP;FUEL | |
| 12 | 2188-9004 | Cap | |
| 11 | 2471-9046 | FILTER;FUEL | |
| 10 | 2114-1814 | SHIM D20X1.6T | |
| 9 | 2114-1813 | SHIM D20X0.8T |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
