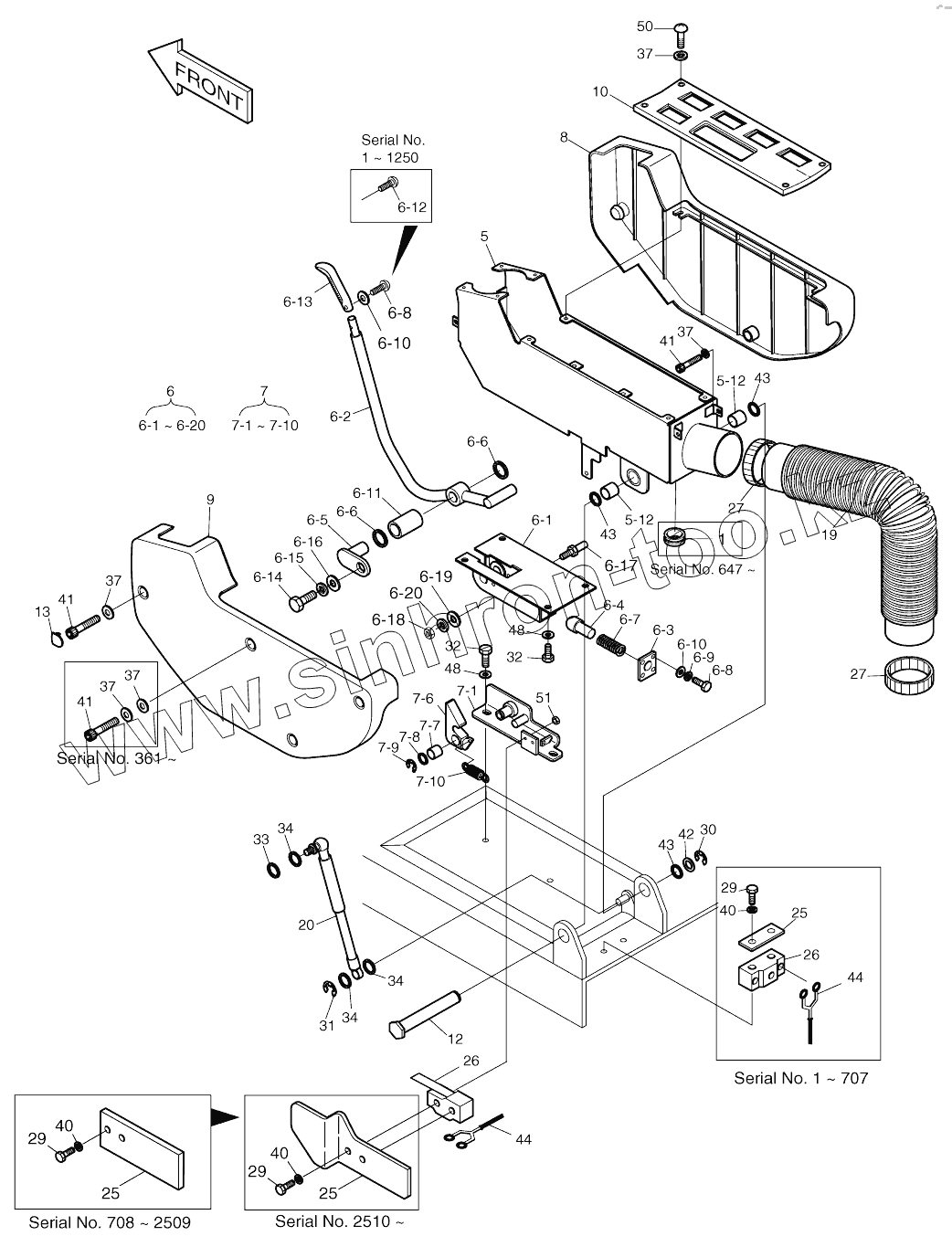

Каталог запасных частей к технике: Doosan SOLAR 130W-V(2). CONTROL STAND-L.H.
25
25
25
25
25
25
25
25
25
25
20
19
13
12
10
9
25
25
25
8
7-10
7-10
7-9
7-8
7-7
7-6
7-1
7-1
37
37
37
37
37
51
50
48
48
44
44
44
44
44
43
43
43
42
41
41
41
41
41
41
41
41
40
40
40
40
40
40
34
34
34
33
32
32
31
30
29
29
29
29
29
29
27
27
26
26
26
26
6
6-6
6-6
6-5
6-4
6-3
6-2
6-1
6-1
6-1
6-1
6-1
6-1
6-7
5-12
5-12
5
1
7
6-20
6-20
6-19
6-18
6-17
6-16
6-15
6-14
6-13
6-12
6-11
6-10
6-10
6-10
6-10
6-9
6-8
6-8
6-8
6-8
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 8 | 2125-1093A | Stand case-a | |
| 25 | 2627-1909A | Plate | |
| 25 | 2627-1909 | Plate | |
| 25 | 2191-3314 | Plate | |
| 20 | 2440-9258 | Spring, gas | |
| 19 | 2158-1021 | PROTECTOR | |
| 13 | 2621-3775 | Hole cover, stand | |
| 12 | 2123-2240 | PIN | |
| 10 | 2891-1320 | Plate, switch | |
| 9 | 2125-1094B | Stand case-b | |
| 9 | 2125-1094A | Stand case-b | |
| 9 | 2125-1094 | Stand case-b | |
| 25 | 2627-1909B | Plate | |
| 8 | 2125-1093 | Stand case-a | |
| 7-10 | 2129-1433A | Spring | |
| 7-9 | S6541200 | RING;RETAINER | |
| 7-8 | 2114-1059D200 | Shim | |
| 7-7 | 2110-1184D29 | BUSH;DU | |
| 7-6 | 2133-1989B | Lever | |
| 7-6 | 2133-1989A | Lever | |
| 7-1 | PLATE | Plate | |
| 7 | 2197-1634E | Bracket, lower assy | |
| 7 | 2197-1634C | Bracket, lower assy | |
| 37 | 2114-1898D4 | WASHER;PLAIN M5 | |
| 51 | S4012103 | Nut | |
| 50 | 2120-2166D8 | SCREW M5X0.8X14 | |
| 48 | 2114-1898D2 | WASHER M8 | |
| 44 | 2530-1782 | Harness, micro switch | |
| 44 | 2530-1438 | Harness, micro switch | |
| 43 | 2114-1059D31 | SHIM | |
| 42 | 2114-4129 | WASHER | |
| 41 | S2203061 | Bolt, socket | |
| 41 | S2203061 | Bolt, socket | |
| 40 | 2114-1898D13 | Washer | |
| 40 | S5000113 | WASHER;PLAIN M4 | |
| 7 | 2197-1634B | Bracket, lower assy | |
| 34 | S5020513 | Washer | |
| 33 | S5102503 | WASHER;SPRING | |
| 32 | 2120-2166D5 | BOLT M8X1.25X20 | |
| 31 | S6540500 | Ring, retaining | |
| 30 | S6541900 | RING;RETAINER | |
| 29 | 2120-2166D21 | Bolt | |
| 29 | S0151313 | Bolt | |
| 27 | S8450066 | CLAMP;HOSE | |
| 26 | 2549-9139 | Switch, micro | |
| 26 | 2549-1134 | Switch, micro | |
| 6 | 2133-2027 | Safety lever assy | |
| 6-6 | 2114-1059D37 | SHIM | |
| 6-5 | 2123-2279A | Pin | |
| 6-5 | 2123-2279 | Pin | |
| 6-4 | 2123-2146A | Pin | |
| 6-3 | 2116-1485 | Plate | |
| 6-2 | 2133-2003A | Lever | |
| 6-2 | 2133-2003 | Lever | |
| 6-1 | 2116-1524A | Plate | |
| 6-1 | 2116-1524 | Plate | |
| 6 | 2133-2027B | Safety lever assy | |
| 6 | 2133-2027A | Safety lever assy | |
| 6-7 | 2129-1432 | SPRING | |
| 5-12 | 2110-1184D37 | BUSH;DU | |
| 5 | 2197-1630C | BRACKET;STAND(L.H) | |
| 5 | 2197-1630B | Bracket | |
| 5 | 2197-1630A | Bracket | |
| 5 | 2197-1630 | Bracket | |
| 1 | 2160-1004D9 | Grommet | |
| 2197-1825F1K | 2197-1825F1K | Control stand assy | |
| 2197-1825F1H | 2197-1825F1H | Control stand assy | |
| 2197-1825F1G | 2197-1825F1G | Control stand assy | |
| 2197-1825F1E | 2197-1825F1E | Control stand assy | |
| 6-14 | 2120-2166D31 | Bolt | |
| 7 | 2197-1634A | Bracket, lower assy | |
| 6-20 | 2114-2031D4 | WASHER;SPRING M8 | |
| 6-19 | 2114-1898D14 | WASHER | |
| 6-18 | 2121-1311D2 | NUT M8X1.25 | |
| 6-17 | 116-00003A | Pin | |
| 6-17 | 116-00003 | Pin | |
| 6-16 | 2114-1898D5 | WASHER;PLAIN M6 | |
| 6-16 | S5000213 | WASHER;PLAIN | |
| 6-15 | 2114-2031D2 | Washer, spring | |
| 6-15 | S5102203 | WASHER SPRING M5 | |
| 2197-1825F1C | 2197-1825F1C | Control stand assy | |
| 6-14 | S3458713 | Screw | |
| 6-13 | 2132-1132A | GRIP | |
| 6-13 | 2132-1132 | Grip | |
| 6-12 | S3452583 | Screw | |
| 6-11 | 2110-1184D29 | BUSH;DU | |
| 6-10 | S5000113 | WASHER;PLAIN M4 | |
| 6-10 | S5000113 | WASHER;PLAIN M4 | |
| 6-9 | S5102103 | WASHER;SPRING M4 | |
| 6-8 | S3450583 | SCREW M4X0.7X12 | |
| 6-8 | S3450583 | SCREW M4X0.7X12 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
